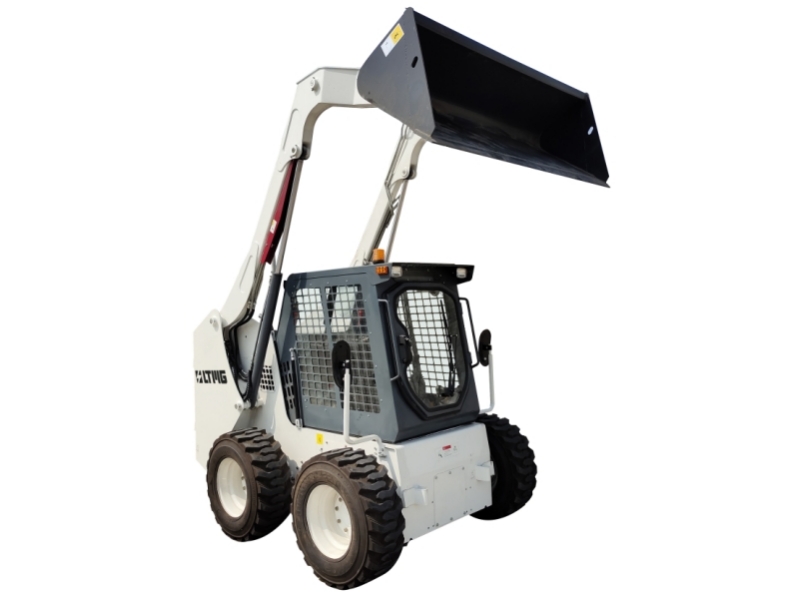

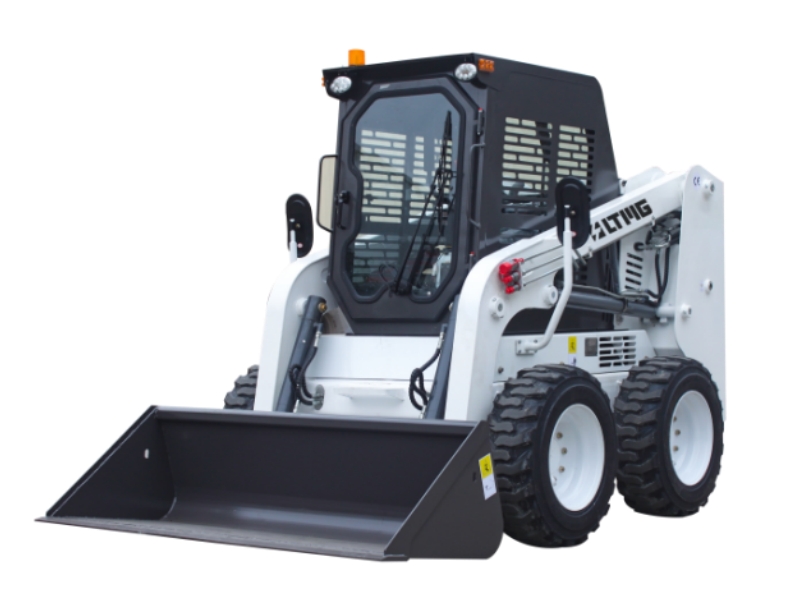

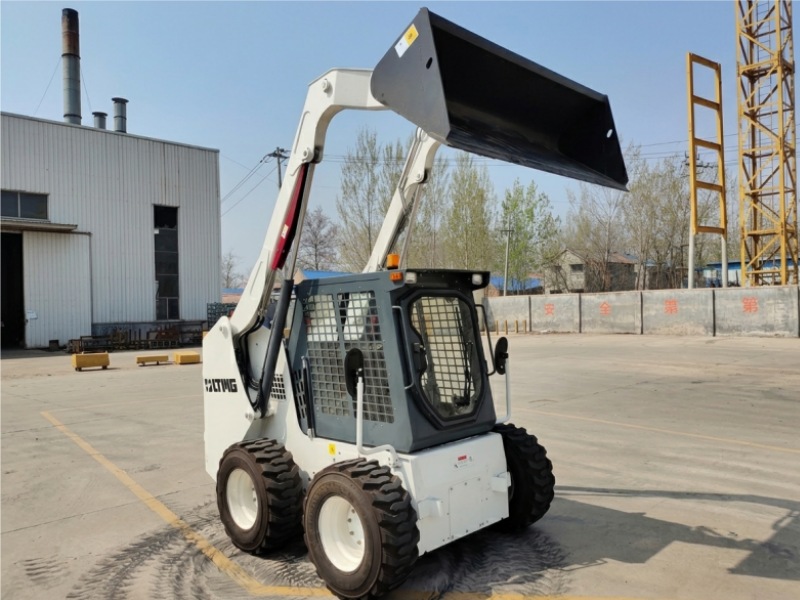

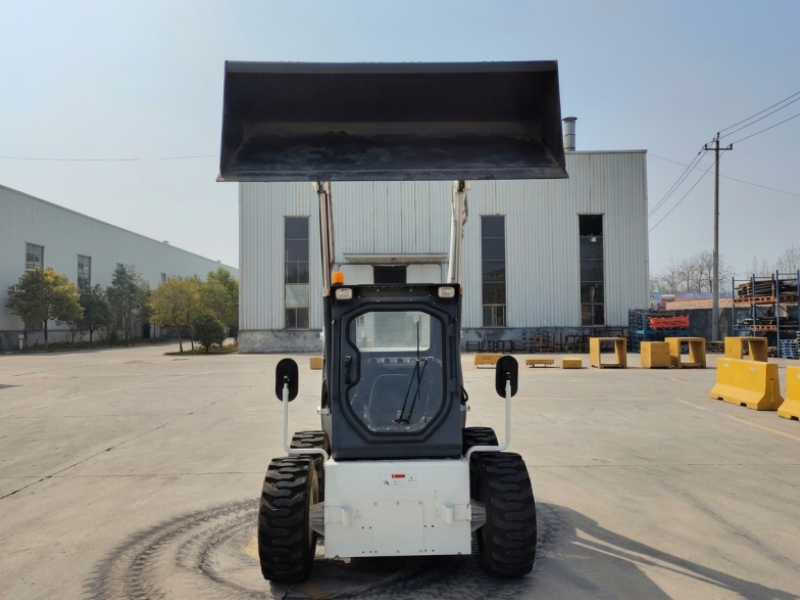

1100kg Skid Steer Loader with High Flow Hydraulics

1100kg Skid Steer Loader with High Flow Hydraulics

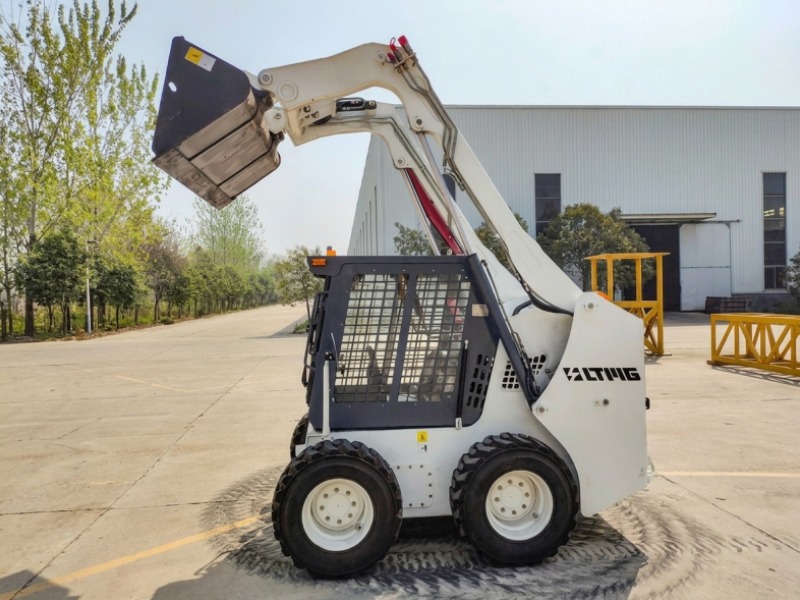

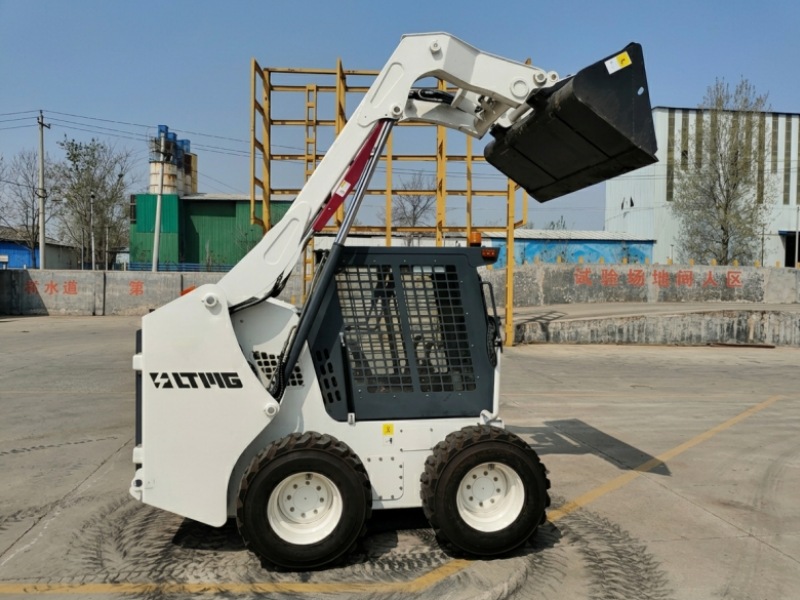

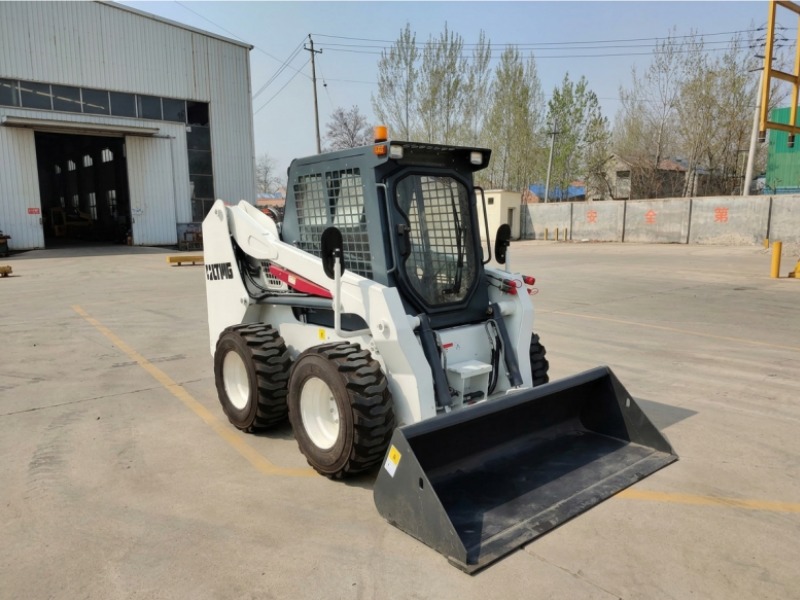

The LT75 1100kg skid steer loader is a compact and versatile machine designed for efficient operation in various job sites. It delivers strong power with a 65kW engine and high flow hydraulic system, ensuring reliable performance and flexible attachment use.

Model :
LT75
Load Capacity :
1100kg
Operating Weight :
3810kg
Bucket Capacity :
0.53m³

Inquiry now

Share to :

Product Details

Cab：ROPS & FOPS cab, equipped with seat belts and a bumper, safeguards the operator's personal safety and offers ample cab space.

Operation Of The Entire Machine：The structure is compactly arranged, with a low overall centre of gravity, ensuring excellent stability and strong adaptability to various sites.

Boom：The high-strength seamless rectangular boom design ensures the main boom remains fatigue-resistant and free from damage during prolonged, high-intensity continuous operation.

Tire：The tyres are 12-16.5 vacuum-type tyres, offering excellent elasticity and wear resistance, suitable for use on a variety of different road surfaces.

LT75 Skid Steer Loader Technical Specifications

Model	LT75
Engine Model	QUANCHAI4C6-88C33
Rated Power	65KW
Rated Speed	2200rpm
Max. Speed	11.2/22.4km/h
Tire	12-16.5
Operating Load	1100kg
Max. Loading	2200kg
Lifting Type	Radial
Total Cycling Time	9s
Bucket Capacity	0.53m³
Pressure of Working System	235bar
Rated Flux	76L/min
High Flow Flux	140L/min
Fuel Tank Capacity	106L
Self-weight With Bucket	3810kg
Control Bucket	Manual/Joysticke
Overall Operating Height	4143mm
Height To Bucket Hinge Pin	3205mm
Height To Top of Cab	2065mm
Height To Bottom of Level Bucket	3010mm
Overall Length Without Bucket	2857mm
Overall Length With Bucket	3649mm
Dumping Height	2460mm
Dumping Reach	590mm
Rollback of Bucket On Ground	30
Ground Clearance	195mm
Angle of Departure	26
Front Turning Radius without Bucket	1338mm
Front Turning Radius	2174mm
Rear Turning Radius	1746mm
Width (Standard Tire)	1798mm
Bucket Width	1910mm

With technological innovation our product configuration and parameters will continue to change without notice.

About LTMG

Loader Certificate

Skid steer loader attachments

This skid steer loader supports a wide range of attachments, making it suitable for different working applications.

Skid steer loader review

See how our customers experience the performance of this skid steer loader in real job sites around the world.

Excavator Review

If you need a reliable 1100kg skid steer loader solution, feel free to contact us for more details or a tailored quote.

FAQ

What is a skid steer loader used for?

A skid steer loader is a compact machine used for construction, landscaping, and material handling tasks. It can work with different attachments to improve job site efficiency.

What is the advantage of a high flow skid steer loader?

A high flow system provides greater hydraulic output, allowing the machine to operate more powerful attachments for demanding applications.
