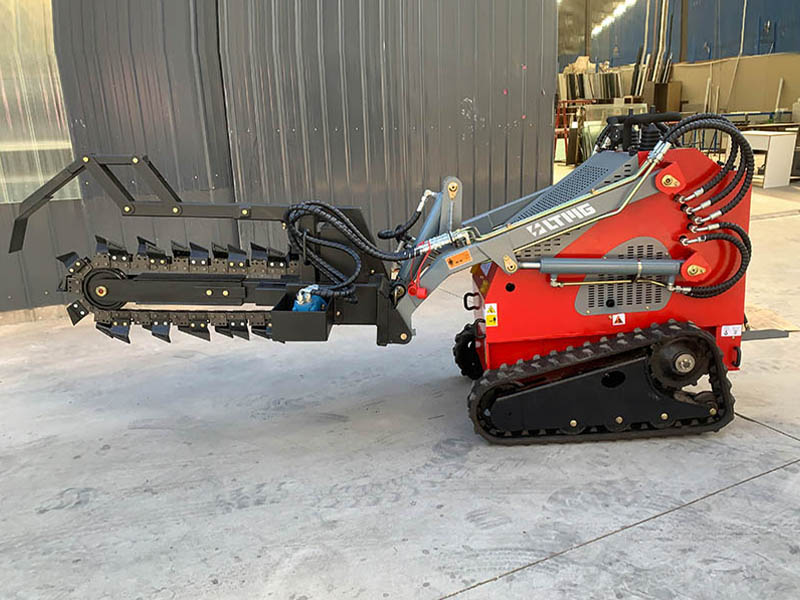

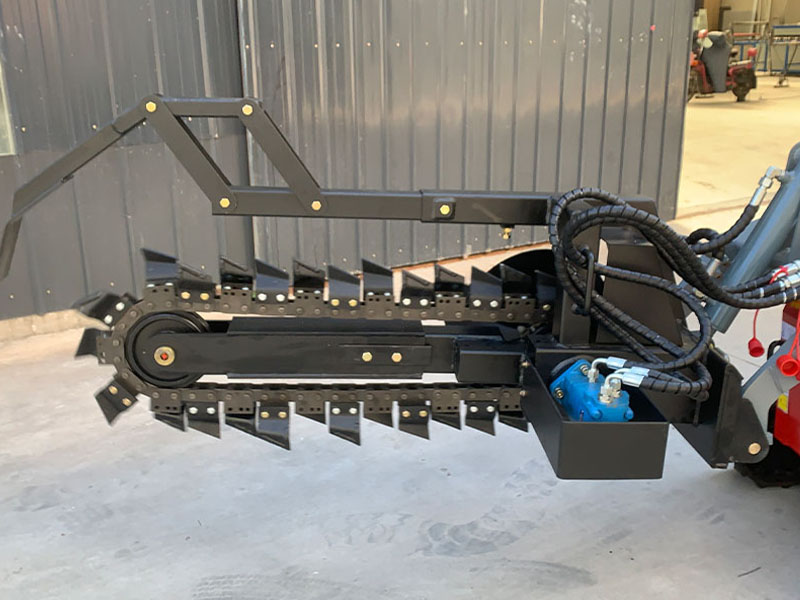

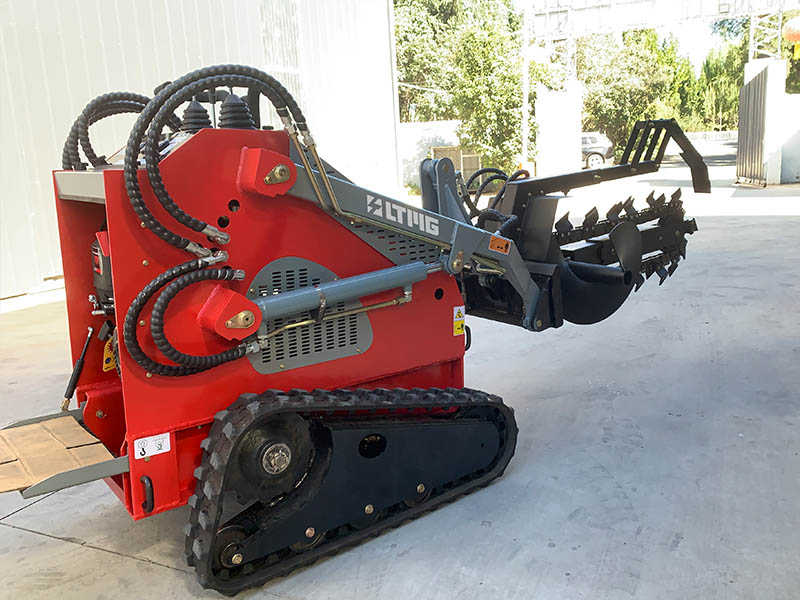

The Tracked Skid Steer featuring a robust trencher attachment is perfect for navigating confined spaces. The skid loader not only excels in lifting, digging, leveling, and clearing but also boasts enhanced versatility with multifunctional attachment. Seamlessly tackle trenching tasks with precision, making quick work of any project while maximizing productivity and minimizing manual effort.
Model :
LTS14Load Capacity :
260KgOperating Weight :
690KgBucket Capacity :
0.15m³ODM/OEM :
Provided
The Features Of Mini Skid Steer Loader
1. Miniature: small size, small turning radius, easy to move and steer in narrow spaces, urban construction, interior decoration, farm and gardening and other working environments.
2. High efficiency: hydraulic control, with brand engine, high power, dual output. Your powerful working partner.
3. Multiple Attachment Replacement: LTMG provides multiple attachments for the mini skid steer loader, such as auger, forks, snow blower, trencher. So that it can cope with various scenarios and construction programmes;
4. Good ground protection: small skid steer loaders use rubber tracks or tyres, which cause relatively little damage to the ground. Especially when working on grass, flower beds and other sensitive areas, they can reduce damage to plants and ground and protect the environment.
The Parameter Of LTS14 Skid Steer Loader
| Model | LTS14 |
| Type of engine | Single cylinder Diesel engine |
| Rated power | 10.29Kg |
| Rated speed | 3000rpm |
| Number of cylinders | 1 |
| Air inlet mode | nature |
| Displacement | 0.667L |
| Emission standard | national standard |
| Rated load | 260Kg |
| Max Load | 300Kg |
| Max lifting Force | 450kn |
| Bucket Capacity | 0.13m³ |
| Driving speed | 0-6km/h |
| The sum of three items | 9s |
| system pressure bar | 17-21bar |
| Fuel tank capacity | 5.5L |
| Operating weight | 880Kg |
| Maximum operating height(H) | 2400mm |
| Height to bucket pin | 1870mm |
| overall height(C) | 1300mm |
| Max height on bucket level state | 1810mm |
| Total length without bucket(E) | 1400mm |
| Total length（with bucket）(F) | 1860mm |
| Max height Unloading Angle | 34° |
| Dumping height(A) | 1510mm |
| Dumping distance | 460mm |
| Bucket overturning angle on the ground | 27° |
| Max Bucket swing angle | 114° |
| Wheel base | 600mm |
| Ground clearance | 120mm |
| Tail length | 280mm |
| overall width(I) | 780mm |
| Bucket width(U) | 800mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

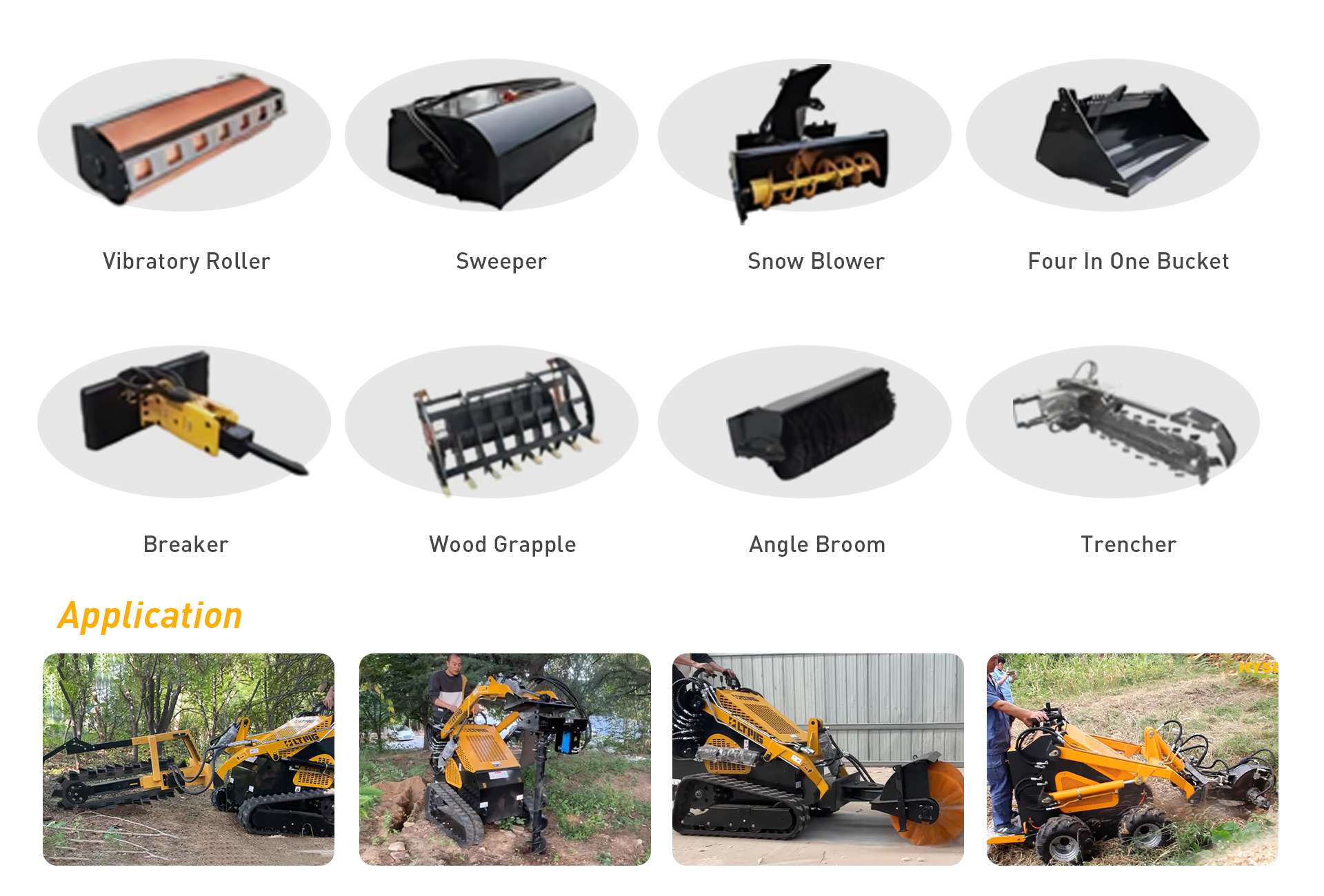

The Optional Attachments Of Tracked Skid Steer
We offer and produce a wide range of attachments, like vibratory roller, sweeper, snow blower, four in one bucket, which are listed below as common attachments. Any interest or needs, please feel free to contact us for more options.
