Skid steer loaders operate on uneven terrain. It is possible to change or hook up different work devices at the work site in a matter of minutes. It can be used for shoveling, stacking, lifting, excavating, drilling, crushing, grabbing, pushing, grubbing, loosening, trenching, road cleaning and road compaction, etc.
Model :
LTS50Load Capacity :
700kgOperating Weight :
2800kgBucket Capacity :
0.3m³ODM/OEM :
SUPPORT

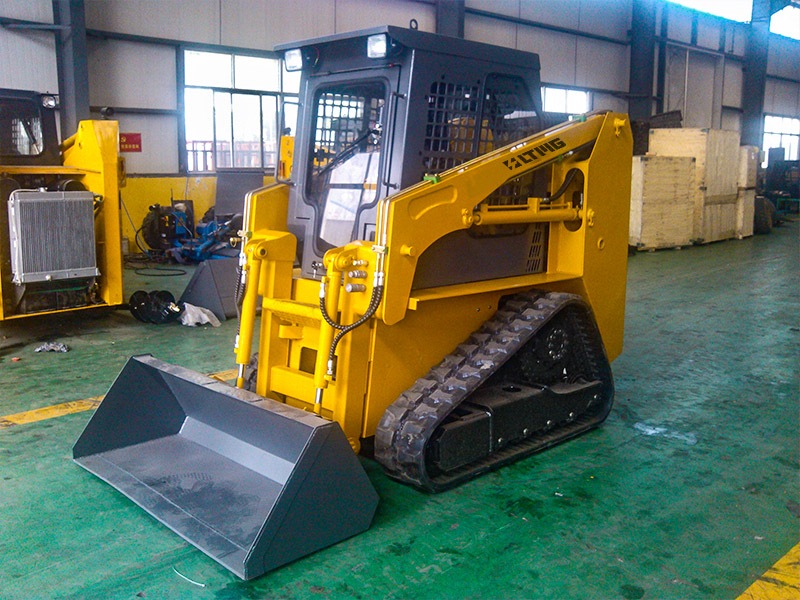

700 kg Crawler Skid Steer Loader characteristics
1.The overall size is small, and can realize in situ steering; Various working devices can be quickly replaced or connected randomly at the job site.
2.The cab of the skid steer loader is in the center of the equipment, which can ensure the stability and safety of the operator at the same time.
3.The diesel turbine engine and high performance full-size tires with an ultra-short wheelbase design make the skid steer loader significantly more capable off-road than other similar equipment.
700 kg Crawler Skid Steer Loader Product parameters
| Model | LTS50 |
| Operating load (kg) | 700 |
| Max Speed（km/h） | 10 |
| Rated flux (L/min) | 60 |
| High Flow Flux (L/min) | / |
| Tire（track） model | 300X52.5 |
| Rated power (Kw) | 36 |
| Fuel tank capacity (L) | 50 |
| dead weight (kg) | 3000 |
| self weight bucket (kg) | 2800 |
| Bucket capacity (m³) | 0.3 |
| Overall operating height (mm) | 3350 |
| Hheight to top of cab (mm) | 2050 |
| Without bucket length（mm） | 2300 |
| Overall length with bucket(mm) | 2950 |
| Dumping height(mm) | 2100 |
| Width (mm) | 1402 |
| Bucket width (mm) | 1500 |
| Height to bottom of level bucket(mm) | 2603 |
| Dumping angle at maximum height(° ) | 40 |
| Height to bucket hinge pin (mm) | 2770 |
| Dumping reach(mm) | 790 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 1240 |
| Ground clearance(mm) | 140 |
| Angle of departure(° ) | 20 |
| Front turning radius without bucket(mm) | 1064 |
| Front tuning radius(mm) | 1825 |
| Rear tuning radius(mm) | 1264 |
| Rear axle to bumper (mm) | 594 |
| Tread width (mm) | 1102 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail
FAQ about 700 kg Crawler Skid Steer Loader
1. Why choose us?
LTMG specializes in the production of skid steer loaders and has more than 15 years of experience in production and sales. We provide 7/24 hours online service.
2.What payment terms can we accept?
Normally, a 30% deposit is required in advance and 70% of the balance should be settled before shipment. Payment methods include T/T, L/C, D/A, etc.
3.What is the product range of our factory?
LTMG Industry is a large machinery manufacturer specializing in supplying loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers' requirements.
4.Could we request our own color for the skid steer loader?
Yes, of course, you just need to offer us the RAL code.
