Hey, high capacity Self Mixing Concrete Truck, is that what you're looking for? Concrete mixer truck, widely used in road engineering construction. Its many functions, including self-loading, self-mixing, and post-work cleaning function, are well liked by customers. At the same time, in the construction industry, it also has extraordinary achievements.
Model :
LTM42Weight :
9500KGODM/OEM :
SUPPORTLength, width, height :
7500mm*2950mm*3500mm

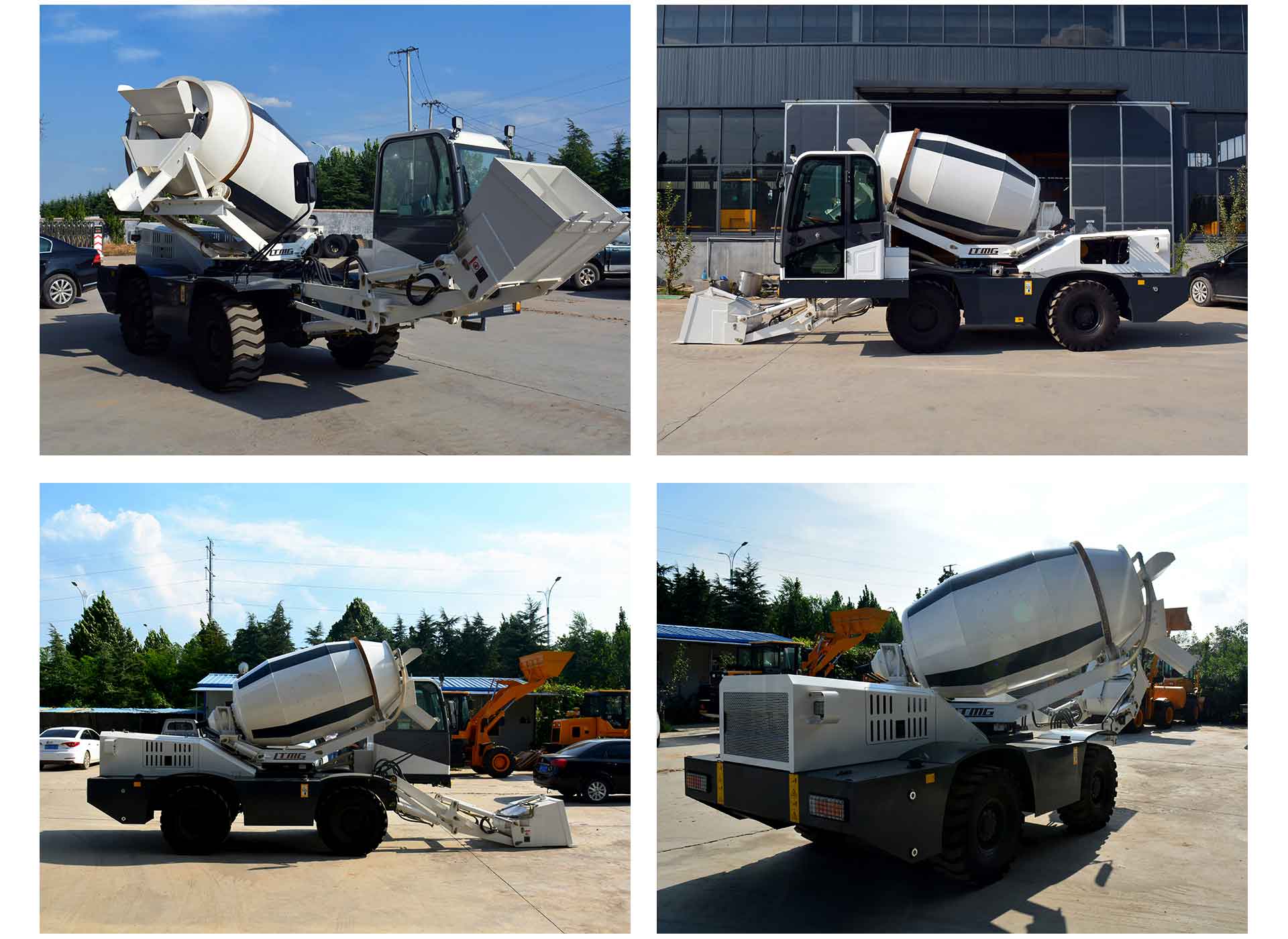

Concrete Mixer Truck Product Features:
Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
1.Italy Leading Design,Automatic Feeding Mixing System.Save labor costs, as well as manpower, improve work efficiency
2.Simple And Convenient Operation.The machine is easy for the operator to use. It doesn't take much training.
3.Save Time and Labor,Save Cost. Through the operation of the machine, the output ratio is higher than that of manual and small mixing machines.
4.The Perfect Combination Of Mixing Truck And Loading Car.The perfect look. Can be divided into articulated and integrated. It depends on the needs of the customer.
5.270 Degrees With A Rotary Stirring Tank,Two-Way Unloading.The work vision is widened, and the work efficiency is improved

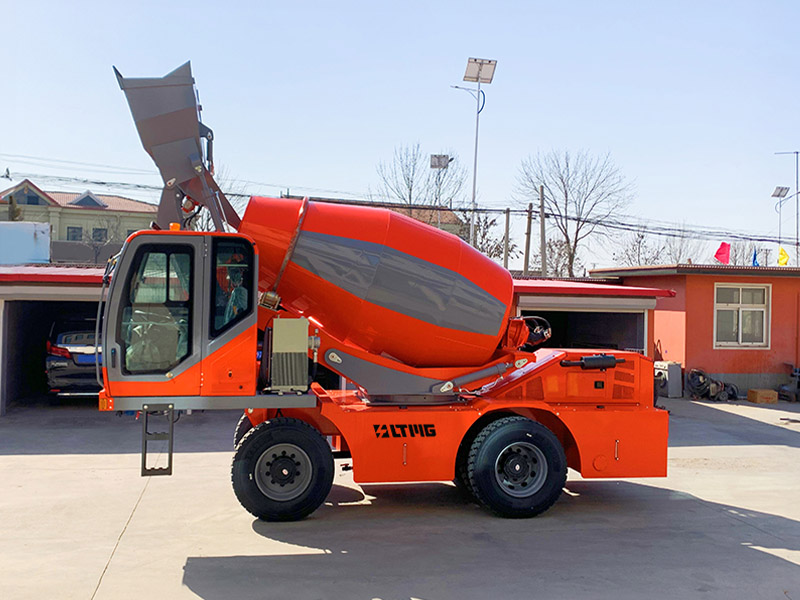

Self Mixing Concrete Truck LTMG product specifications
LTMG 4.2cubic high-proportioning self-loading mixer | |
Model | LTM42 |
Output Per Lot | 4.2 cubic metres |
Drum Rotation | Discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered |
Capacity | Up to 5 batches per hour, 20 cubic hours |
Engine | Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW |
Drive Mode | The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive |
Climb | 45° |
Speed | Dual altitude, low speed 0-25kph, high speed 0-40 kph |
Driver'S Seat | Closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed |
Hydraulic System | Open oil inlet, axial piston motor, two gear pumps to participate in the work |
Joystick | Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank |
Bucket | 0.7 cubic, hydraulic gate |
Clay Groove | Equipped with one 150CM Removable Chute to increase the length of discharge |
Water Supply System | Self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine |
Braking | Internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels |
Steering | Assisted by a hydraulic power steering system on two steering wheels |
Tire | 12R-22.5 steel wire high pressure vacuum tire |
Power System | 24V |
Fuel Tank / Water Tank | 2 * 380 Litres Water tank, diesel fuel tank 180litres, hydraulic fuel tank 180 litres |
Weight | 9,500 kg |
Length, Width, Height / Wheelbase / Wheelbase | 7500mm*2950mm*3500mm*2590mm*2200mm |
Turning Radius | 5860mm |
Other | Q345 manganese steel frame, excavator luxury cab, driving image, cement bucket, air conditioning |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

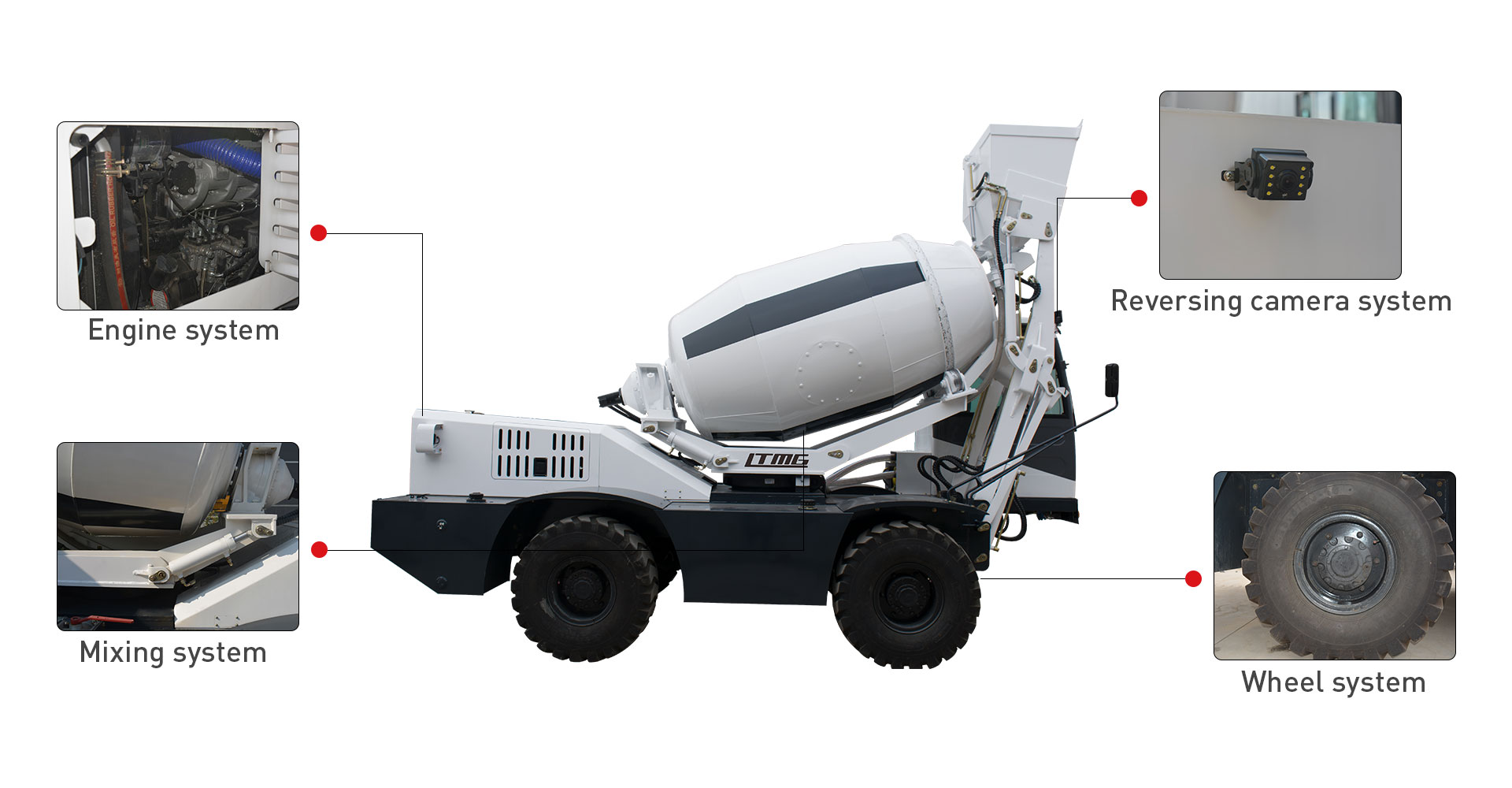

The Configuration System Of LTMG Self Loading Mixer
LTMG 4.2M3 self loading concrete mixer truck, using China's famous engine brand: Yuchai. Yuchai supercharged engine, so that the machine has more horsepower when working. Working camera, advanced tire and mixing system, so that the working performance of the whole machine has been the greatest improvement.

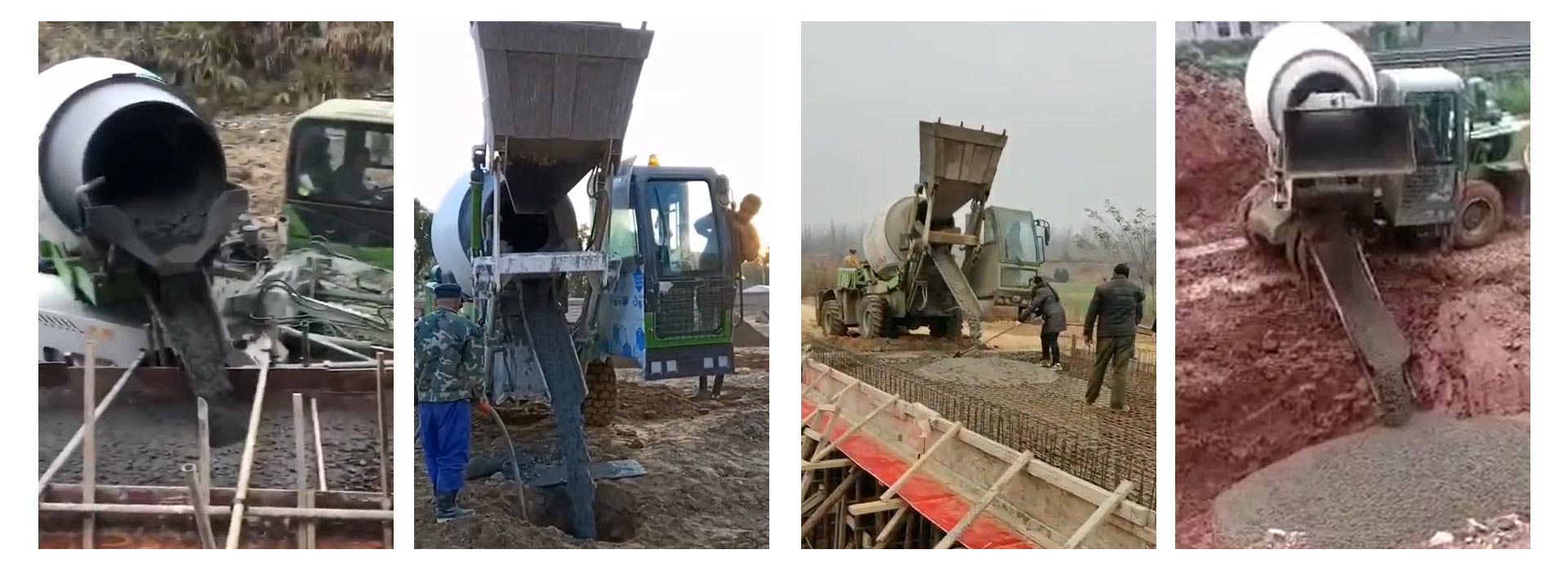

Self Mixing Concrete Truck Actual Work
The LTMG brand self mixing concrete truck is sold in many countries around the world. Customer satisfaction is increasing day by day. In the road construction and construction industries, LTMG's machines provide the best experience for each customer.
FAQ
Q: Why did you choose LTMG?
A: LTMG has been operating in the construction machinery and logistics machinery industry for more than 20 years. We have a wealth of production and sales and service experience. To get closer to raw material access and quality, LTMG is currently located in Weifang, Shandong Province, China and Xiamen, Fujian Province. Good raw material origin, casting good machine quality
Q: What are the types of concrete mixer?
A: The concrete mixer is divided into articulated and integrated. The number of cubic meters produced ranges from 2.6 to 4.2 cubic meters
Q: How fast does the concrete mixer travel?
A: The vehicle is divided into 8 gears, 4 forward 4 back, double high and low speed, it should be noted that the vehicle must be operated in low speed gear when working, the speed of the low speed gear is 10--15km/h, the high-speed gear can be used when the vehicle is empty for a long time, the speed of the high-speed gear is 30--40km/h
Q: Are concrete mixing vehicles shipped with wearing parts?
A: Yes. We will send with the machine toolbox, filter element, safety plate, tire screw, water pipe, switch, water block valve, butter nozzle and other consumable parts required by the customer.
