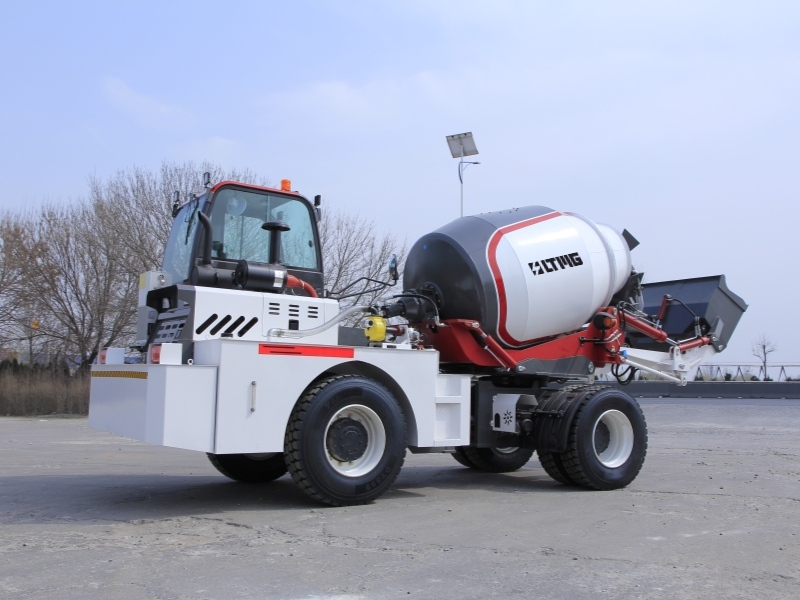

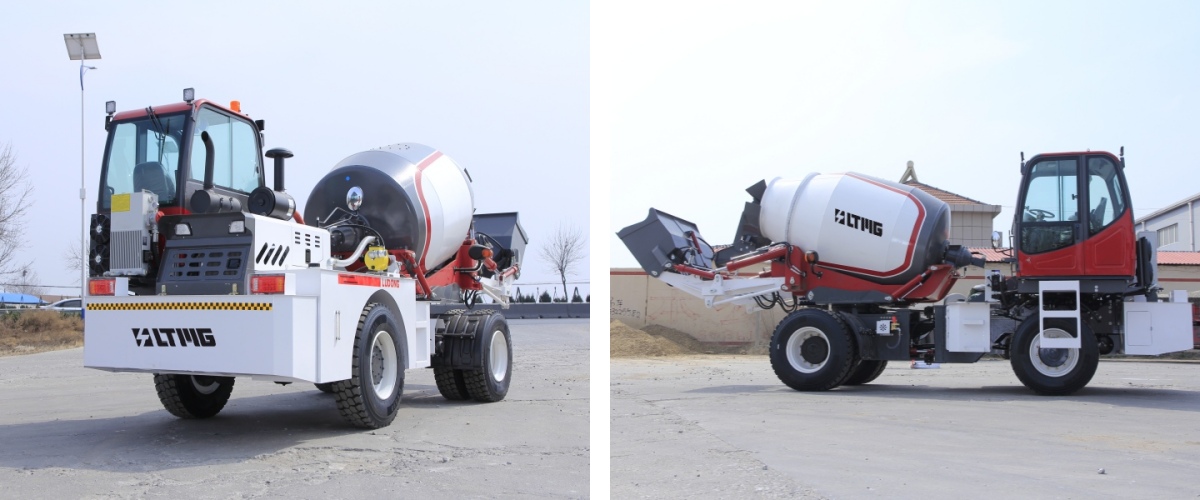

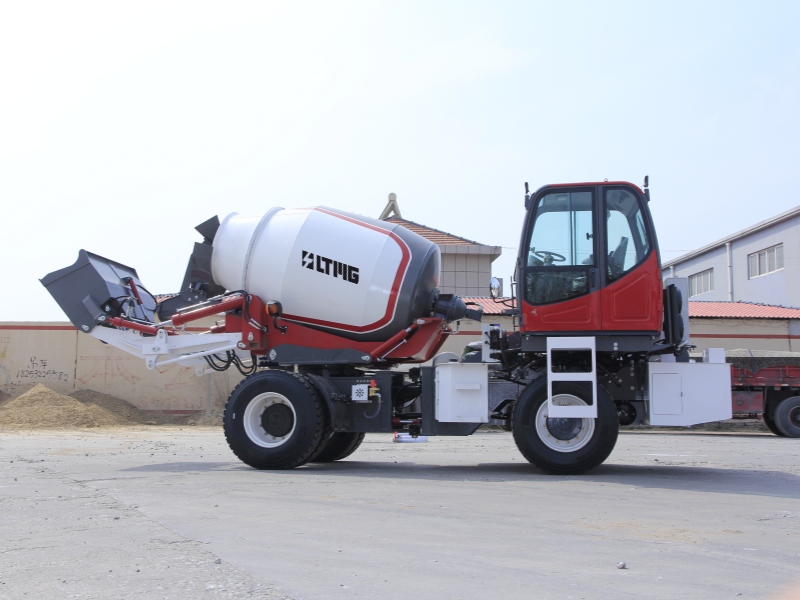

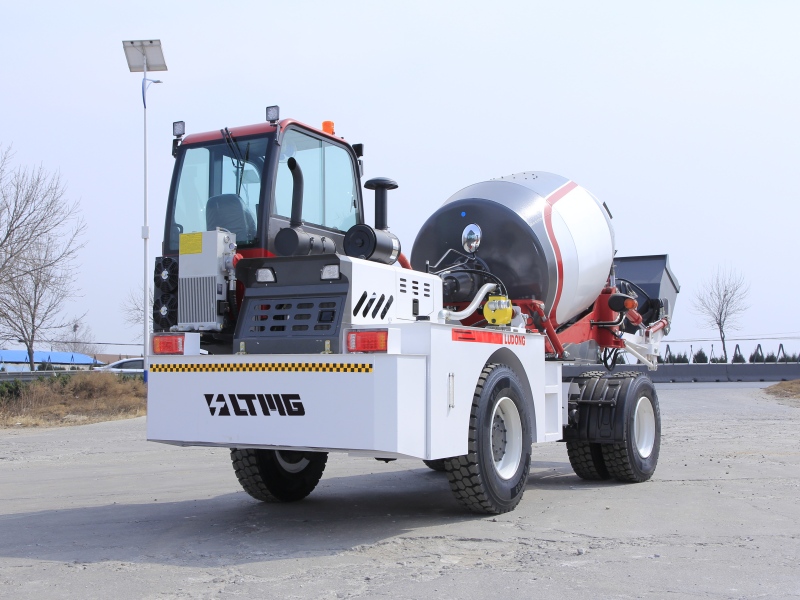

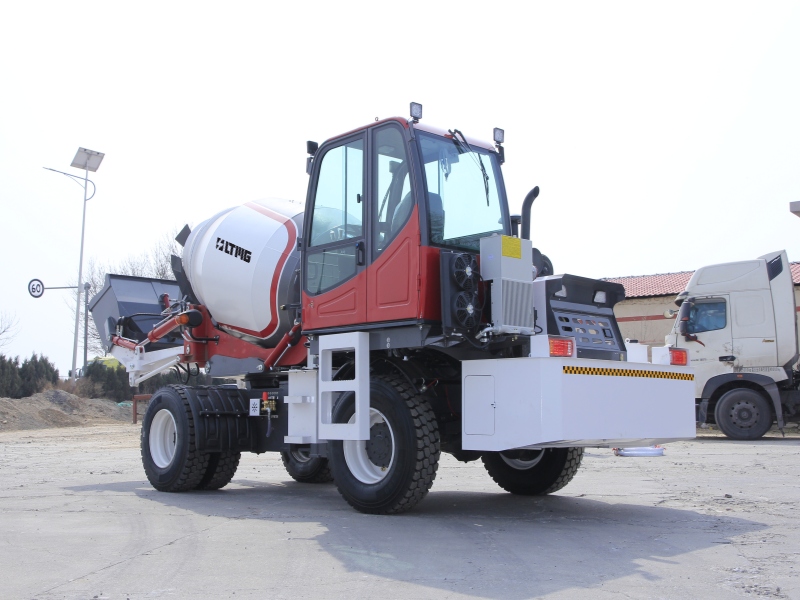

This high-capacity self-loading concrete mixer integrates loading, mixing, transporting, and discharging for efficient on-site concrete production. Its powerful drivetrain, articulated design, and synchronous drum rotation ensure excellent maneuverability and reliable performance on challenging terrain, while advanced controls and practical systems enhance operator comfort and productivity across construction and infrastructure projects.
Model :
LTM35Weight :
9000 KGLength, width, height :
6760×2800×4220 (Lifting arm) mm
Self Loading Mixer Features
1. High-Capacity & Efficient Concrete Production: The large-capacity mixing drum and integrated loading, mixing, transporting, and discharging system streamline on-site concrete production, reducing handling requirements and improving overall construction efficiency.
2. Powerful Performance for Demanding Conditions: A powerful diesel engine and heavy-duty drivetrain provide strong traction and reliable operation, allowing the mixer to handle challenging terrain and demanding construction environments with confidence.
3. Flexible Articulated Design & Synchronous Rotation: The articulated frame enhances maneuverability on uneven or confined job sites, while the drum and cab rotate synchronously for convenient positioning and flexible concrete discharge.
4. Comfortable Operation & Enhanced Visibility: Pilot controls, front and rear cameras, a display monitor, digital instrument panel, and luxury suspension seat create a more comfortable and convenient operating environment while improving visibility and job-site safety.
5. Practical Systems for Efficient Operation: Timed water supply, hydraulic external water suction, unloading vibrator, cement hopper, and LED lighting simplify material handling and concrete discharge, supporting efficient operation across road, building, infrastructure, and remote construction projects.
The Specification Of The Self Loading Concrete Mixer Truck
| Parameter | Unit | LTM35 |
| Vehicle Size (L × W × H) | mm | 6760×2800×4220 (Lifting arm); 7670×2800×3200 (Drop arm) |
| Wheelbase | mm | 3200 |
| Track Width | mm | 1710 |
| Overall Weight | kg | 9000 |
| Engine | / | YCD4J22T-115 / YCD4J22T-125 |
| Power | kW | 85/91 |
| Gearbox | / | 280 Separated |
| Drive Axle | / | 2.5T Wheel side reduction axle |
| Tyre | / | 16/70 R22.5 double tyre |
| Capacity of Bucket | m³ | 0.65 |
| Stirring Capacity | m³ | 3.5 |
| Reduction Ratio | / | 1:28 |
| Rotate Speed | r/min | ≥15 |
| Reducer | / | HL6F-B2700 |
| Running Speed | km/h | 35 |
| Drive Type | / | 4×4 |
| Water Tank Capacity | L | 640/700 |
| Diesel Tank Capacity | L | 170/150 |
| Hydraulic Tank Capacity | L | 140+26/140+26 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Concrete Mixer Truck Usage Scenarios
FAQ
A: Not necessarily. The engine power of a self-loading concrete mixer should be properly matched with its mixer capacity, transmission, hydraulic system, terrain, working altitude, and operating workload. Installing an oversized engine may increase fuel consumption without delivering a significant productivity improvement if the transmission and other powertrain components are not upgraded accordingly. The engine should therefore be selected according to the actual working conditions and performance requirements.
Q: Can a Larger Self-Loading Concrete Mixer Reduce Overall Concrete Production Costs?
A: Not always. A larger self-loading concrete mixer can produce more concrete per batch, but it may also require higher investment, greater fuel consumption, and more operating space. For projects with limited concrete demand or restricted construction areas, a smaller mixer may offer better fuel efficiency and overall cost-effectiveness. The ideal mixer size should be determined by the project's actual concrete demand and site conditions.
Q: What Self-Loading Concrete Mixer Dimensions Are Important for a Narrow Construction Site?
A: When choosing a self-loading concrete mixer for a confined construction site, pay attention to its overall width, overall height, wheelbase, turning radius, bucket operating range, and concrete discharge clearance. The machine needs sufficient space not only to enter and pass through the site but also to load materials, maneuver, turn, and discharge concrete safely. Providing the site's access dimensions in advance can help identify the most suitable mixer model.
Q: Which Tires Are Best for a Self-Loading Concrete Mixer on Muddy or Rocky Terrain?
A: Tire selection should be based on the specific ground conditions. Deep-tread off-road tires generally provide better traction on muddy, loose, or soft ground, helping improve the self-loading concrete mixer’s mobility. For rocky or rough construction sites, reinforced heavy-duty tires may be a better choice because they offer greater resistance to punctures and sidewall damage. The final tire configuration should also take the machine's load and operating environment into account.
