The Self Loading Mixer boasts an impressive discharge port height of 1.65 meters, enabling seamless and effortless operation. With a horizontal rotation capability of 270 degrees, the tank is thoughtfully engineered to be easily raised and lowered. The self concrete mixer designed to elevate your work productivity and efficiency.
Model :
LTM26Weight :
7000 kgODM/OEM :
AvailableLength, width, height :
7150mm * 2650mm * 3000mm

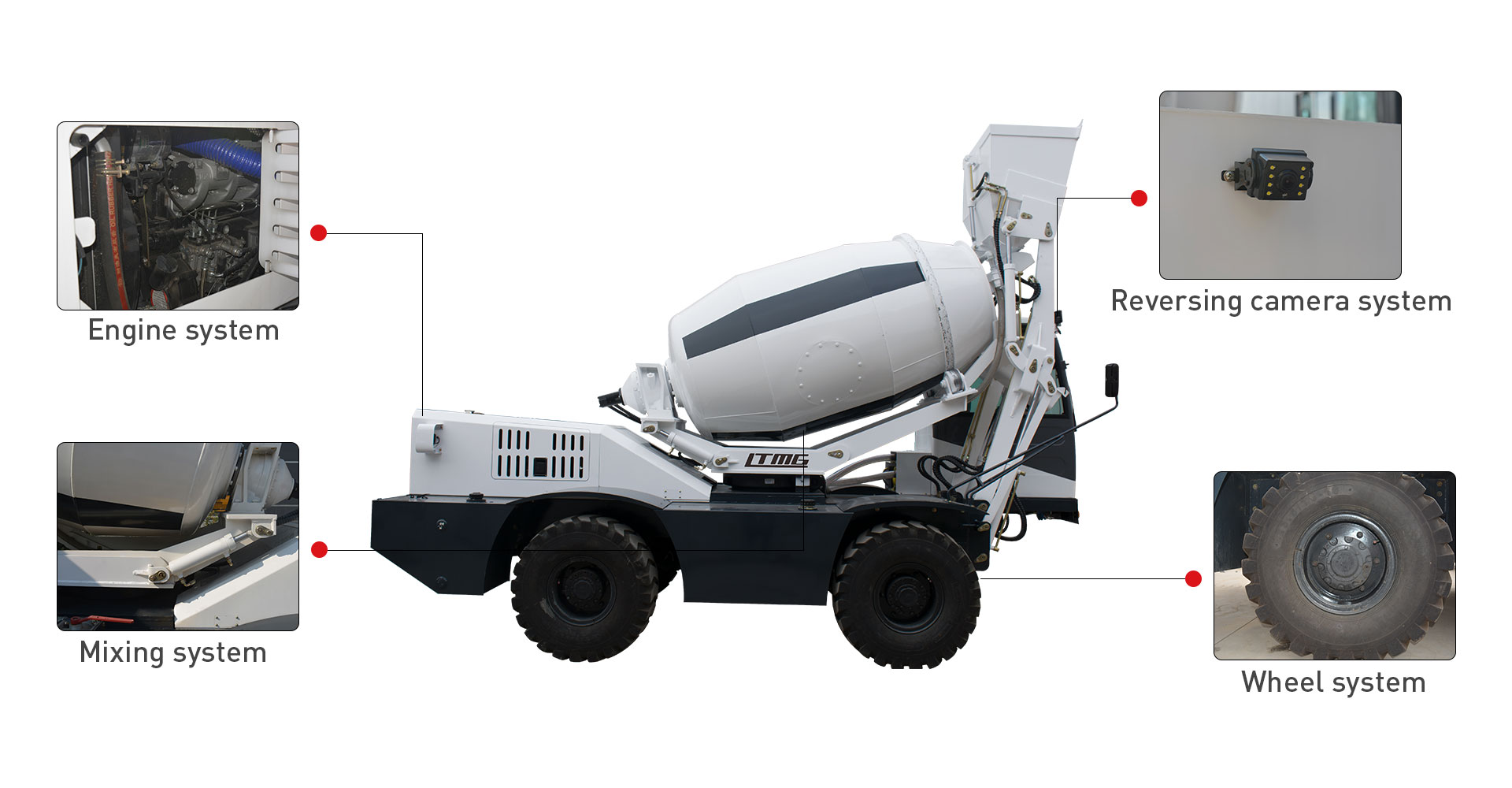

Self Loading Mixer Features
1. Equipped with manganese steel frame, widen luxury cab, cement bucket. Two 150 cm detachable chute to increase discharge length. With a horizontal rotation capability of 270 degrees.
2. Featured with the automatic water measurement, guarantees precise water dosing, ensuring optimal concrete mixing quality.
3. Equipped with an advanced hydraulic system, the self loading mixer enables swift self-loading of aggregates, cement, and water with ease, eliminating the need for additional equipment or labor.
4. With a driving video, you'll have complete visibility of your surroundings, eliminating blind spots and enhancing safety during operation.
5. The LED lighting fixtures provide exceptional visibility even in low-light conditions, ensuring optimal performance at all times.
6. Equipped with a roof-mounted work warning light, providing a visual signal to alert nearby workers or pedestrians of its presence. This feature is especially crucial when operating in busy construction sites or crowded areas.
This self concrete mixer can cater to a wide range of construction needs, ensuring convenience and flexibility on the job site.
Self Loading Mixer Technical Parameters
| Model | LTM26 |
| Output per lot | 2.6cubic metres |
| Drum rotation | discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered |
| Capacity | Up to 4 batches per hour, 10.4cubic hours |
| Engin | Yuchai 4102 supercharged, diesel, water cooled, 4 cylinder, 2200 rpm |
| Climb | 40 degrees |
| Speed | dual altitude, low speed 0-25 kph, high speed 0-40 kph |
| Driver's seat | Widen luxurious cab, anti-rollover, anti-falling object type |
| Hydraulic system | Open type oil, two gear pumps to participate in the work |
| Joystick | Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank |
| Bucket | 0.6 cubic, hydraulic gate |
| Water Supply System | self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine |
| Brake | Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper |
| Steering | Hydraulic articulated steering |
| Tyres | 12R22.5 steel wire tyres |
| Power System | 24V |
| Fuel tank / Water tank | 1 * 600 l water tank, 120 l diesel fuel tank, 120 l hydraulic fuel tank |
| Weight | 7000 kg |
| Length, width, height / wheelbase / Wheelbase | 7150mm * 2650mm * 3000mm * 2900mm * 2100mm |
| Turning radius | 2800 mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

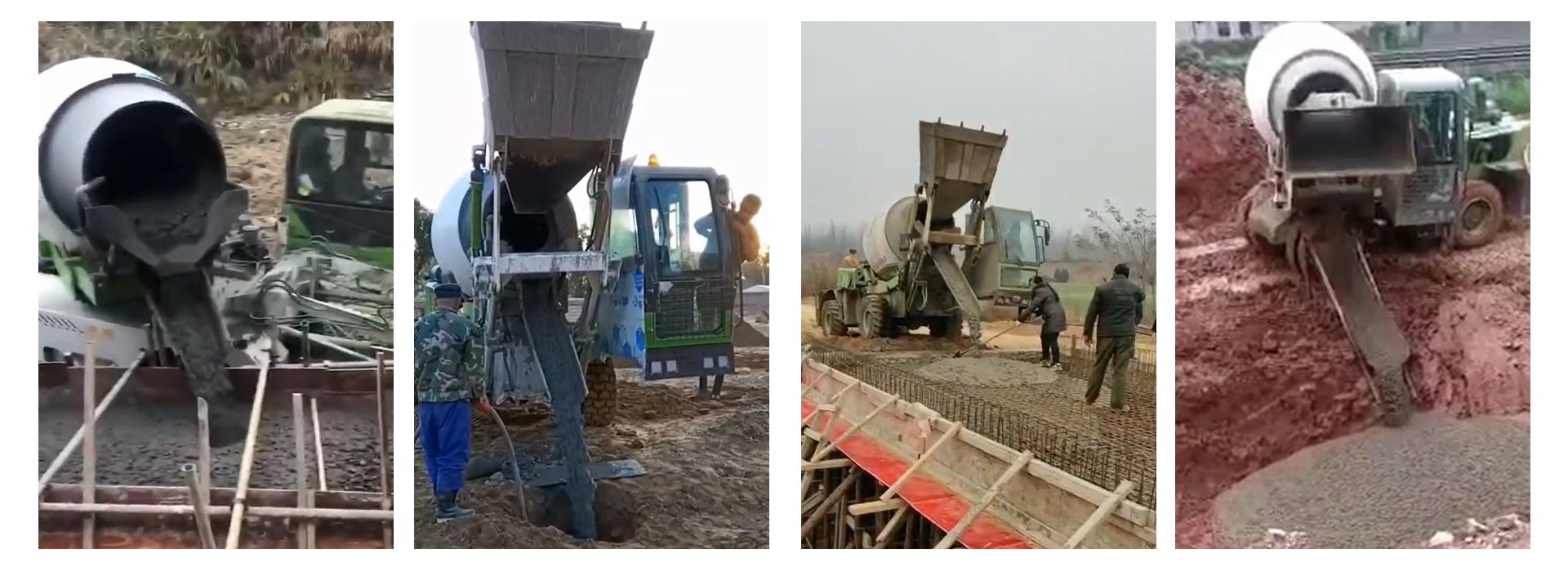

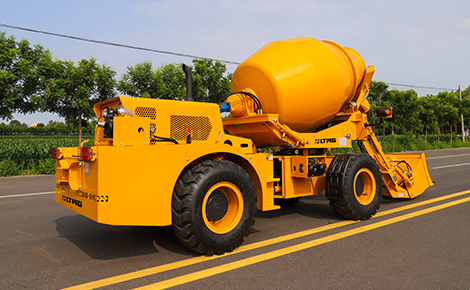

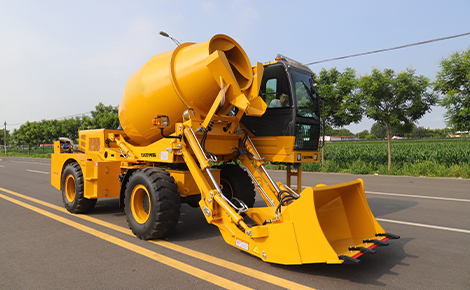

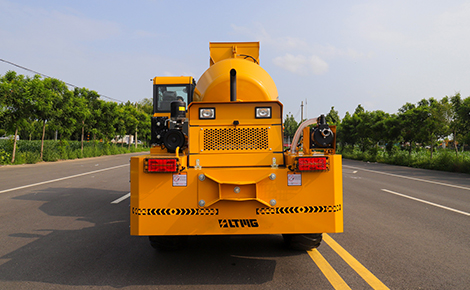

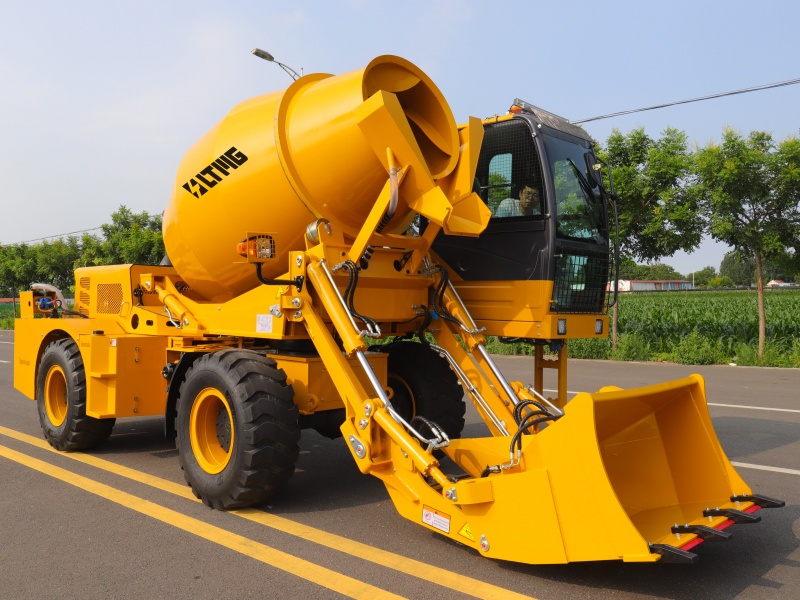

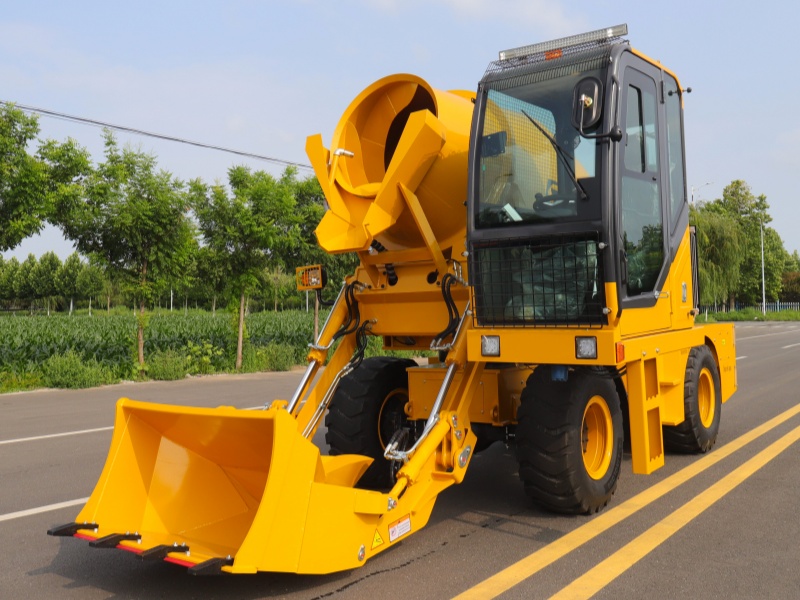

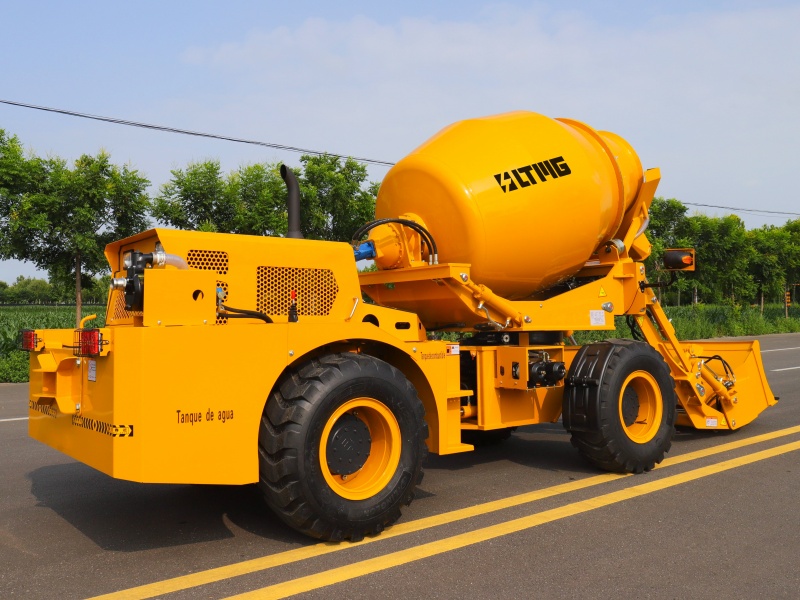

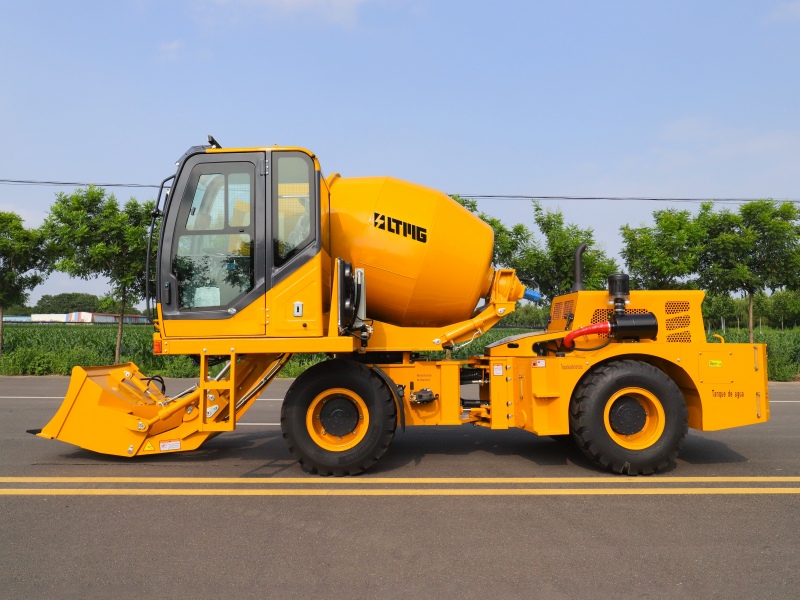

Detailed And Application Picture Of Self-loading Mixer
More about LTMG Machinery
Self Loading Mixer FAQ
Q: Do you have after-sale service?
A: Yes, LTMG provides our customers with good and comprehensive after-sale service, handling the customers complaint and solve problem for customers.
Q: Can we customize the machine to fit our unique requirements, and even incorporate our logo?
A: Certainly, our machines are adaptable to your distinct specifications, and we provide the choice to integrate your logo.
Q: Why Choose Us?
A: As a manufacturer, LTMG Idustry is not only committed to providing high-quality products and performance, as well as competitive prices, but also to timely delivery and 24-hour after-sales service.
Q: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
