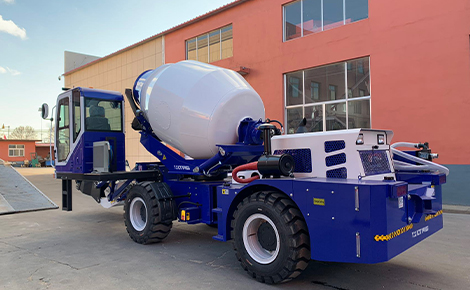

The self concrete mixer is capable of producing 3.5 cubic meters of output per lot. With a discharge port height of 1.8 meters,.The tank body can be raised and lowered with a horizontal rotation of 270 degrees, offering ultimate flexibility and ease of operation. Its capacity to complete up to 4 or 5 batches, 15.5 m³ per hour.
Model :
LTM35AWeight :
8500 kgODM/OEM :
AvailableLength, width, height :
7100mm*2750mm*3300mm

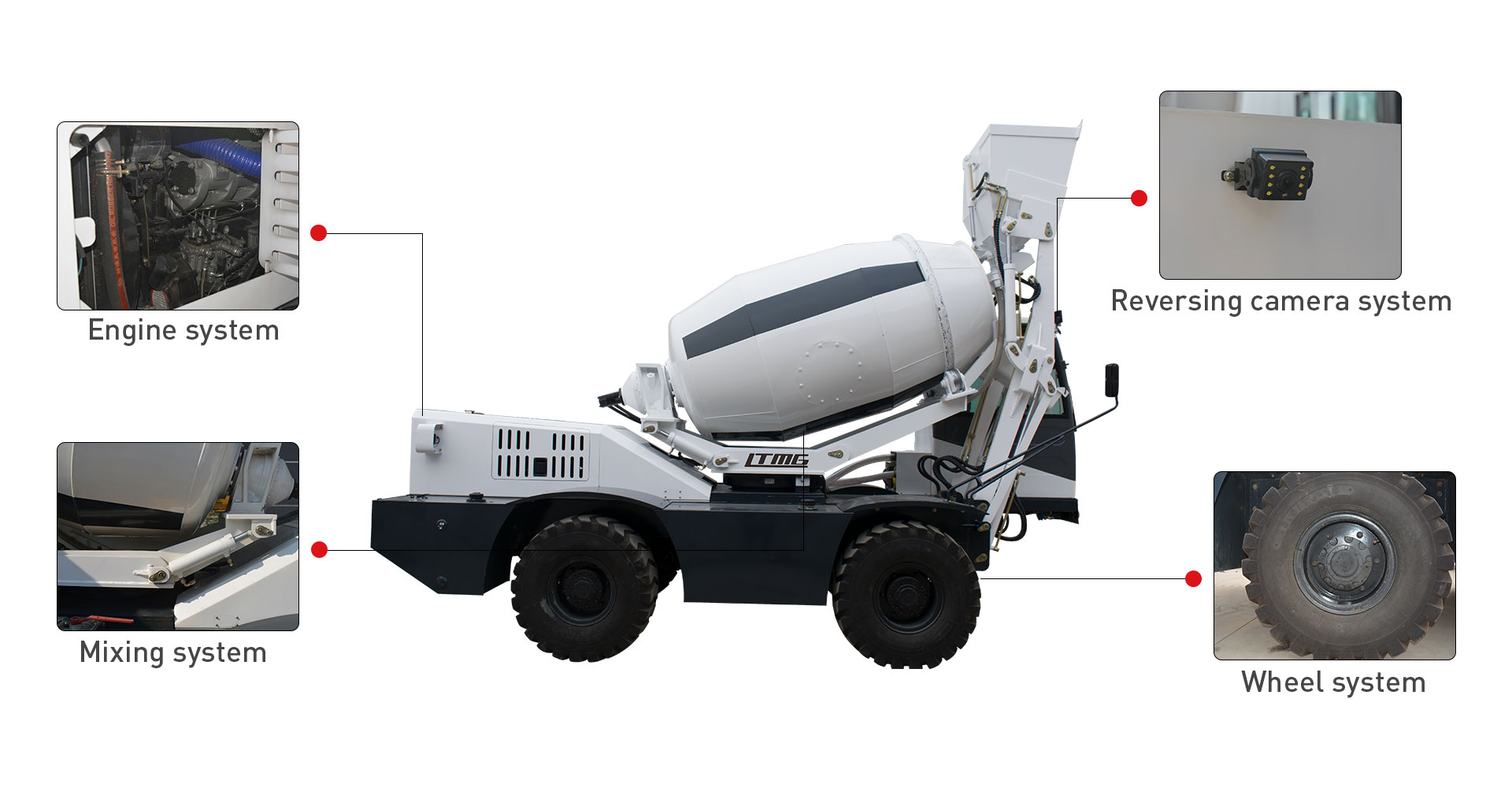

Self Concrete Mixer Features
The self-loading concrete mixer is designed to make mixing and pouring concrete easy and efficient. Whether you are mixing concrete for a small home improvement project or a large commercial construction site, this mixer is up to the challenge.
1. With a rotating cube body, designed to enhance your production capabilities and streamline your workflow. 3.5 cubic meters output per lot and hourly production rate of 4-5 batches (15.5 cubic meters/hour), this self concrete mixer is a powerhouse that can handle even the most demanding contracts.
2. Equipped with a rotating drum that can rotate horizontally up to 270°, and an unloading height of 1.8 meters that easily adapts to any job, the self concrete mixer is an asset to any construction site. The cube body of the machine is capable of both up and down movement and climbing steep inclines of up to 40°
3. With a spacious and comfortable cabin fitted with an air-conditioning unit, unobstructed windows, and a careful anti-roll and anti-fall design, our mixer ensures the safety of the operator at all times.
4. Features ergonomic seats with dual armrests and suspension, hydraulic systems, and enhanced stability through its wider wheelbase. The self loading concrete mixer is the ideal solution for the busy construction site that needs high volumes of uniform concrete at a fast pace.
The Self Concrete Mixer Specification
| Model | LTM35A |
| Output per lot | 3.5 cubic metres |
| Drum rotation | 1.8m discharge port height, tank horizontal rotation is 270° |
| Capacity | 4 or 5 batches per hour, 15.5 cubic per hour |
| Engine | Yuchai Power4j22t Foshan 15,diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 85 kw |
| Climb | 40 ° |
| Speed | Dual altitude, low speed 0-25 kph, high speed 0-40kph |
| Hydraulic system | Open type oil, plunger type motor, two gear pumps |
| Joystick | Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank |
| Bucket | 0.6 cubic, hydraulic gate |
| Steering | Articulated steeroing with high pressure bearing |
| Tire | 12R-22.5 steel wire high pressure vacuum tire |
| Fuel tank/ Water Tank | 1*700L water tank, 130L diesel fue tank, 130 L hydraulic fuel tank |
| Weight | 8500 kg |
| Turning radius | 2900 mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail

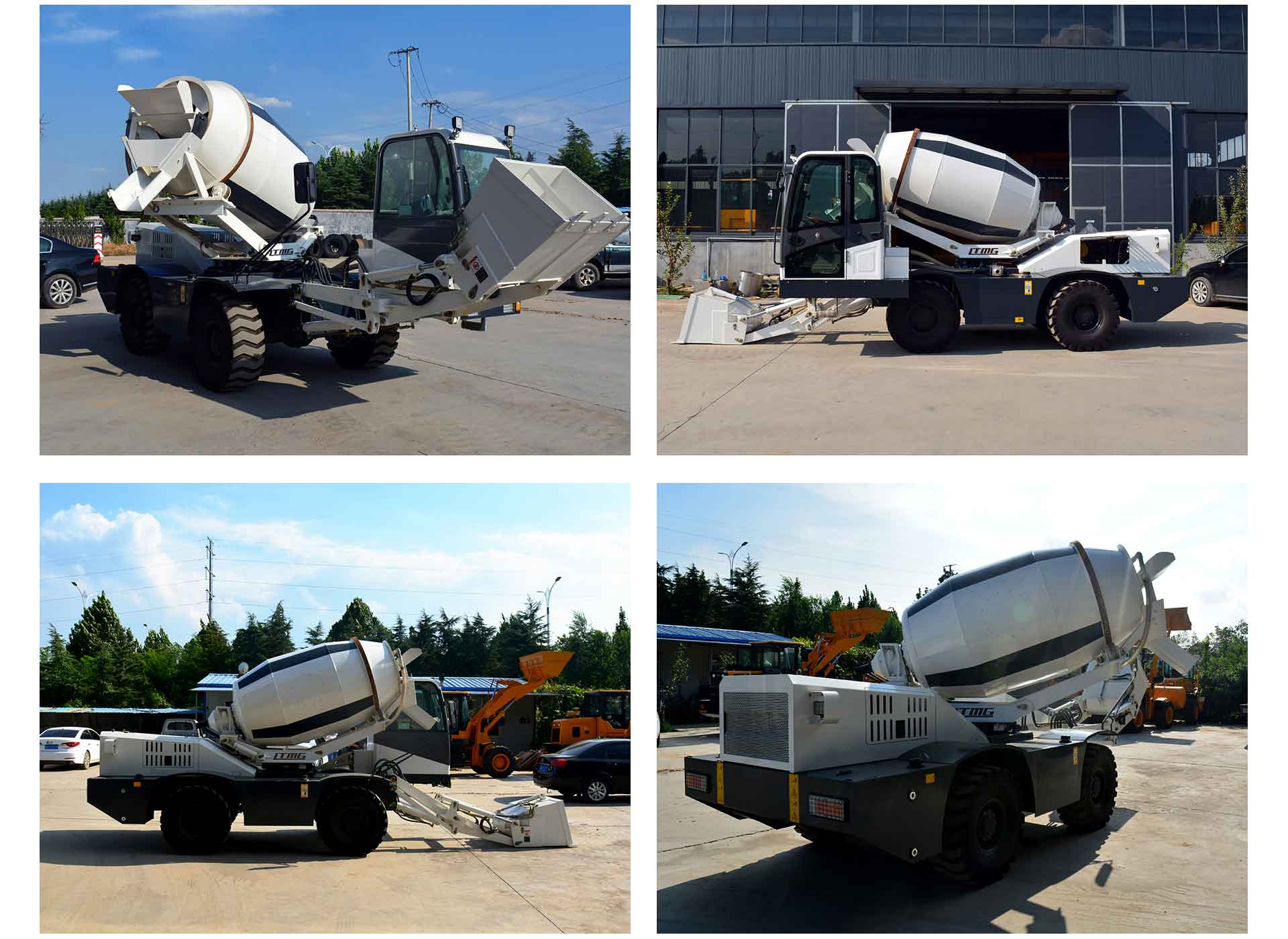

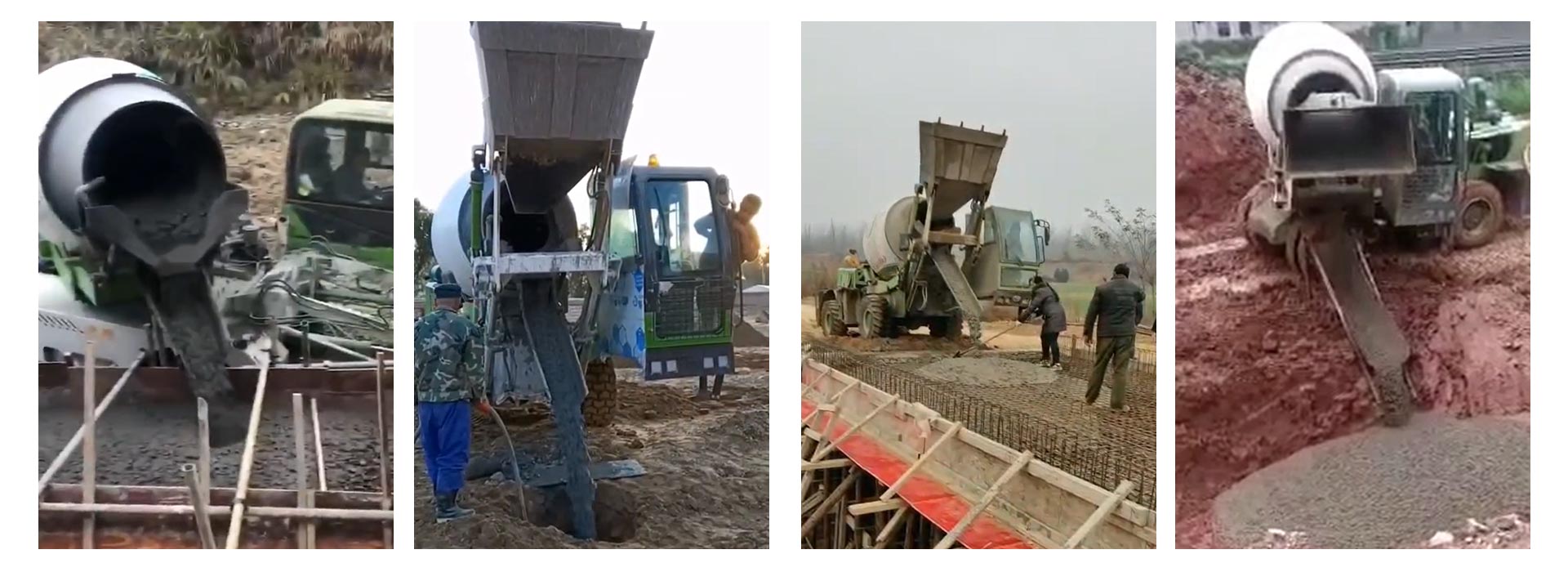

Detailed And Application Picture Of Self-loading Mixer
More about LTMG Machinery
FAQ
Q: Do you have after-sale service?
A: Of course. As a testament to our commitment to customer satisfaction, our forklift comes with comprehensive after-sales support, including prompt maintenance and reliable spare parts availability.
Q: Can we customize the machine to fit our unique requirements, and even incorporate our logo?
A: Absolutely, our machines can be tailored to your specific needs, and we offer the option to include your logo.
Q: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
