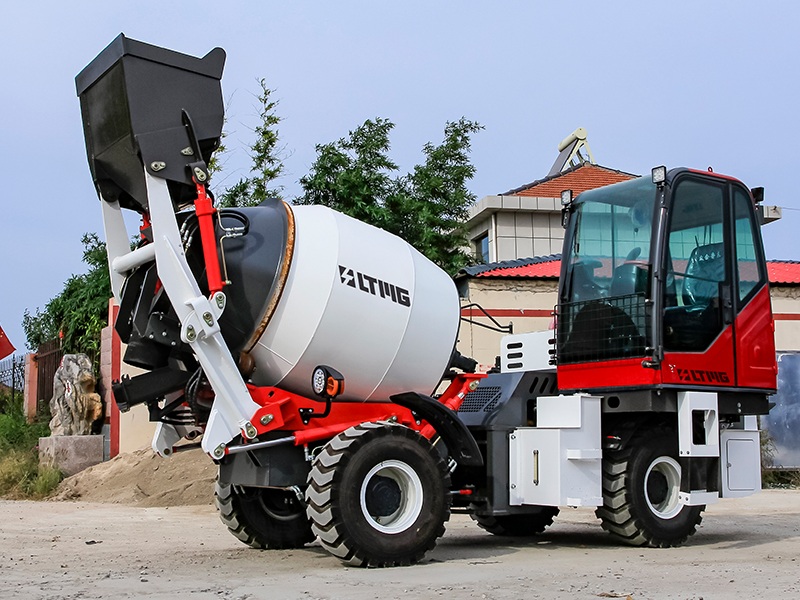

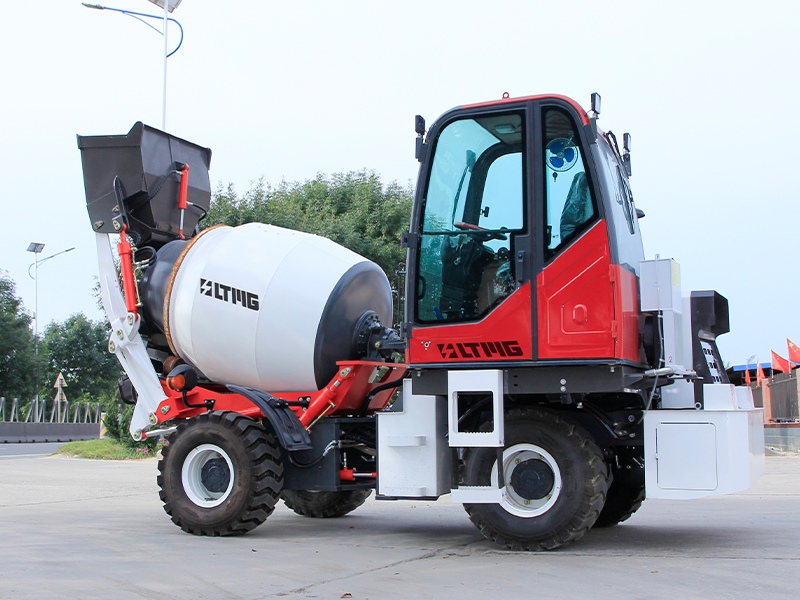

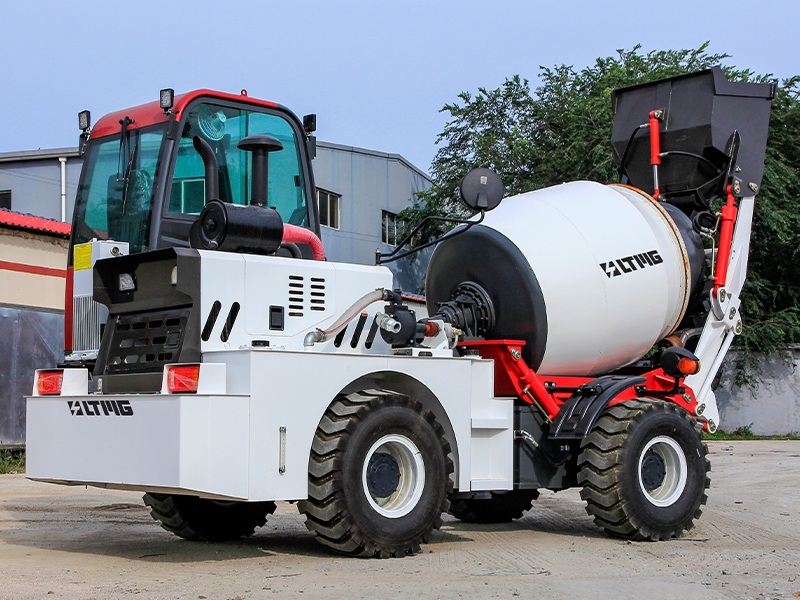

The 1m³ self-loading concrete mixer truck combines convenient operation, enhanced visibility, and efficient concrete production. Front and rear cameras, a digital instrument panel, timed water supply, and an unloading vibrator improve safety, mixing consistency, and discharge efficiency, making it ideal for rural construction, roadwork, and small-scale projects.
Model :
LTM10Weight :
5500 KGLength, width, height :
5050×2350×3500 mm
Self Loading Mixer Features

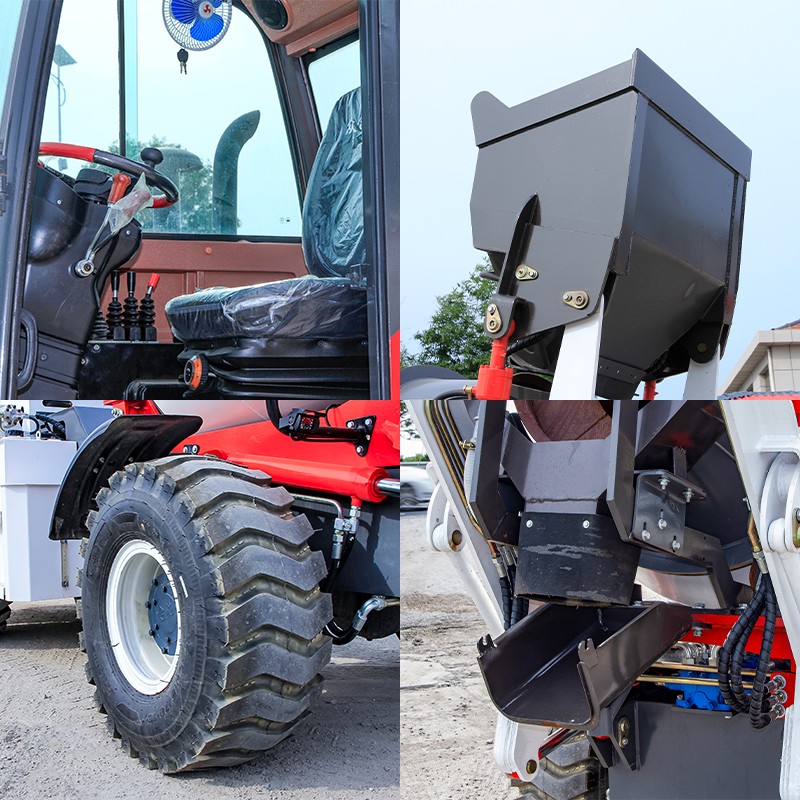

1. Enhanced Visibility & Driving Comfort: Equipped with front and rear cameras, a display monitor, and a luxury suspension seat, the mixer truck provides improved visibility, safer operation, and a more comfortable driving experience on demanding construction sites.
2. Convenient Instrumentation & Intelligent Monitoring: The digital instrument panel allows operators to monitor key machine functions clearly, while the integrated control system simplifies daily operation and improves working efficiency.
3. Fast Water Supply & Efficient Mixing: Featuring timed water supply, a diesel self-priming pump, and hydraulic water suction, the mixer ensures a stable and efficient water supply for consistent concrete mixing and on-site production.
4. Efficient Discharge & Reduced Material Residue: The unloading vibrator helps accelerate concrete discharge and reduce material buildup inside the mixing drum, improving unloading efficiency and minimizing material waste.
5. All-Weather Construction Capability: LED lighting and a luxury cab provide better visibility and a more comfortable operating environment, enabling the 1m³ self-loading concrete mixer truck to perform reliably in different working conditions and extend productive working hours.
The Specification Of The Self Loading Concrete Mixer Truck
| Parameter | Unit | LTM10 |
| Vehicle Size (L × W × H) – Horizontal Rotation, Two-Way Driving | mm | 5050×2350×3500 (Lifting arm); 6400×2350×2730 (Drop arm) |
| Vehicle Size (L × W × H) – No Horizontal Rotation, Two-Way Driving | mm | 5250×2350×3300 (Lifting arm); 6650×2350×2700 (Drop arm) |
| Wheelbase | mm | 2180 |
| Track Width | mm | 1490 |
| Overall Weight | kg | 5500 |
| Engine | / | YN26GBZ |
| Power | kW | 55 |
| Gearbox | / | 265 integrated |
| Drive Axle | / | 1.8T Wheel side reduction axle |
| Tyre | / | 20.5/70-16 |
| Capacity of Bucket | m³ | 0.35 |
| Stirring Capacity | m³ | 1 |
| Reduction Ratio | / | 1:24 |
| Rotate Speed | laps/minute | ≥15 |
| Reducer | / | Made in China |
| Running Speed | km/h | 35 |
| Shaft Number Traction Type | / | 4×4 |
| Water Tank Capacity | L | 300 |
| Diesel Tank Capacity | L | 90 |
| Hydraulic Tank Capacity | L | 120+18 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ
A: Not necessarily. The engine power of a self-loading concrete mixer should be matched with its drum capacity, transmission, hydraulic system, terrain, working altitude, and operating conditions. Choosing an engine that is unnecessarily powerful may increase fuel consumption without providing a proportional increase in productivity, especially if the transmission and hydraulic systems remain unchanged. The engine should therefore be selected based on the machine's actual workload and jobsite requirements.
Q: Does a Larger Self-Loading Concrete Mixer Always Reduce Concrete Production Costs?
A: Not always. A larger self-loading concrete mixer can produce more concrete per batch, but it may also require more fuel, investment, and operating space. For projects with limited daily concrete demand or restricted working areas, a smaller mixer may offer better overall efficiency and lower operating costs. The ideal mixer capacity should be selected according to the required concrete output, site conditions, and project scale.
Q: What Self-Loading Concrete Mixer Dimensions Should I Consider for a Narrow Construction Site?
A: For a confined construction site, consider the machine's overall width, height, wheelbase, turning radius, bucket working range, and concrete discharge clearance. Sufficient space is needed not only for the self-loading mixer to pass through the site but also for loading aggregates, maneuvering, turning, and discharging concrete safely. Providing the site's access width and height restrictions in advance can help determine the most suitable mixer model.
Q: Which Tires Are Best for a Self-Loading Concrete Mixer Working on Muddy or Rocky Terrain?
A: Tire selection should match the specific jobsite conditions. For muddy roads, soft soil, and loose ground, deep-tread off-road tires can provide better traction and improve the self-loading concrete mixer’s mobility. For rocky construction sites, reinforced or heavy-duty tires may be more suitable because they offer greater resistance to punctures and sidewall damage. The tire type should be selected together with the machine's load, terrain, and operating conditions.
