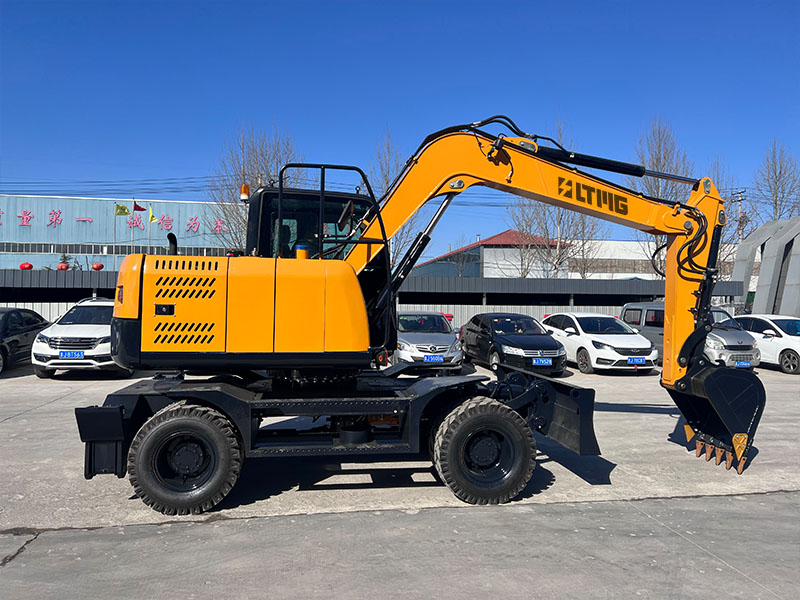

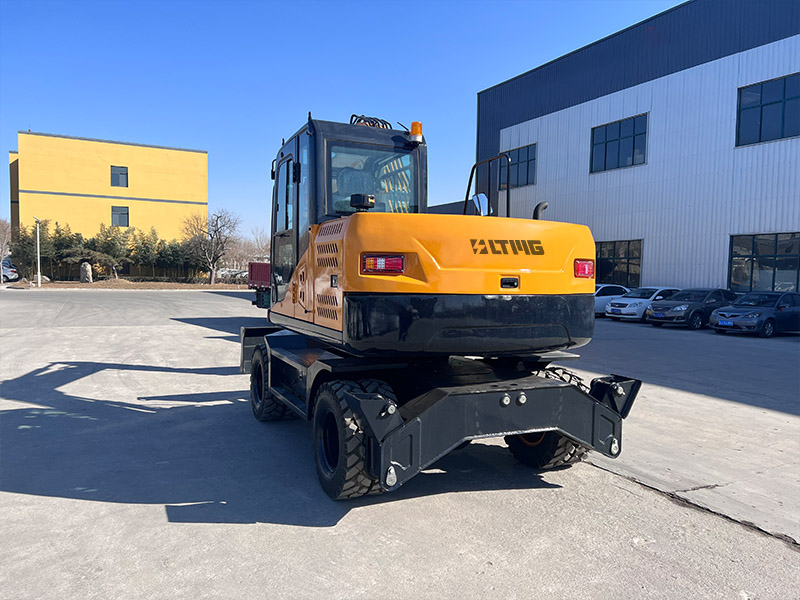

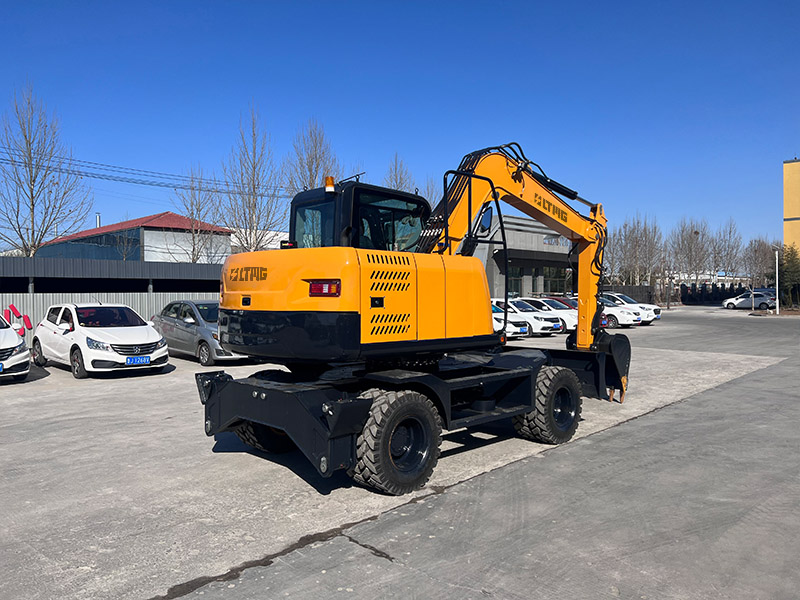

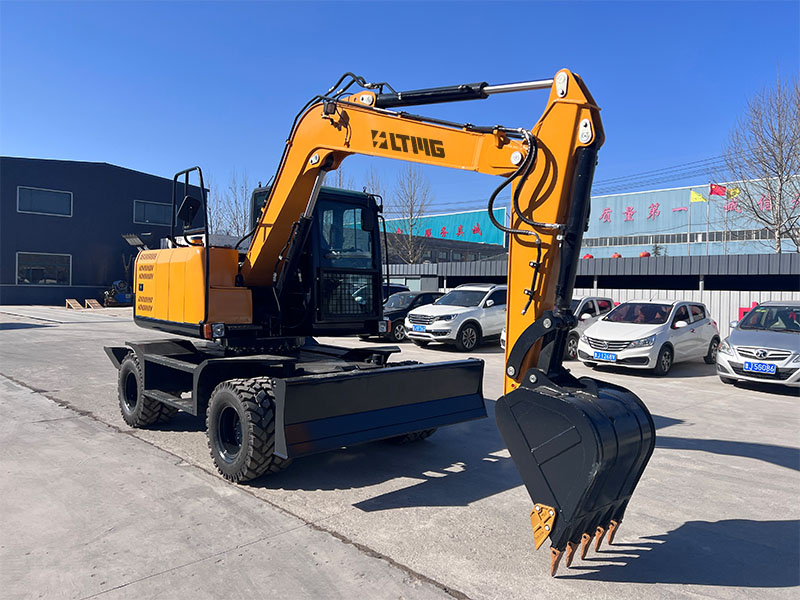

The 8.5 ton wheeled excavator is a user-friendly machine that adopts advanced turbocharging technology, dual pump confluence technology, improve operation speed, reinforced chassis, hydraulic power steering and wheel reduction axle, etc. It can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunications networks, farmland, gardens.
Model :
LWE85Operating Weight :
8500kgBucket Capacity :
0.28m³ODM/OEM :
SUPPORT
1. Adopting the same rolling plastic diesel tank as international first tier brands, making diesel cleaner and safer to work.
2. The layout of control valves, oil source valves, solenoid valves, etc. is reasonable, making maintenance more convenient.
3. The use of parallel radiators increases ventilation and greatly improves heat dissipation efficiency.
4. Four link push shovel, with increased lifting height and enhanced leveling function through good performance.
5. The wheeled front end loader incorporates advanced turbocharging technology, which enhances its overall performance and power output.
6. The excavator features a dual-pump convergence system, enabling it to achieve higher operational speeds and increased productivity.
7. The reinforced chassis ensures durability and stability even in challenging working conditions, allowing the machine to tackle demanding excavation projects with ease.
8. Equipped with hydraulic power steering system, providing effortless maneuverability, enhancing operator control and efficiency.
9. The wheel-end reduction axle allows for precise speed control, ensuring smooth and controlled movements during operation.
10. The 8.5 ton wheel excavator is designed with a high-reach boom and arm configuration, enabling it to reach greater depths and heights for efficient digging and loading.
11. The digger can be equipped with a variety of accessories and tools, such as buckets, steel nail clips, drilling devices, etc., to achieve a variety of operational functions, such as digging, shoveling, drilling, etc. It is able to cope with different construction tasks and earthworks needs.
Technical Parameters of 8.5 Ton Wheel Loader
Performance Parameters | Unit | LWE85 |
Operating Weight | Kg | 8500 |
Engine Model | YC4DK85 | |
Rated Power | Kw | 62.5KW/2200RPM |
Bucket Capacity | m³ | 0.28 |
Max Digging Force | Kn | 56 |
Swing Speed | rpm | 0-11 |
Traveling Speed | km/h | 0-30 |
Gradeability | ° | 20 |
Operating Range | ||
Max. Digging Radius | mm | 5923 |
Max. Digging Depth | mm | 3556 |
Max. Digging Height | mm | 7364 |
Max. Dumping Height | mm | 5537 |
Tail Swing Radius | mm | 1730 |
Overall Dimensions | ||
Overall Length | mm | 6087 |
Overall Width | mm | 2394 |
Overall Height | mm | 3010 |
Mini.Ground Clearance | mm | 264 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
More About LTMG Machinery

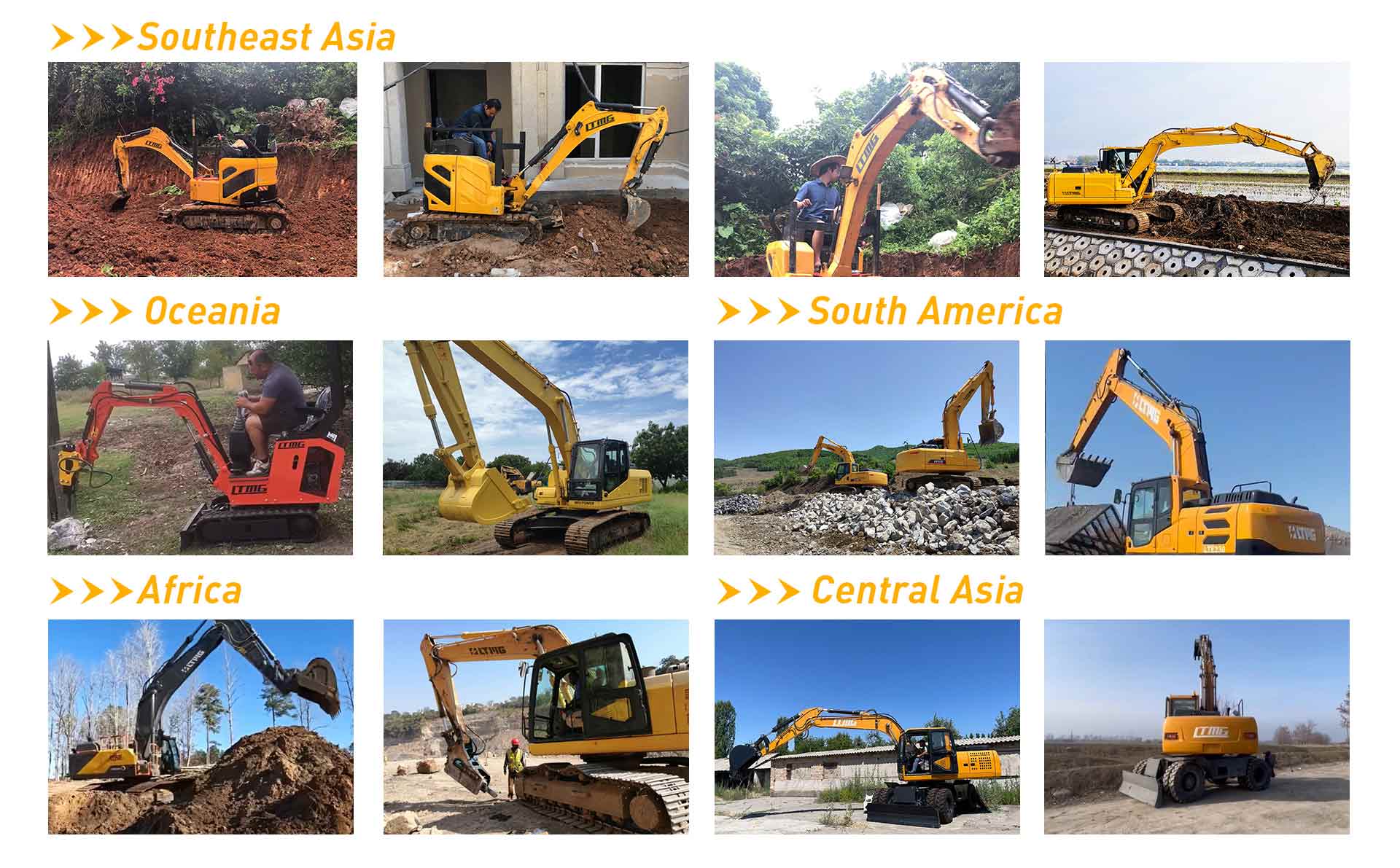

The Application Of LTMG Excavator
FAQ
Q:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
Q: Is it possible to customize the machine to meet our specific requirements, including adding our logo?
A: Absolutely, our machines can be tailored to your specific needs, and we offer the option to include your logo.
Q: What is the typical delivery time for your machine orders?
A: Normally, it takes approximately 30 days for us to deliver our standard machines. However, for customized machines, the delivery time will be determined based on individual negotiations with our clients.
