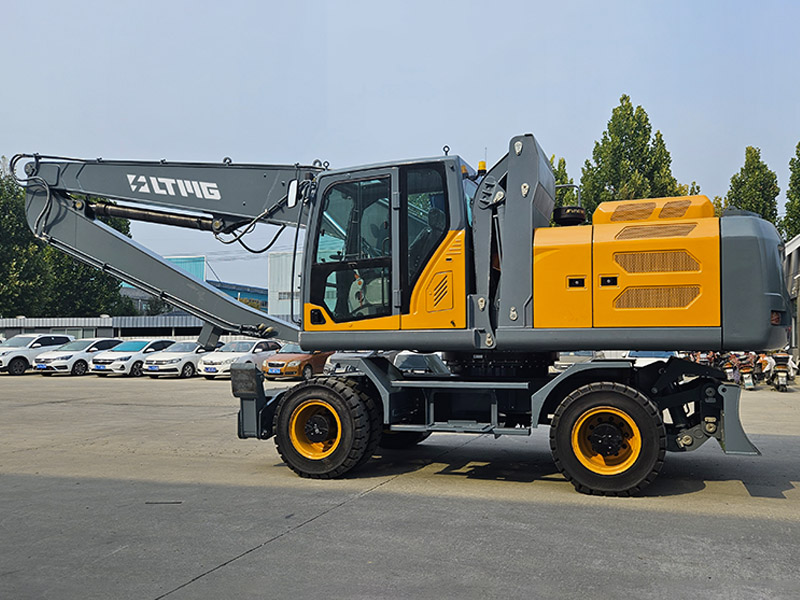

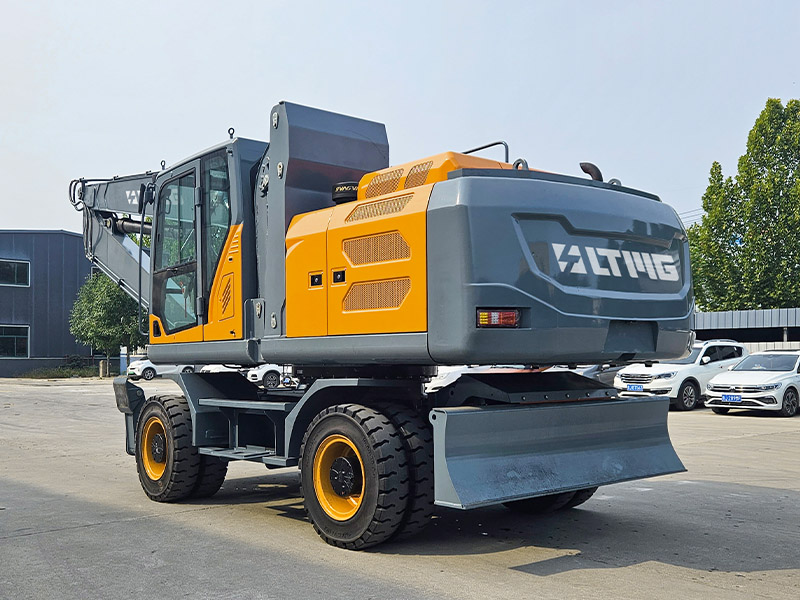

21 Ton Long Reach & High Reach Excavator
21 Ton Long Reach & High Reach Excavator
21 Ton Long Reach & High Reach Excavator
21 Ton Long Reach & High Reach Excavator

21 Ton Long Reach & High Reach Excavator

This 21-ton wheel excavator is a versatile mid size excavator for construction, landscaping, and utility projects. By default, it is a standard mid-size machine, with a customizable long boom and long arm available for extended reach and high-reach tasks. Equipped with a high-power imported engine and internationally renowned pump and valve components, this long reach excavator delivers reliable performance, fuel efficiency, and operator comfort. Ideal for projects needing flexibility, precision, and productivity.

  • Model :

    LWE210
  • Operating Weight :

    21000KG
  • Bucket Capacity :

    1.1m³
  • ODM/OEM :

    Avaliable
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

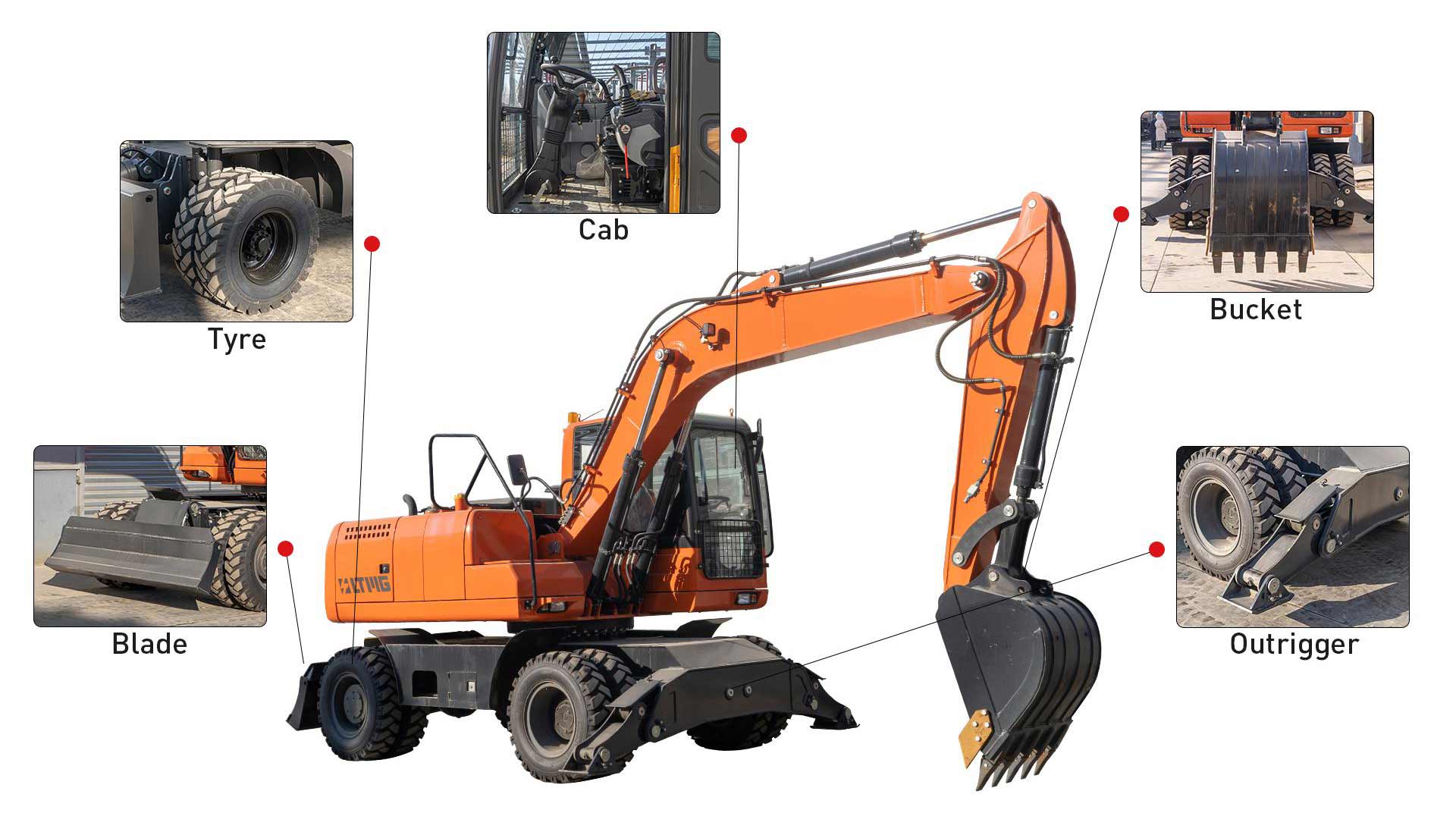

The Features of LWE210 Wheel Excavator

  • Customizable Long Boom & Long Arm
    • Extend your reach for deep excavation or high-reach tasks. Tailor the boom length to your project requirements.
  • Versatile Attachment Compatibility
    • Switch easily between buckets, grapples, breakers, and other attachments to handle diverse tasks efficiently.
  • High-Power Imported Engine
    • Delivers exceptional performance with lower fuel consumption and reduced emissions for environmentally responsible operations.
  • Premium Pump & Valve Brands
    • Internationally recognized hydraulic components ensure smooth, precise, and reliable operation.
  • Enhanced Operator Comfort & Safety
    • Spacious, ergonomic cabin with anti-slip surfaces, improved visibility, and intuitive controls for a fatigue-free work environment.

Wheel Excavator





LTMG]

The Technical Parameter of LWE210 Wheel Excavator

Model   LWE210
Bucket Capacity  1.1
Swing Speed  kw/h 0-12
Gradeablity  ° 25
Max.Bucket Digging Force  kn 140
Max.Arm Digging Force  kn 100
Engine Model    Cummins
Power/revolution speed    153/2000
Tire Model    10-20
System Pressure   34
Machine size
Dimension Length*Width*Height  mm 10006x2500x3515
Cabin Height  mm 3216
Axle Base  mm 2850
Wheel(track) Distance  mm 1920
Minimum ground clearance  mm 380
Tail Swing Radius mm 2412
Boom Length mm 11.5
Arm length mm 5.5
Overall weight kg 6.3t
Working range
Max.Digging Height  mm 10329
Max.Dumping Height  mm 7397
Max.Digging Depth  mm 6052
Max.Vertical Digging Depth  mm 5682
Max.Digging Radius  mm 10282
Min. Swing Radius  mm 3458
Max.Dozer Blade Lifting Distance  mm 410
Max.Dozer Blade Cutting Distance mm 125

With technological innovation our product configuration and parameters will continue to change without notice;

 if there is any doubt the specific confirmation of our international trade sales shall prevail;

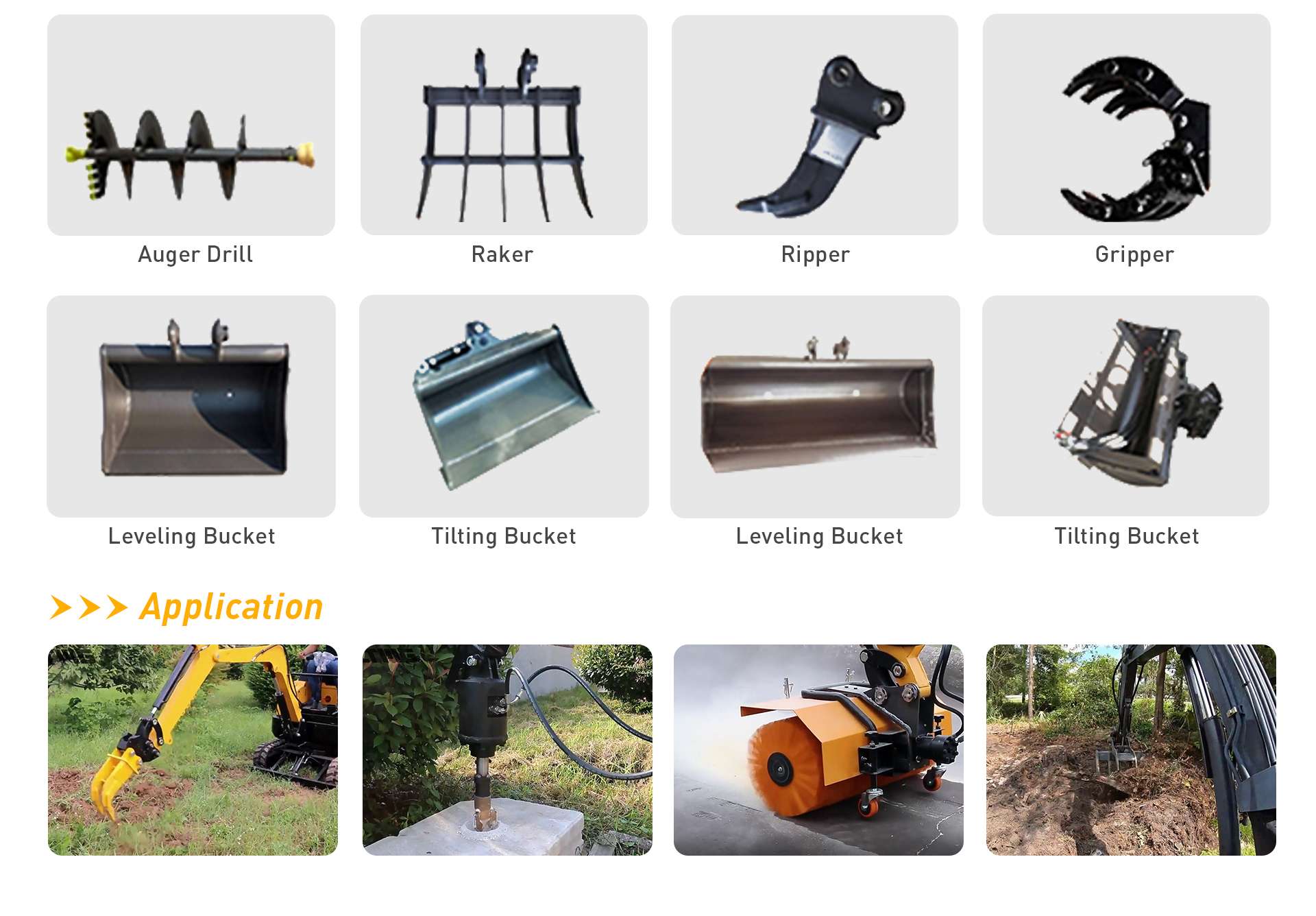

Optional Attachments
LTMG Attachment

Shipping and Packaging
Excavator in stock



More about LTMG Company

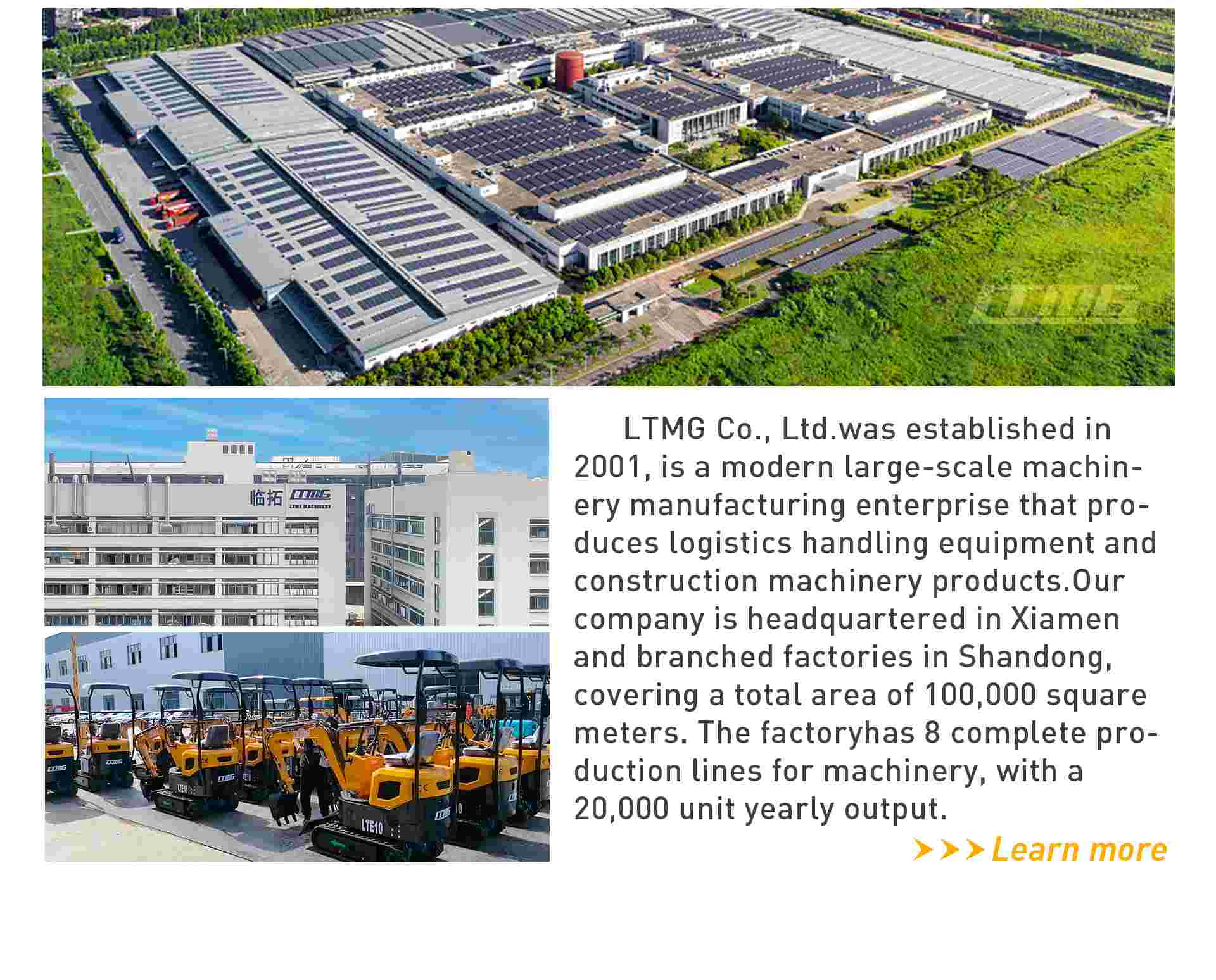

LTMG Company

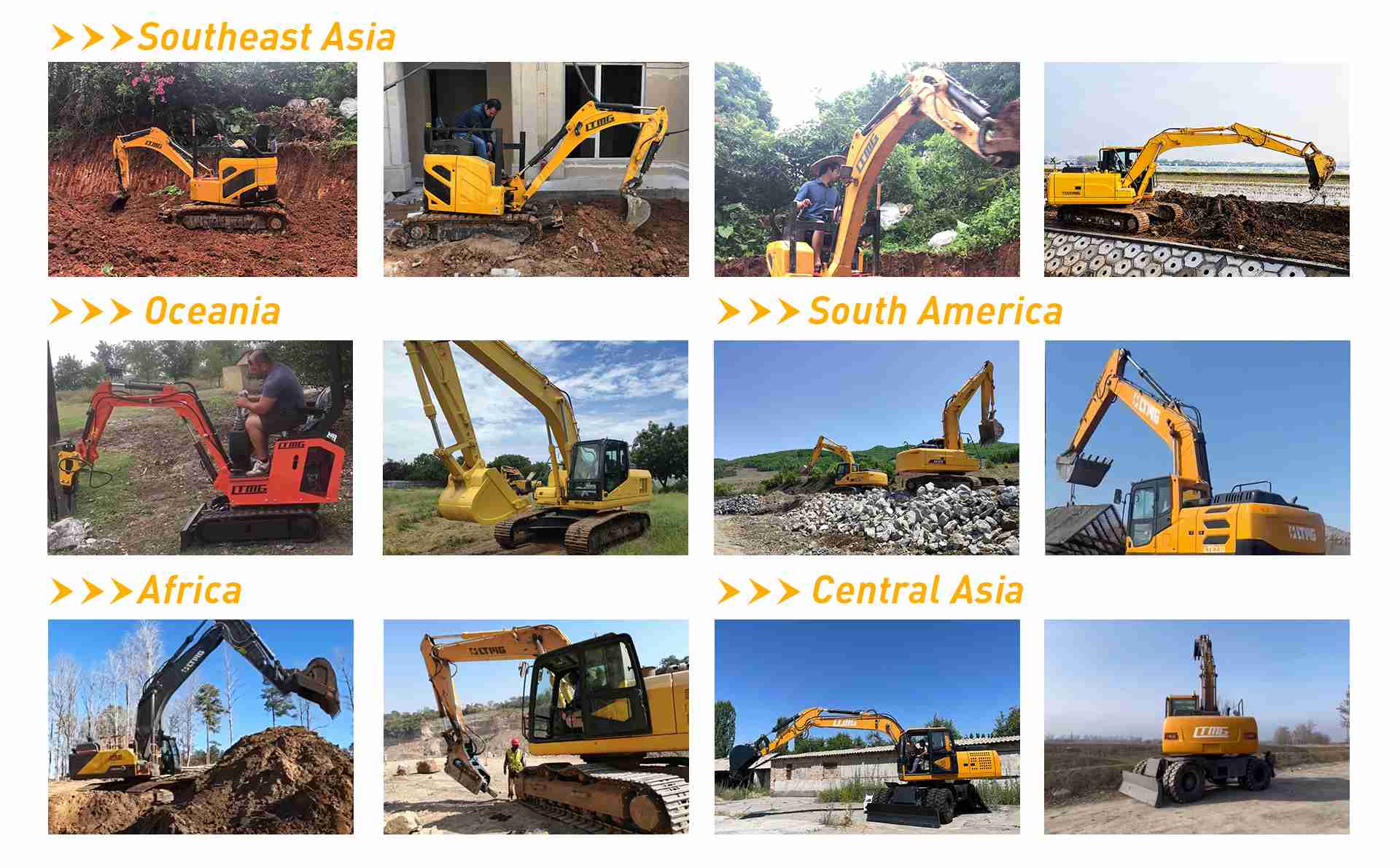

Customer Feedback
LTMG Customer feedback
contact us

FAQ

What are long reach excavators?

Long reach excavators are specially designed machines with extended booms and arms, enabling them to reach deeper excavations or higher structures that standard excavators cannot. They are ideal for projects requiring precision in hard-to-reach areas.



Can the arm of the excavator be customized?

Yes, our 21-ton long arm excavator can be tailored with a customizable boom to meet your project’s specific needs, offering extra reach or digging depth.



Can the excavator be equipped with various attachments?

Absolutely! Our long reach excavator supports buckets, grapples, breakers, and more, allowing you to handle multiple tasks with a single machine.



How efficient is the excavator in terms of fuel consumption and environmental impact?
The 21-ton long boom high reach excavator is fuel-efficient and meets stringent emissions standards, minimizing operating costs and environmental impact without compromising performance.
