Model :
T180EEngine :
Weichai WD10G200E25Operating Weight :
16540kgPower :
180hpODM/OEM :
Support
1. Adopts advanced Komatsu D60E-8 technology for high efficiency, strong reliability, and stable performance.
2. Optional ROPS canopy ensures wide visibility and operator safety, ideal for forestry and rough terrain operations.

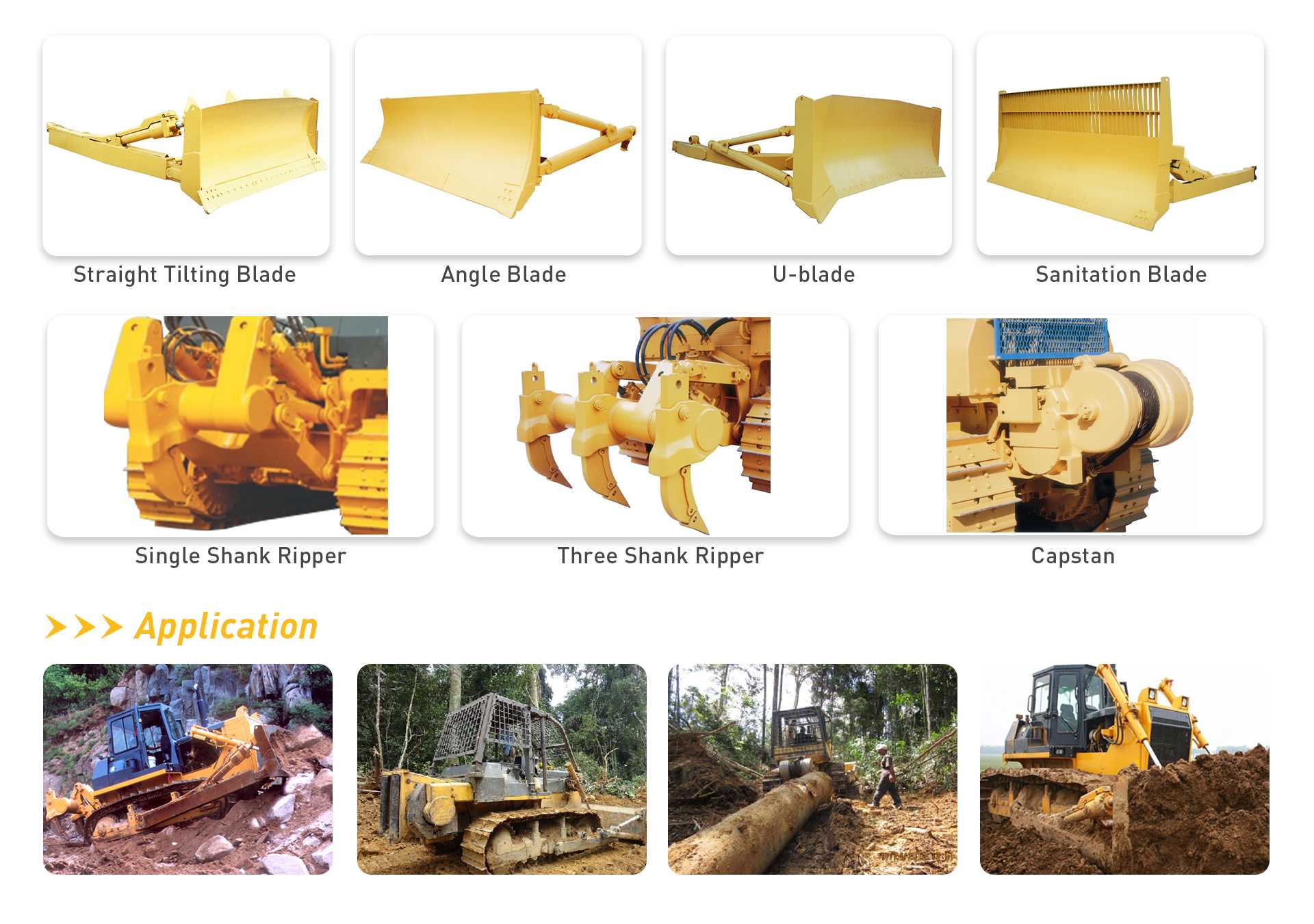

3. Multiple attachments available, including straight tilt blade, angle blade, U-blade, winch, ripper, and track shoes of 510mm or 560mm.
4. Powerful 180HP engine delivers consistent performance for heavy-duty pushing and demanding ground conditions.
T180E Bulldozer Parameters
|
Model/Type |
Weichai WD10G200E25 |
|
6-cylinder, In-line, Water-cooled, 4-stroke, Turbocharged, Direct Injection |
|
|
Rated Power (kW) |
148 |
|
Rated Speed (rpm) |
1,850 |
|
Cylinders - Bore x Stroke (mm) |
6 - 126 x 130 |
|
Displacement (L) |
9.726 |
|
Min. Fuel Consumption (g/kWh) |
≤215 |
|
Max. Torque (Nm/rpm) |
920 / 1,150 |
|
Starting System |
24V, 5.5kW |
|
Transmission System |
|
|
Main Clutch |
Wet, multi-disc, with inertia brake, hydraulically assisted manual control |
|
Transmission |
Helical gear constant mesh, forced lubrication, manual control (5F/4R) |
|
Center Drive |
Spiral bevel gear, single reduction, splash lubrication |
|
Steering Clutch |
Wet, multi-disc, spring-applied, hydraulically released, hydraulic control |
|
Steering Brake |
Wet, band-type, manual with hydraulic booster pedal |
|
Final Drive |
Two-stage spur gear reduction, splash lubrication |
|
Pump Type |
Gear Pump 07441-67503 |
|
Working Pressure (MPa) |
14 |
|
Flow Rate (L/min) |
250 (at 1850 rpm) |
|
Cylinder Type |
Double-acting piston |
|
Lift Cylinders (Qty - Bore x Rod x Stroke mm): |
2 - 110 x 65 x 1026 |
|
Tilt Cylinder (Bore x Rod x Stroke mm): |
160 x 70 x 140 |
|
Type |
Oscillating equalizer bar, bogie suspension |
|
Upper Rollers |
2 per side |
|
Track Rollers |
7 per side (4 single-flange, 3 double-flange) |
|
Track Link |
Sealed assembly, single grouser |
|
Shoes per Side |
39 |
|
Shoe Width (mm) |
510 |
|
Pitch (mm) |
203.2 |
|
Track on Ground (mm) |
2,635 |
With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
T180E Bulldozer Parameters
Different blade options—such as straight, angle, and U-blades—allow the bulldozer to handle various earthmoving tasks with precision and efficiency. The ripper attachment further enhances performance by breaking up hard soil and compacted ground, improving productivity and versatility across diverse working conditions.
Customer Reviews from the Job Site
Customers in Botswana praised our bulldozers for their strong performance and durability in harsh terrains. With reliable power, fuel efficiency, and operator comfort, the machines exceeded expectations in productivity and service life. LTMG’s quality and customer-centered design continue to earn trust worldwide.
Built by Experts, Backed by Certification
FAQ
Q: What engine does the bulldozer use?
A: Our bulldozers are equipped with reliable engines such as Cummins, Weichai, or Yuchai, offering strong power, low fuel consumption, and easy maintenance.
A：What type of blade can be installed?
Q: We provide straight blades, angle blades, and U-blades for different working conditions and materials.
Q: Is the bulldozer suitable for hot or cold climates?
A: Yes. Our machines are designed for all-weather operation with optional cooling and heating systems for extreme environments.
Q: What is the warranty period?
A: We offer a 12-month or 2,000-hour warranty, whichever comes first, with full after-sales support.
