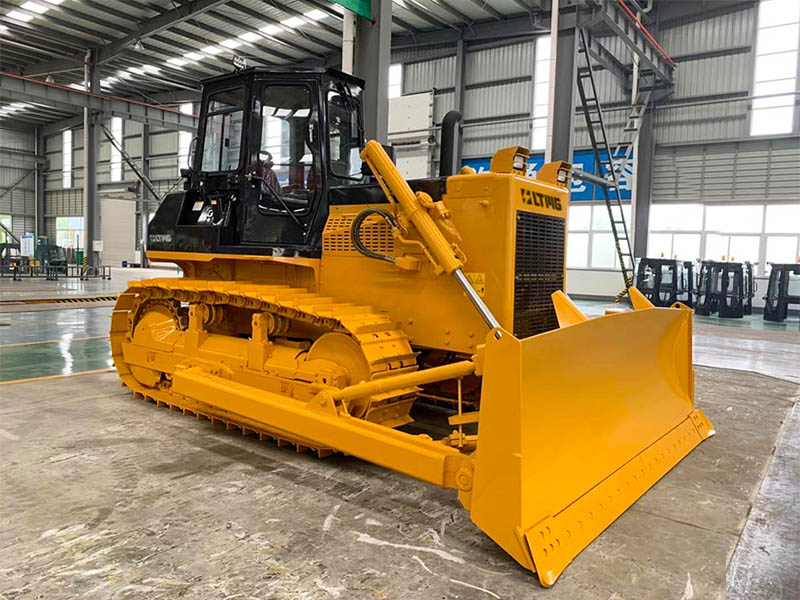

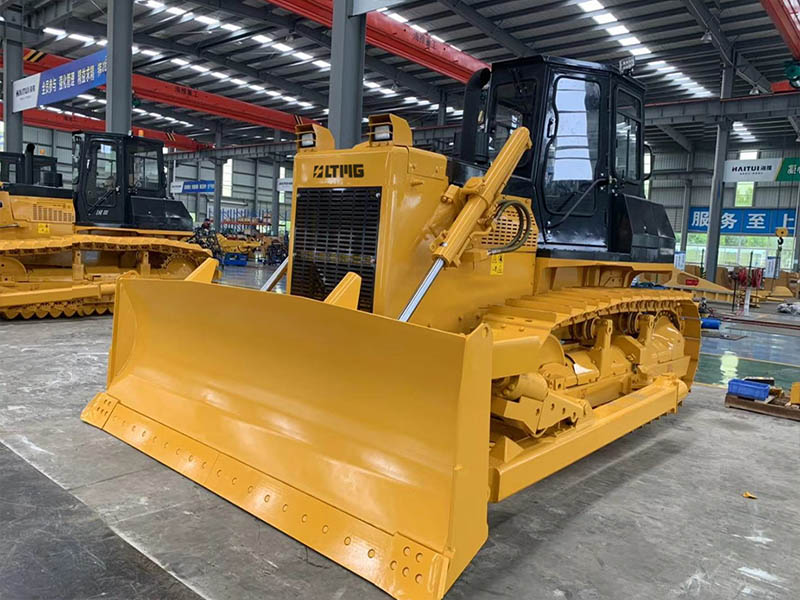

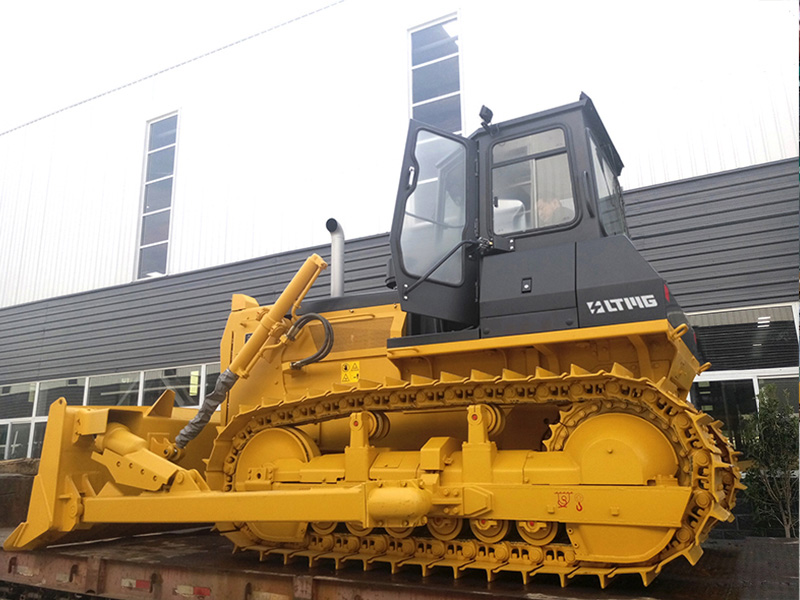

T160 is equipped with straight tilting blade, hexahedron cab, 510mm track shoe, powerful performance
Model :
T160Engine :
Weichai WD10G178E2Operating Weight :
164000KGPower :
160hpODM/OEM :
SUPPORT
1. Hexagonal cab - a comfortable working environment. 160 housepower bulldozer T160 is equipped with a hexagonal cab, with spacious interior and good vision; it has good shockproof performance and damping chamber
2. Cooling system - powerful cooling efficiency. The closed cooling system is adopted to greatly increase the evaporation temperature and heat dissipation efficiency of the cooling water, so as to ensure the normal operation of the engine at the ideal temperature and improve the working performance.
3. Powerful chassis - cost saving. Chassis system bulldozers are the most prone to wear parts. The chassis parts of the T160 adopt Japanese heat treatment technology, which is stable in quality, durable, and the service life of the chassis parts is higher than the average level.
T160 Bulldozer Parameters
| Model | T160 | |
| Type | 160HP Standard Hydraulic Crawler Type | |
| Engine | Weichai WD10G178E25 | |
| Displacement | L | 9.726 |
| Rated power（kw/rpm） | kw/rpm | 131/1850 |
| Max.torque | N.m/rpm | 830/1000-1200 |
| Operating weight | T | 16.4T |
| Dimension(no ripper) | mm | 4990×3440×3110 |
| Min ground clearance | mm | 405 |
| Ground pressure | MPa | 0.067 |
| Track gauge | mm | 1880 |
| Dozing capacity | m³ | 4.55 |
| Blade width | mm | 3390 |
| Blade height | mm | 1150 |
| Max drop below ground | mm | 540 |
| Track shoe width | mm | 510 |
| Pitch | mm | 203.2 |
| Quantity of track link | 37 | |
| Quantity of Carrier rollers | 4 | |
| Quantity of Track rollers | 12（8 Double+4 Single） | |
| Max pressure | MPa | 14 |
| Discharge | L/min | 213 |
| Max tractor force | KN | 146 |
| Grade ability | ° | 30° |
| Forward Speed | Km/h | F1:0-3.29 |
| F2:0-5.82 | ||
| F3:0-9.63 | ||
| Rear Speed | Km/h | R1:0-4.28 |
| R2:0-7.59 | ||
| R3:0-12.53 |
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
