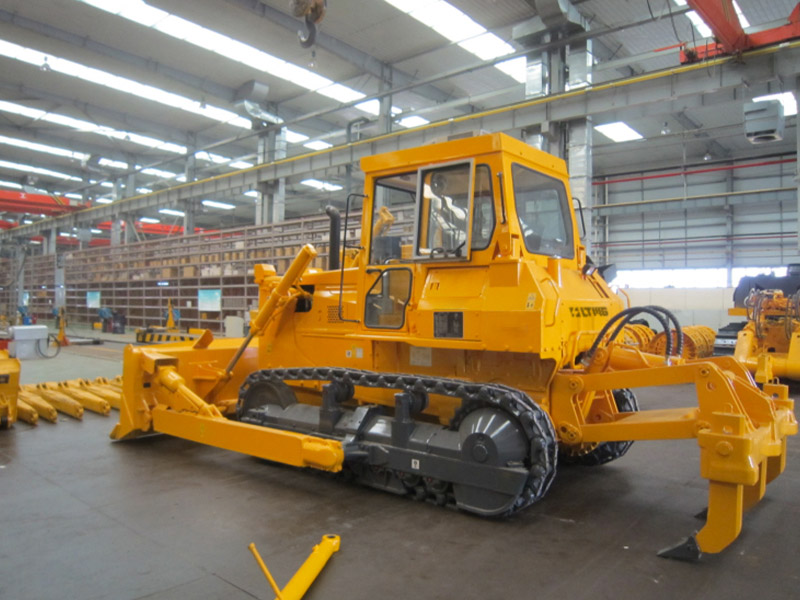

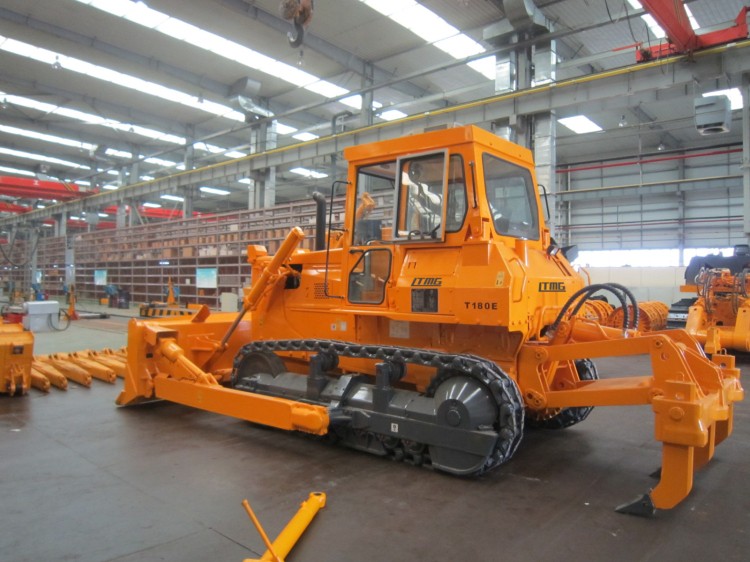

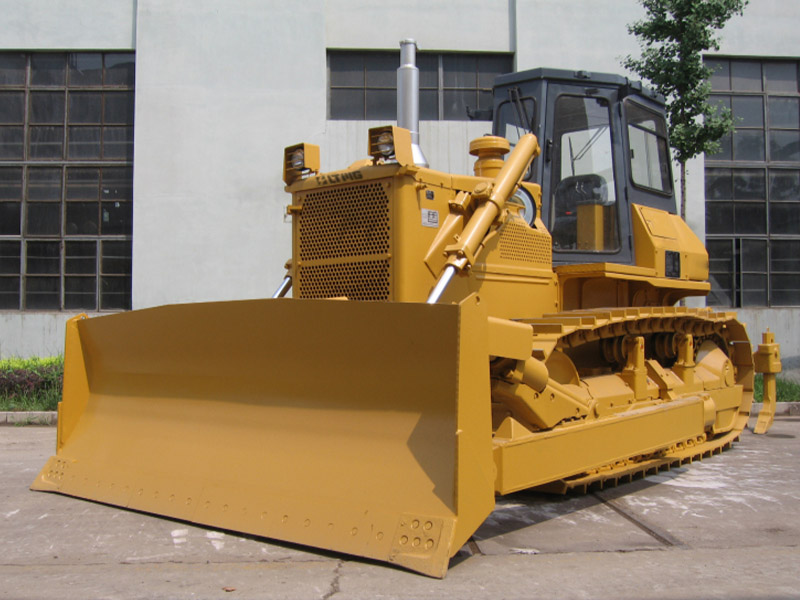

The T180 bulldozer equipment powered by the formidable 175kw Cummins NT855-C280S10 engine is designed to excel in both infrastructure and industrial construction projects, enhancing operating efficiency throughout your projects.
Model :
T180Engine :
CUMMINSOperating Weight :
18800KGPower :
180 HPODM/OEM :
SUPPORT
1.Certified under the ISO9001:2000 quality management system.
2.Equipped with the powerful CUMMINS NT855-C280S10 engine. Alternatively, SHANGCHAI SC11CB200G2B1 or WEICHAI WD10G200E25 for option.
3.With a flywheel power of 180HP(135kw) at a rated speed of 1850rpm, the bulldozer equipment delivers impressive strength and effiency.
4.Designed to withstand the harshest tropical and desert enviorments, it can be customized with an enlarged water tank and 3-stage air cleaning to meet customers' requirements.

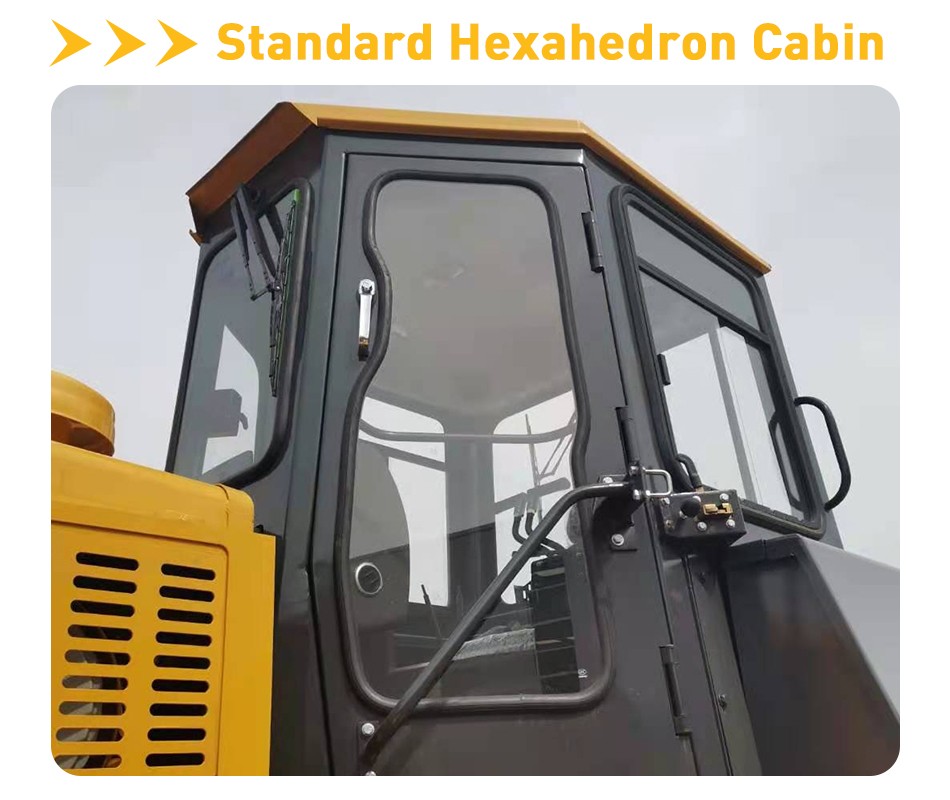

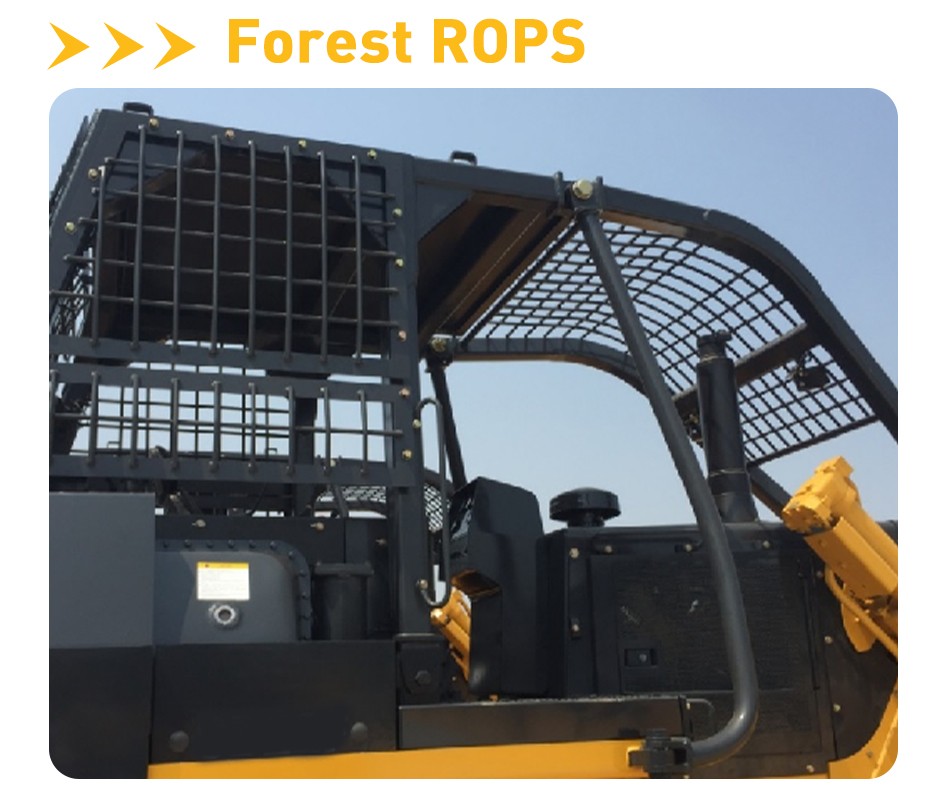

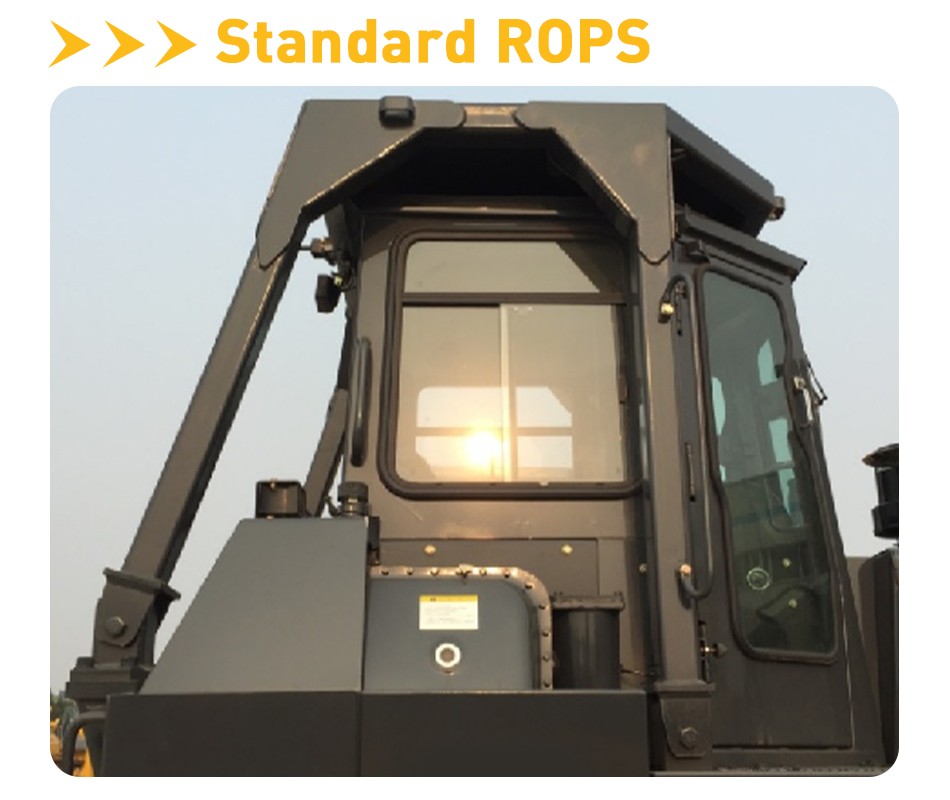

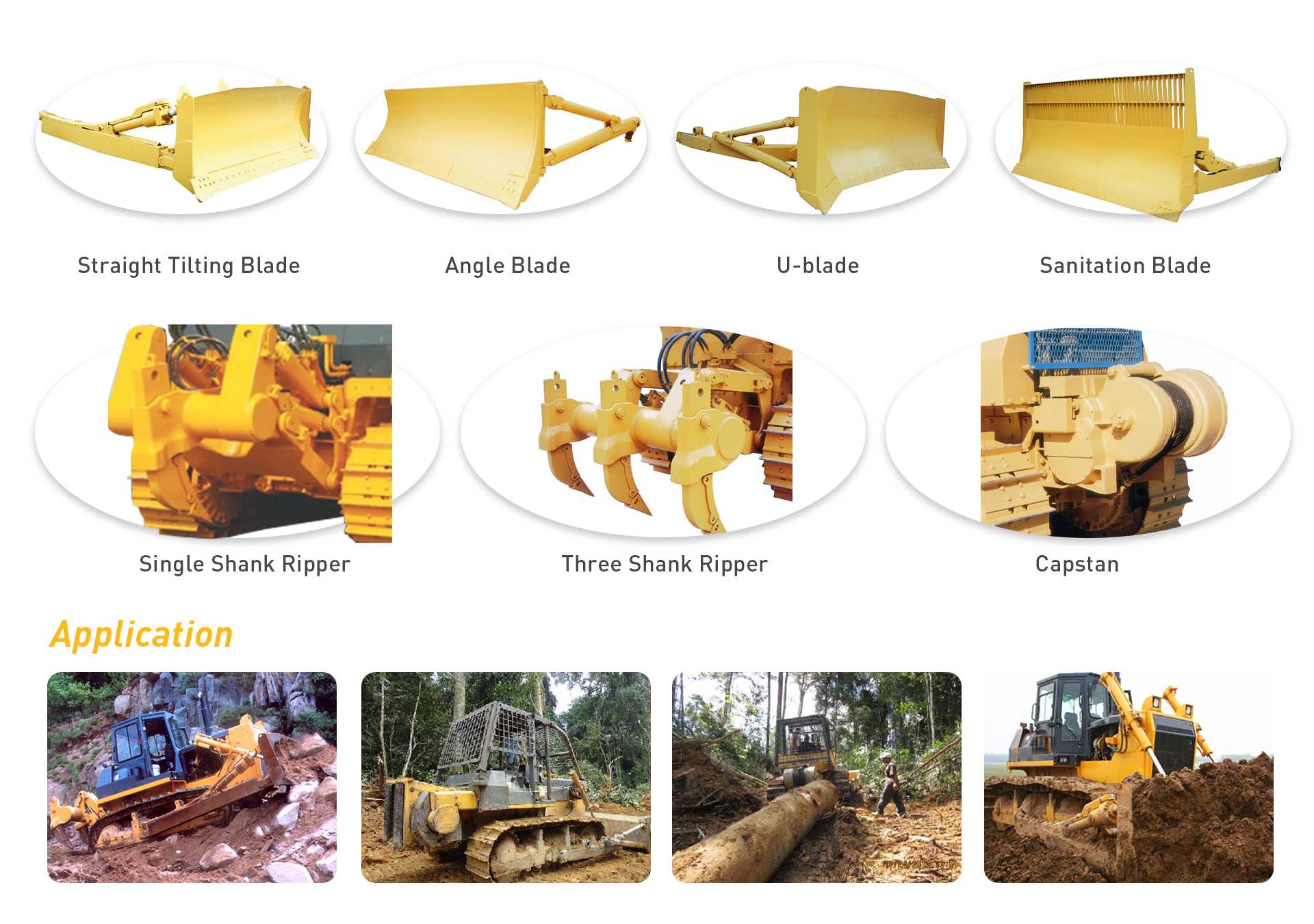

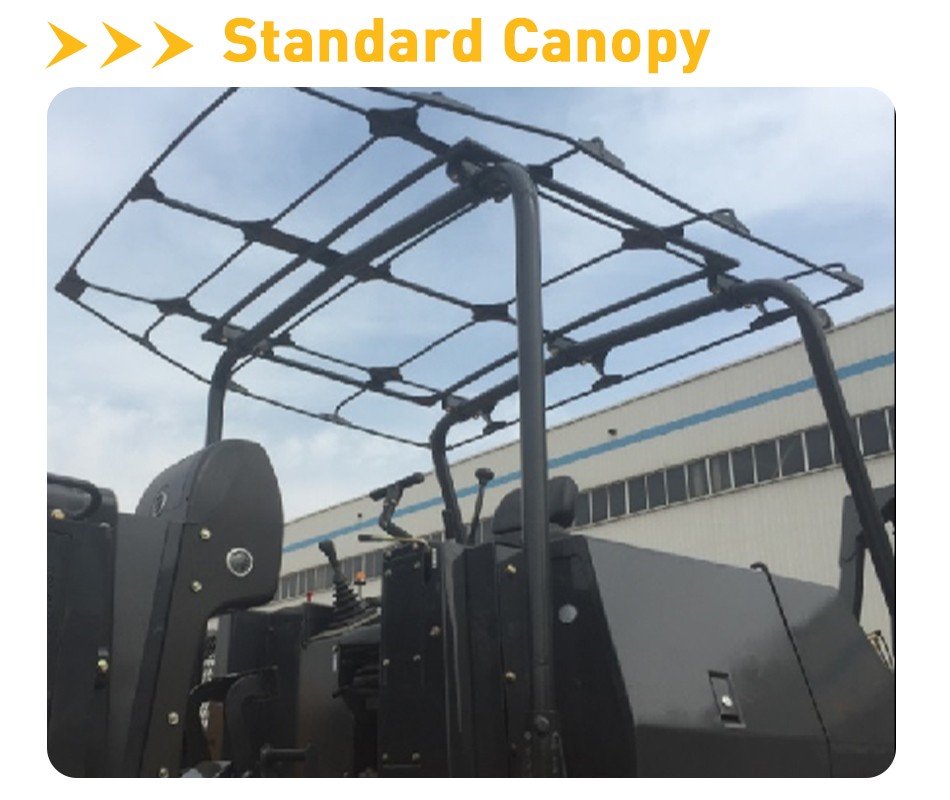

5.A range of optional attachments are avaliable to enhace versatility. Choose from the straight tilt blade, angle blade, U-blade, ROPS cabin, canopy,3-shank ripper, air conditioner, 510mm track shoes, or the wider 610mm track shoes.
T180 Bulldozer Equipment Parameters
| Model | T180 | |
| Type | 180HP Standard Hydraulic Crawler Type | |
| Engine | Cummins NT855-C280S10/ Shangchai SC11CB200G2B1/ Weichai WD10G200E25 | |
| Displacement | L | Cummins:14 Shangchai:10.5 Weichai:9.73 |
| Rated power | kw/rpm | 135/1850 |
| Max.torque | N.m/rpm | Cummins:877/1250, Shangchai:870/1200, Weichai:920/1100 |
| Operating weight | KG | 18800kg |
| Min ground clearance | mm | 400 |
| Ground pressure | MPa | 0.069 |
| Track gauge | mm | 1880 |
| Blade Capacity | m³ | 4.5 |
| Blade Width x Height | mm | 3416×1149/ 3970×1050/ 4064×1386 |
| Track shoes width | mm | 510 |
| Pitch | mm | 203.2 |
| Quantity of track shoes | 39(each side) | |
| Quantity of carrier rollers | 2(each side) | |
| Quantity of track rollers | 7/each side (4-single flange, 3-double flange) | |
| Working pressure | MPa | 13.7 |
| System Discharge | L/min | 250(at revolution of 1850rpm) |
| Max. Pulling Force | KN | 147.2 |
| Grade ability | ° | 30 |
| Forward Speed | KM | 1st 0～3.9 |
| 2nd 0～6.8 | ||
| 3rd 0～10.9 | ||
| Reverse Speed | KM | 1st 0～5.0 |
| 2nd 0～8.6 | ||
| 3rd 0～13.7 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
The Video of the T180 Bulldozer Equipment
FAQ About the Bulldozer Equipment
1.What are the main components of a bulldozer?
A bulldozer typically consists of a sturdy chassis, a powerful engine, a blade mounted on the front, and robust tracks for enhanced mobility. The blade is the key component used for pushing and leveling the materials during operation.
2.What is the delivery date and warranty time of LTMG bulldozer equipments?
Generally about 20-30 days, according to different products, the warranty period is 12 months after shipment or 2000 working hours.
3. What Certificates do we have?
All products meet the requirements of CE & ISO9001 quality system.
