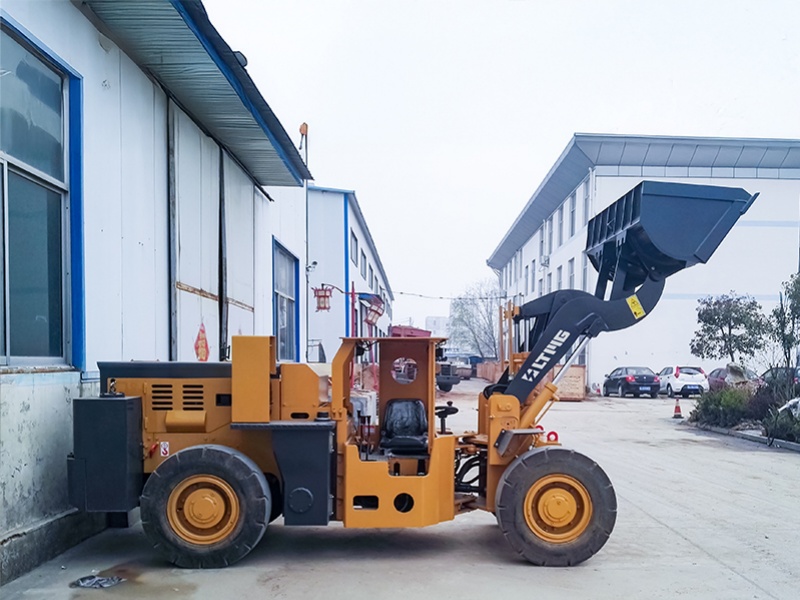

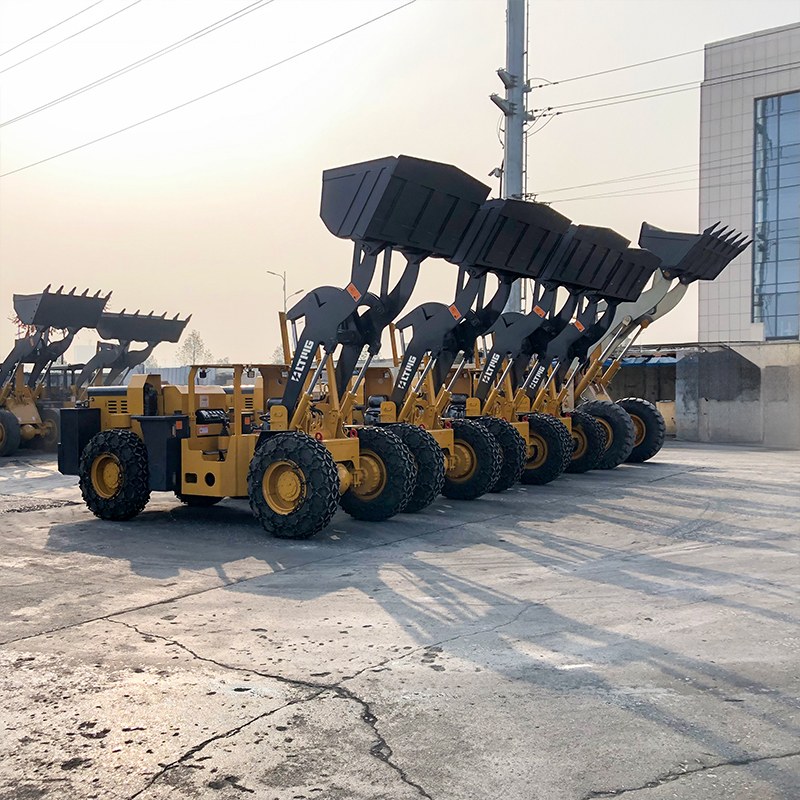

The 2 ton underground wheel loader is designed for confined mining environments such as tunnels and narrow underground roadways. With a compact structure, small turning radius, and high-torque engine, it delivers stable performance and efficient underground material handling.
Model :
LTW20Load Capacity :
2000kgBucket Capacity :
1.0m³ODM/OEM :
Support
LTW20 2 Ton Underground wheel loader Parameters
| Item | Specification |
| Model | LTW20 |
| Bucket Capacity | 1.0m³ |
| Rated Load | 2.0 t |
| Operating Weight | 6.0 t |
| Speed | 0-19 km/h |
| Forward Gear | I 0-6.5 / II 0-19 km/h |
| Reverse Gear | I 0-6 / II 0-18 km/h |
| Grade Ability | 15° |
| Overall Dimension (L*W*H) | 5400*1800*1850 mm |
| Turning Radius (Inner/Outer) | 3100 / 5550 mm |
| Min. Ground Clearance | 290 mm |
| Wheel Base | 2700 mm |
| Wheel Tread | 1370 mm |
| Max. Dumping Height | 1700 mm |
| Dumping Reach | 935 mm |
| Engine Model | YTO LR4A3Z-22 / CUMMINS 4BTA3.9-C80 |
| Rated Power | 70 / 60 kW |
| Tire Model | 15/70-18 or 9.75-18 |
With technological innovation, our product configuration and parameters will continue to change without notice; If there is any doubt, the specific confirmation of our international trade sales shall prevail.

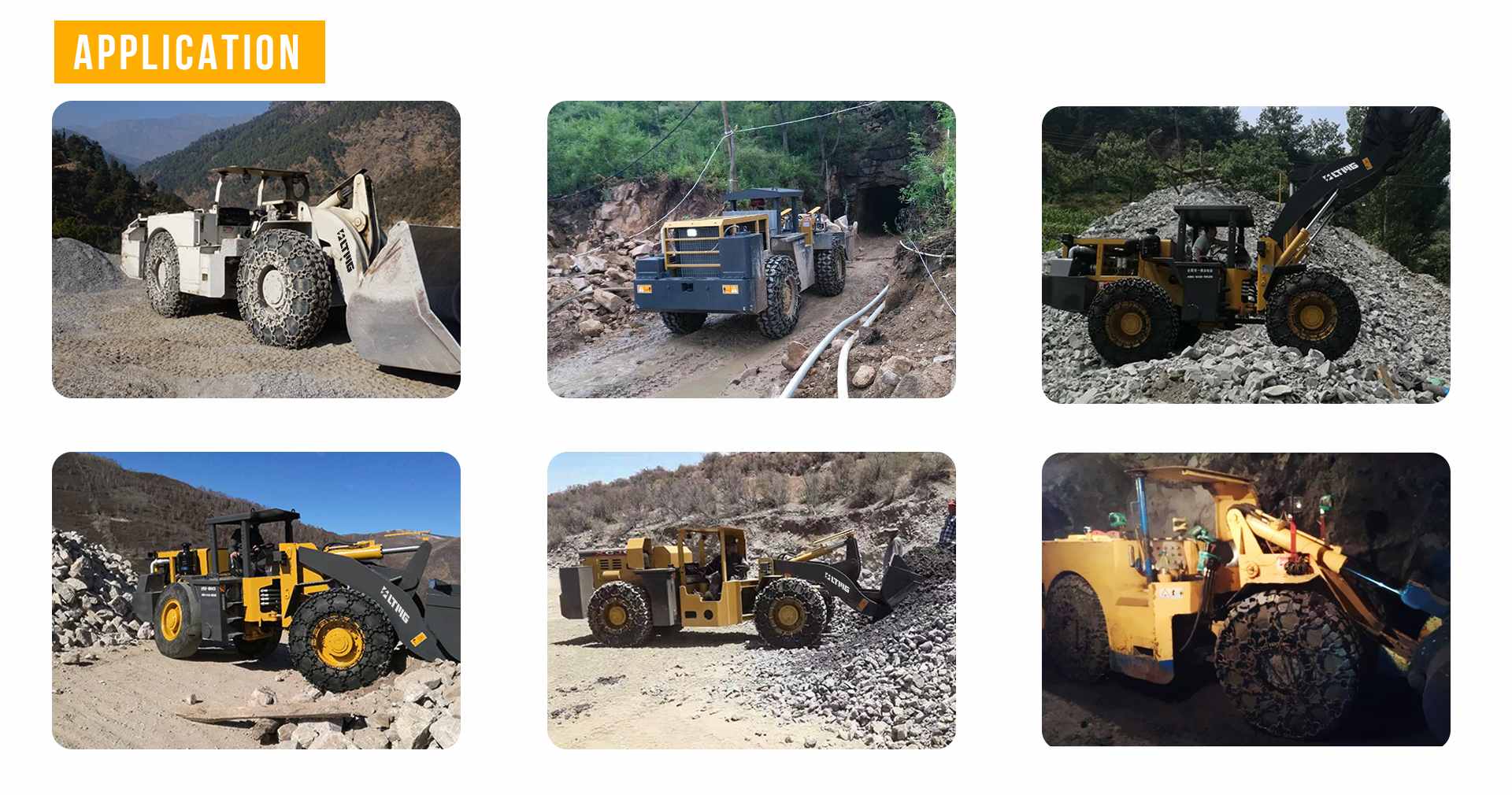

Efficient Underground Mining

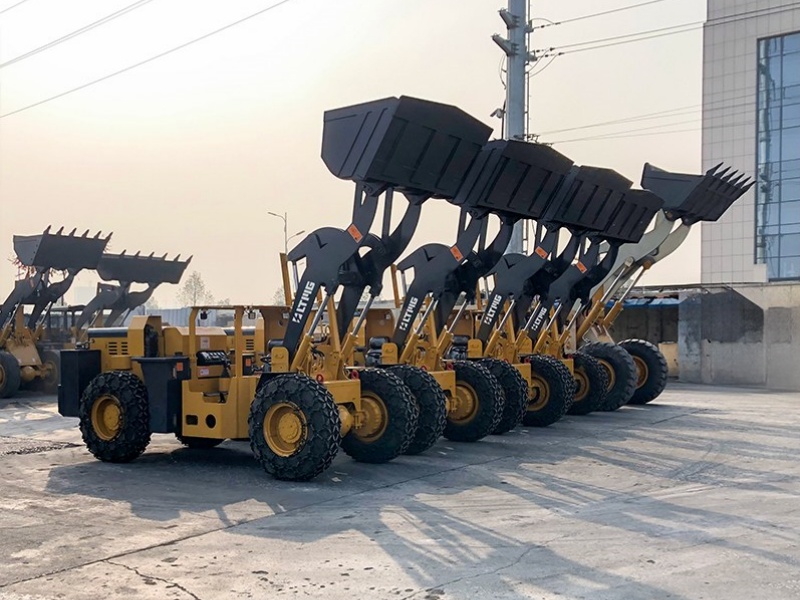

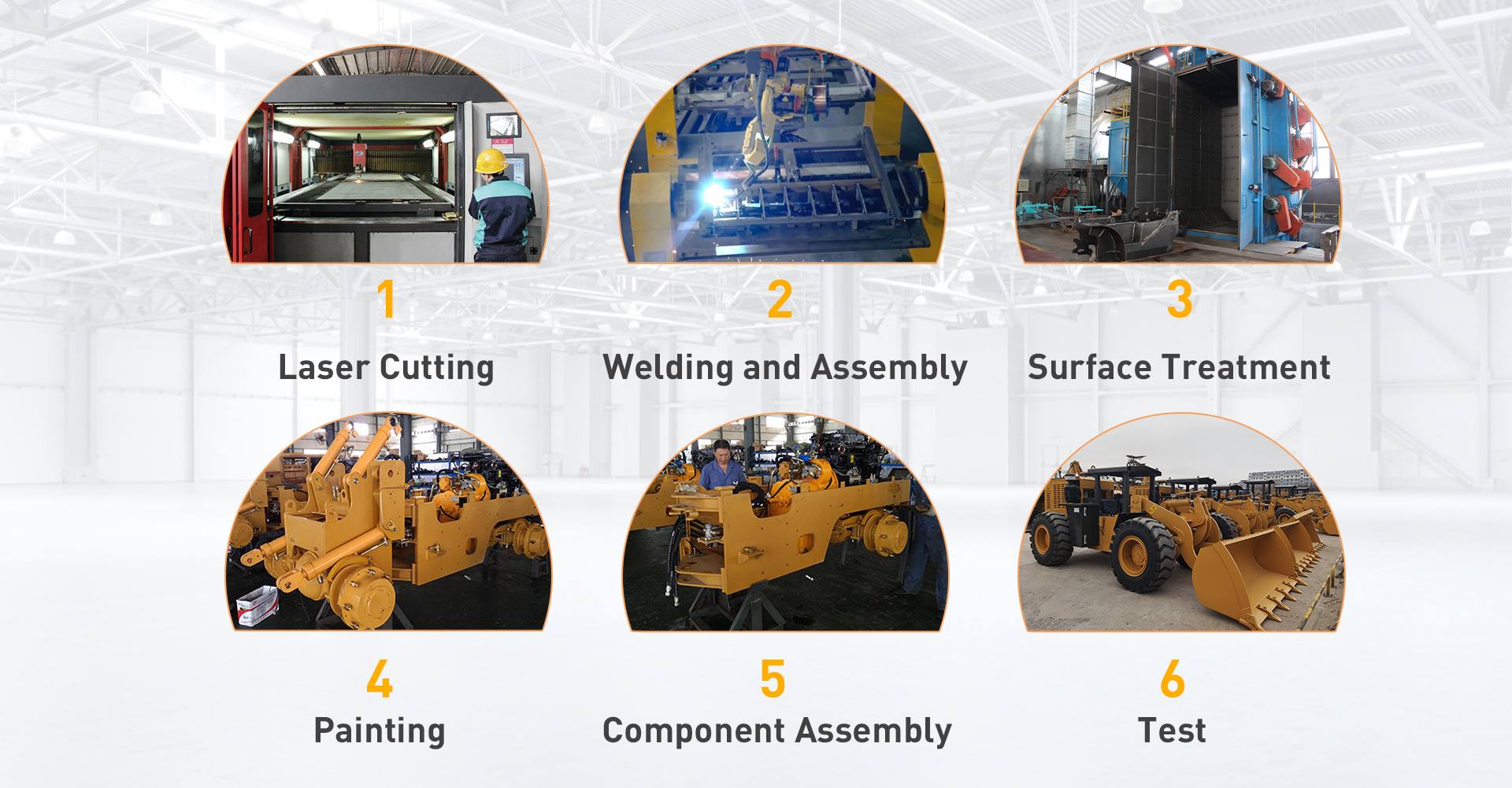

Factory-Built for Reliability
Efficient Underground Mining
Real Customer Feedback in Action
Frequently Asked Questions
1. What is an underground wheel loader used for?
An underground wheel loader is used for loading, hauling, and transporting materials in tunnels and confined mining environments.
2. Why use a compact loader in underground mining?
A compact or small underground wheel loader is better suited for narrow spaces, offering improved maneuverability and efficiency in tunnel operations.
3. What is the difference between a mining wheel loader and standard loader?
A mining wheel loader is designed for harsh underground conditions, with a compact structure, stronger traction, and safety systems adapted for underground mining equipment.
