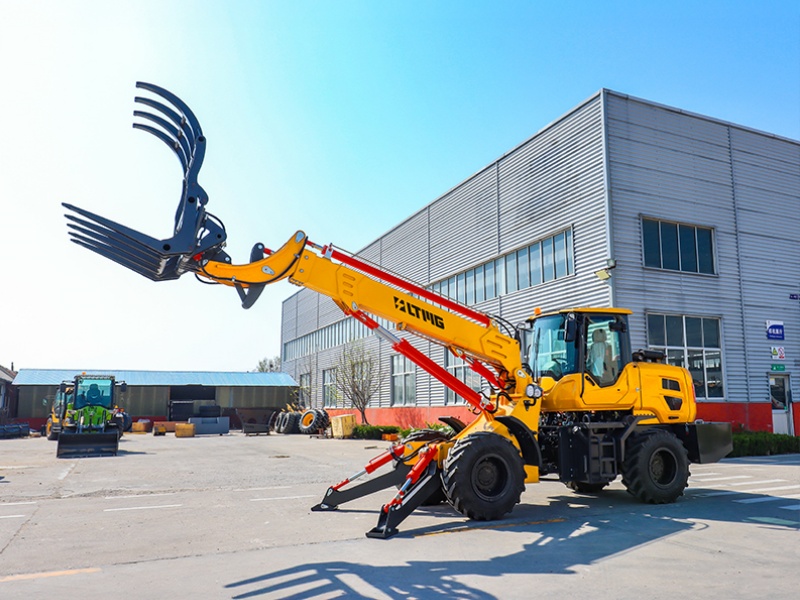

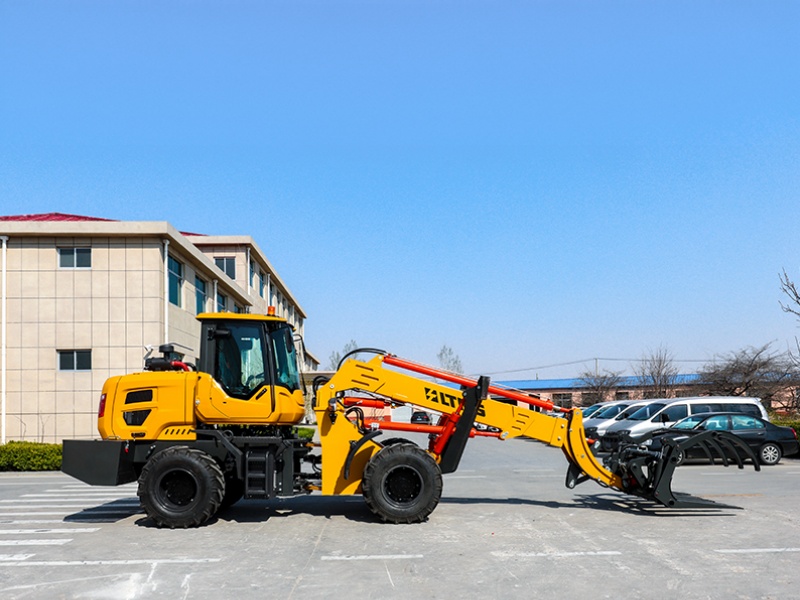

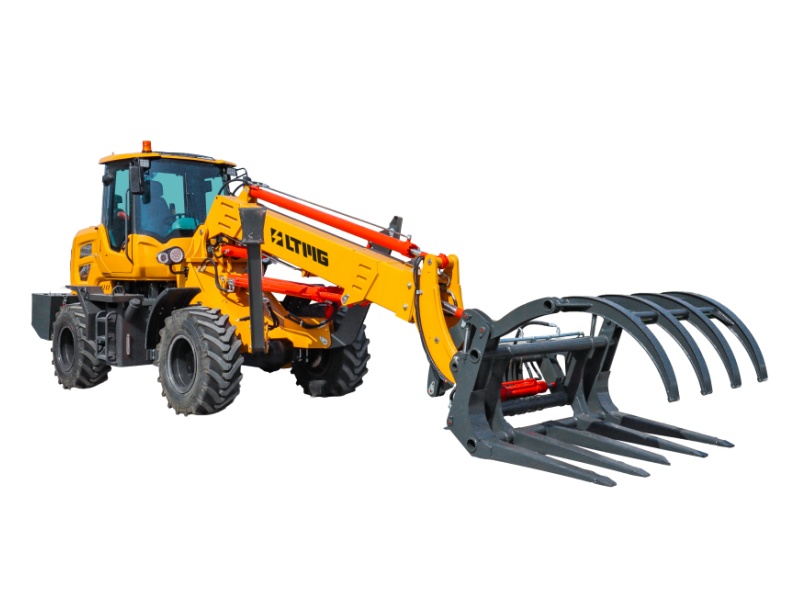

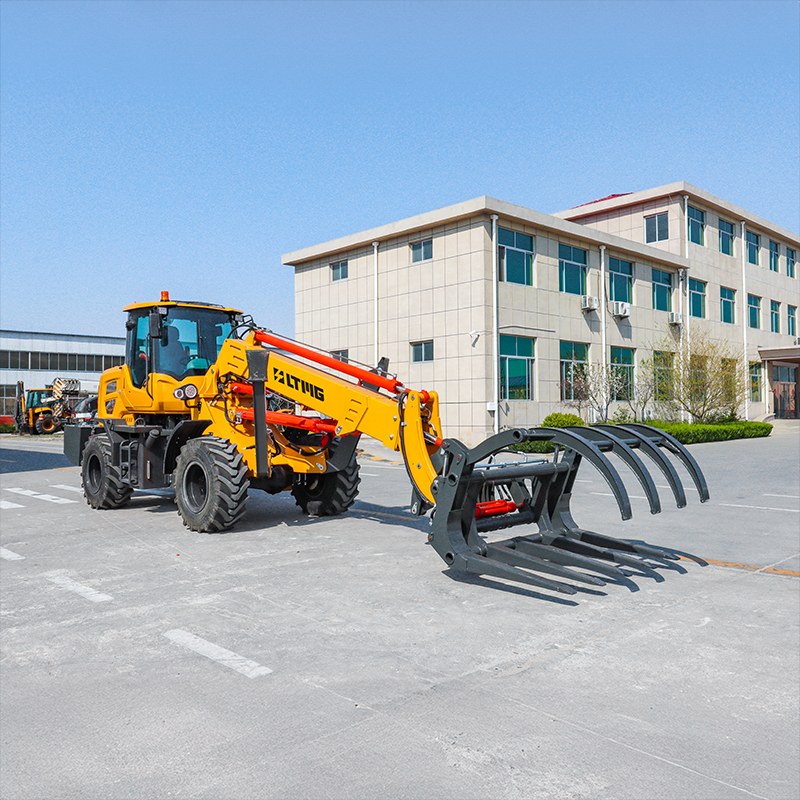

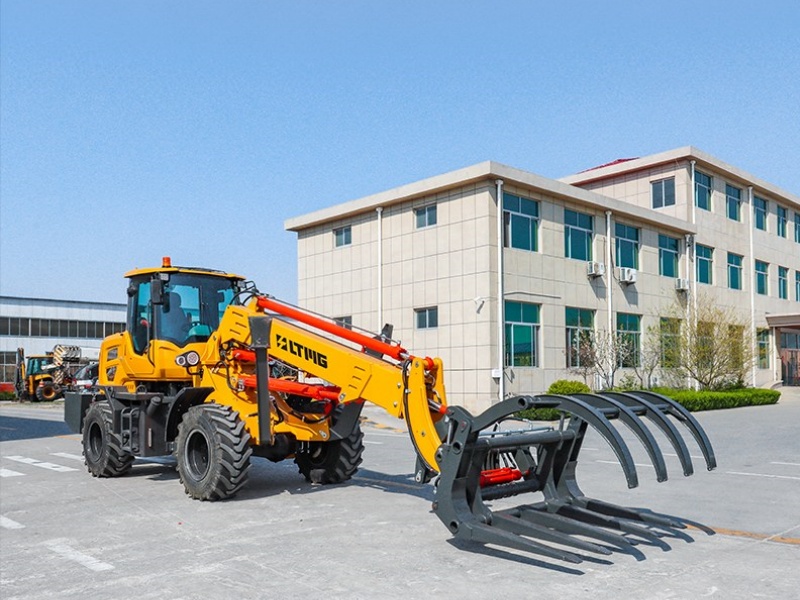

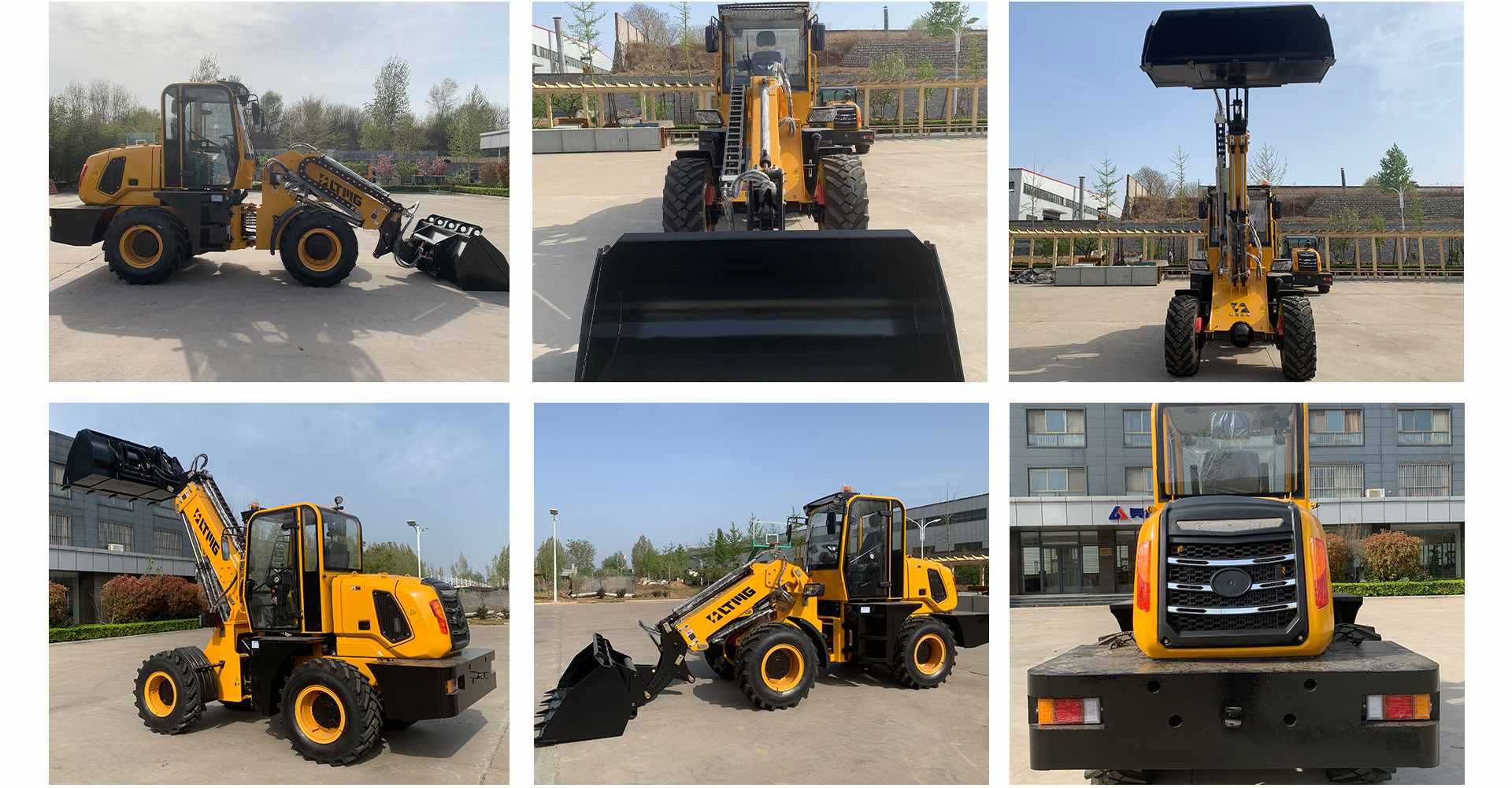

This 2.5 Ton Telescopic Loader features a telescopic boom and all-terrain tires, delivering reliable lifting and material handling on uneven surfaces. Its multi-functional design supports a wide range of attachments, making it ideal for construction sites, farms, and industrial yards. Compact, powerful, and highly maneuverable, it ensures efficient performance across various applications.
Model :
LT925TOperating Weight :
2500kgBucket Capacity :
2m³ODM/OEM :
Support
* Telescopic Boom Design: Flexible lifting height adapts to various loading and stacking operations.
* Powerful Drive System: The Engine provides sufficient power for stable and efficient performance under full load.
* All-Terrain Capability: Off-road tires and chassis design handle mud, sand, and construction sites.
* Precise Hydraulic Control: Smooth operation and fast lifting speed for frequent tasks.

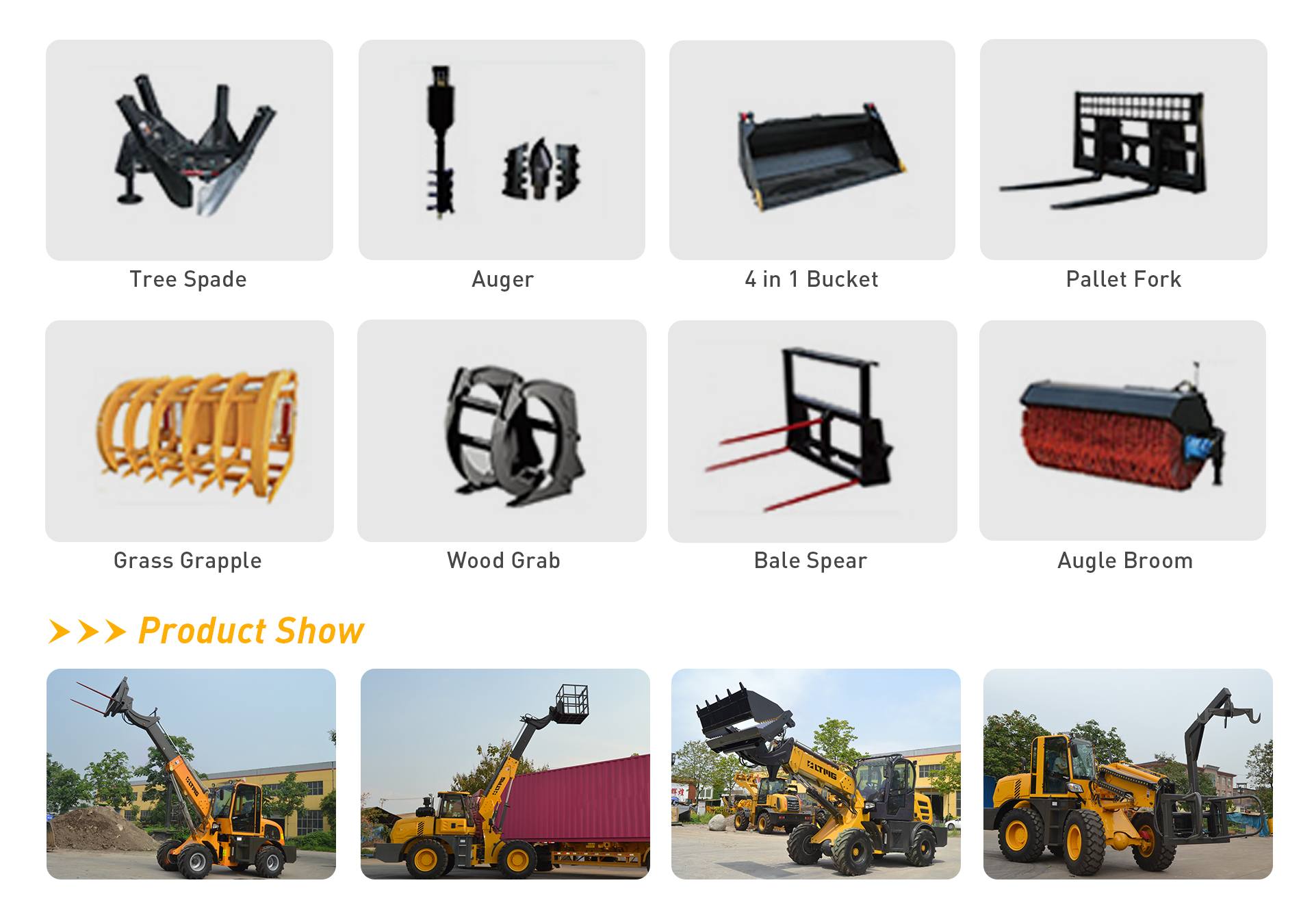

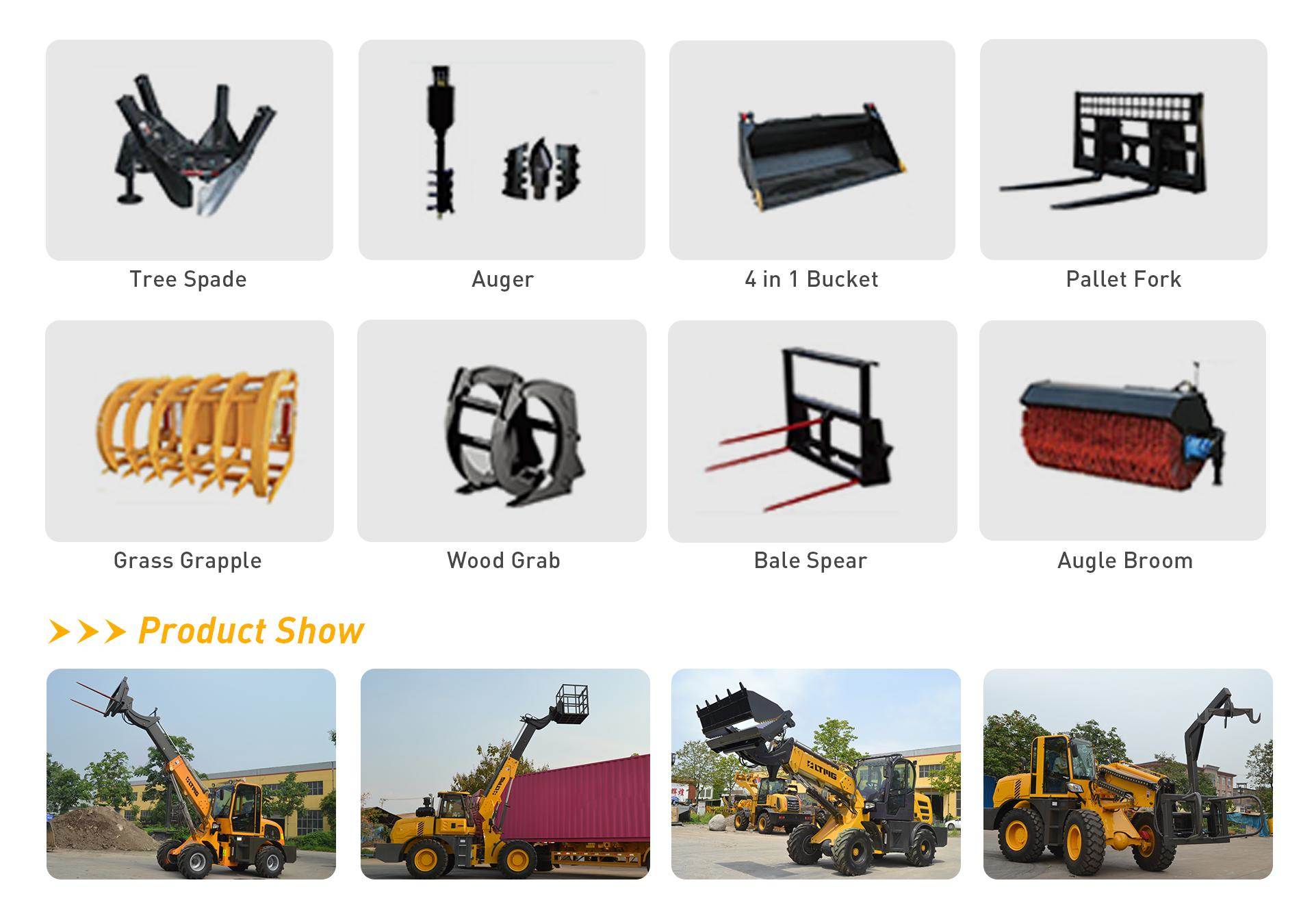

* Versatile Attachments: Supports multiple tools for loading, lifting, and handling operations.
2.5 Ton Telescopic Front-end loader Parameter
| Specification | 7m Model | 9m Model |
| Overall Dimensions (L*W*H) | 7350 * 2000 * 2850 mm | 8750 * 2000 * 2850 mm |
| Minimum Ground Clearance | 320 mm | 320 mm |
| Total Weight | 6700 kg | 7000 kg |
| Maximum Speed | 35 km/h | 35 km/h |
| Maximum Gradeability | 35° | 35° |
| Minimum Turning Radius | 5330 mm | 5330 mm |
| Maximum Lifting Height | 7000 mm | 9000 mm |
| Maximum Load | 2500 kg | 2500 kg |
| Maximum Unloading Height | 4800 mm | 6800 mm |
| Maximum Unloading Distance | 1600 mm | 2500 mm |
| Bucket Width | 2000 mm | 2000 mm |
| Engine Model | Yunnei YN4102 Supercharged | Yunnei YN4102 Supercharged |
| Rated Power | 76 kW | 76 kW |
| Gearbox | Front 2, Rear 2 | Front 2, Rear 2 |
| Tire Specifications | 16/70-20 | 16/70-20 |
| Service Brakes | Air to Caliper Disc Brake | Air to Caliper Disc Brake |
| Drive Type | Four-wheel Drive | Four-wheel Drive |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail

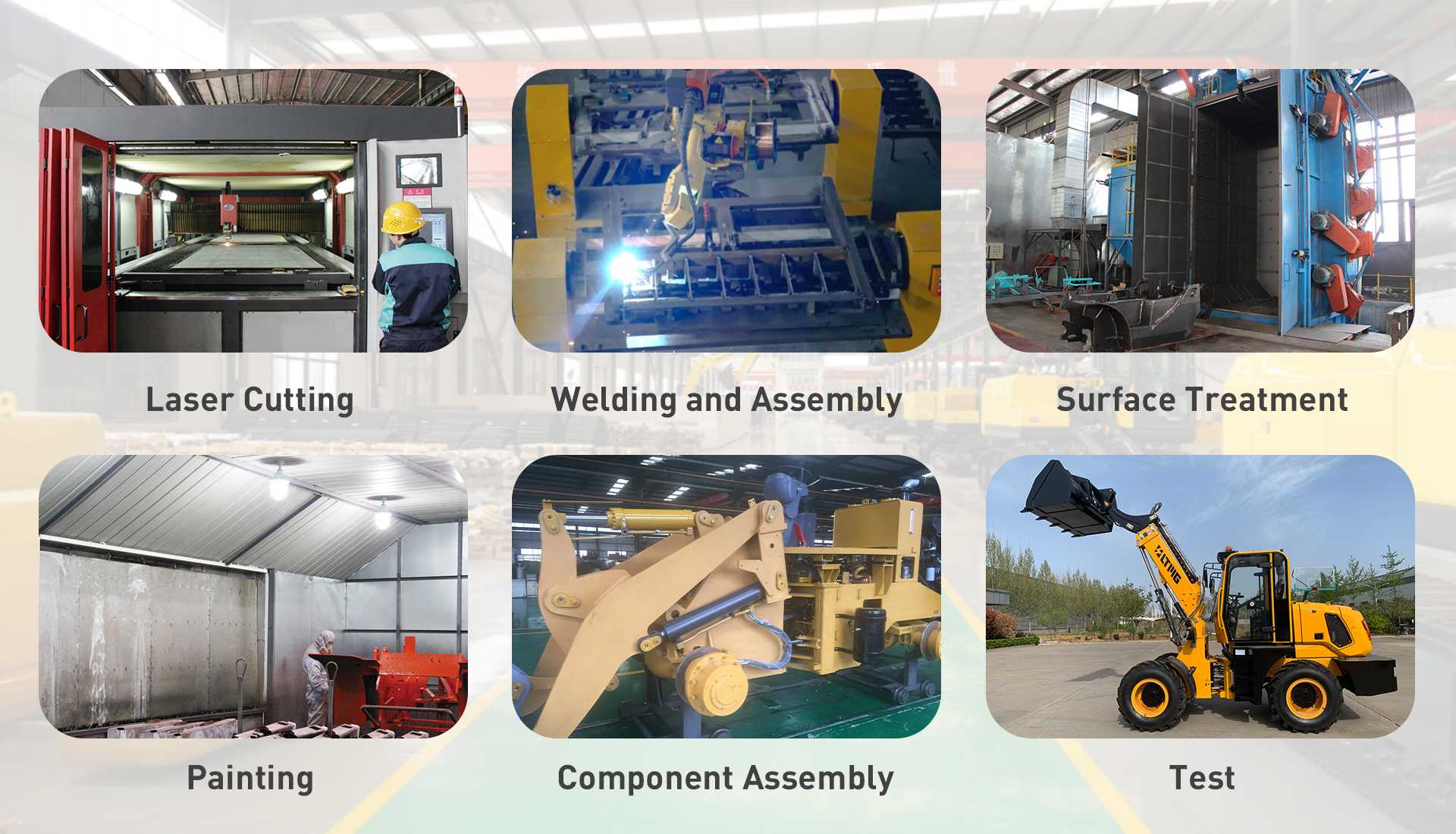

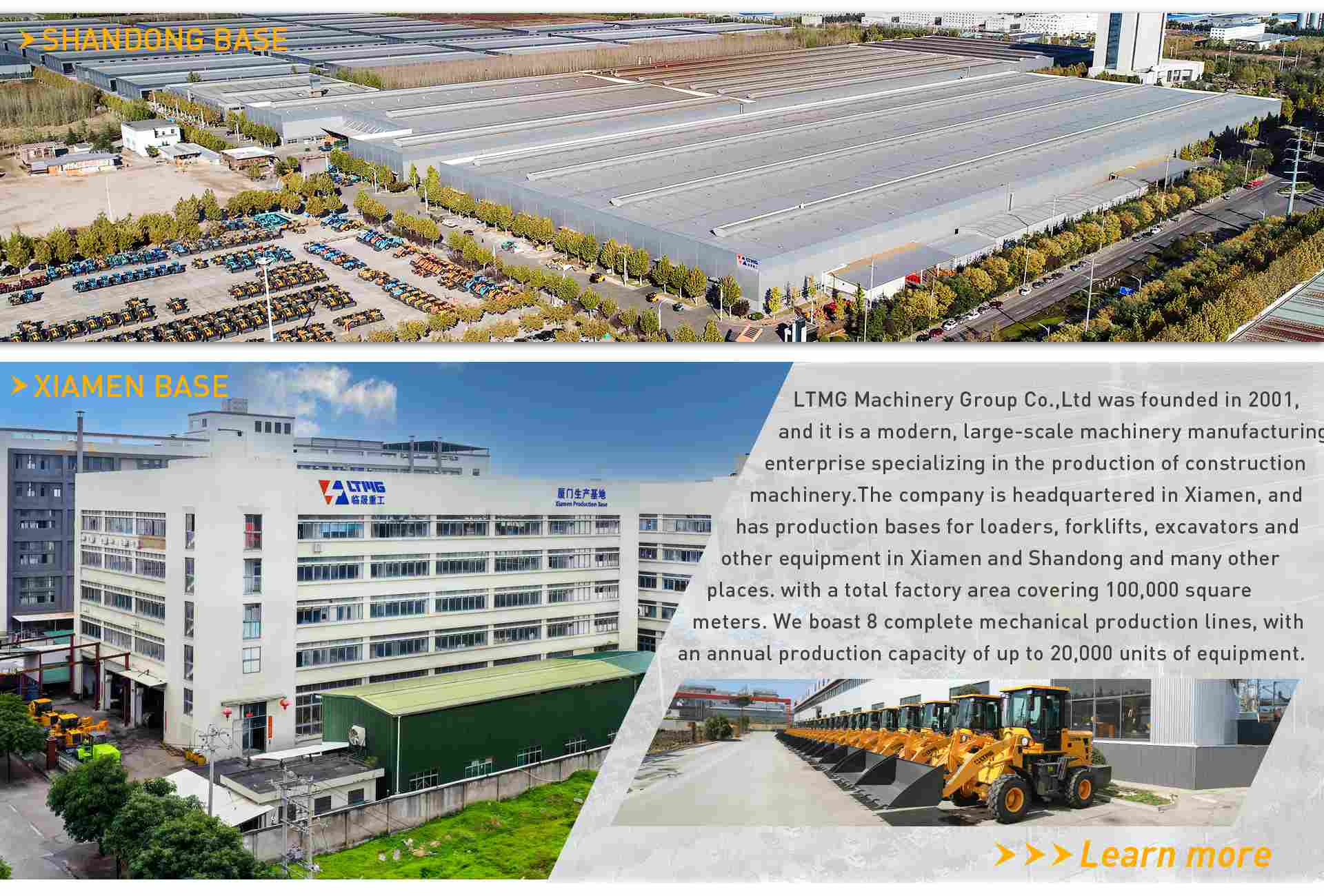

Telescopic Wheel Loader Factory
One Machine, Multiple Functions
