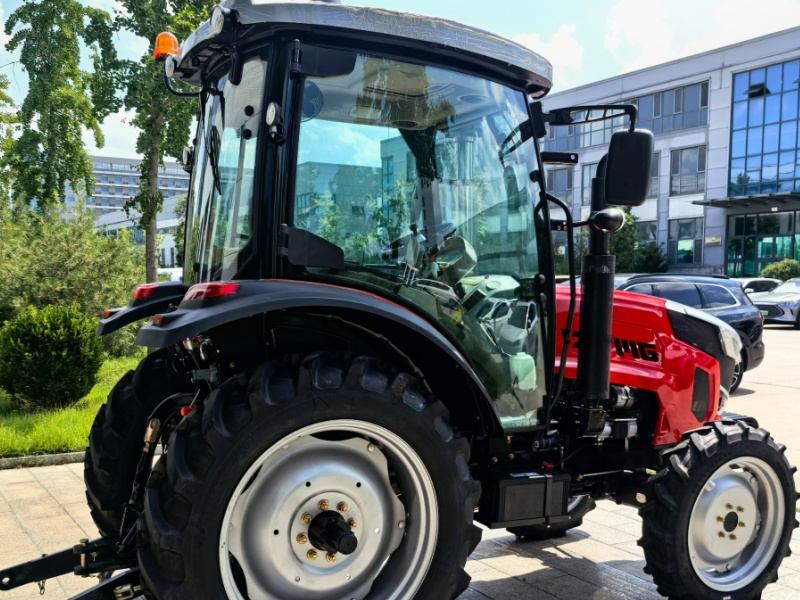

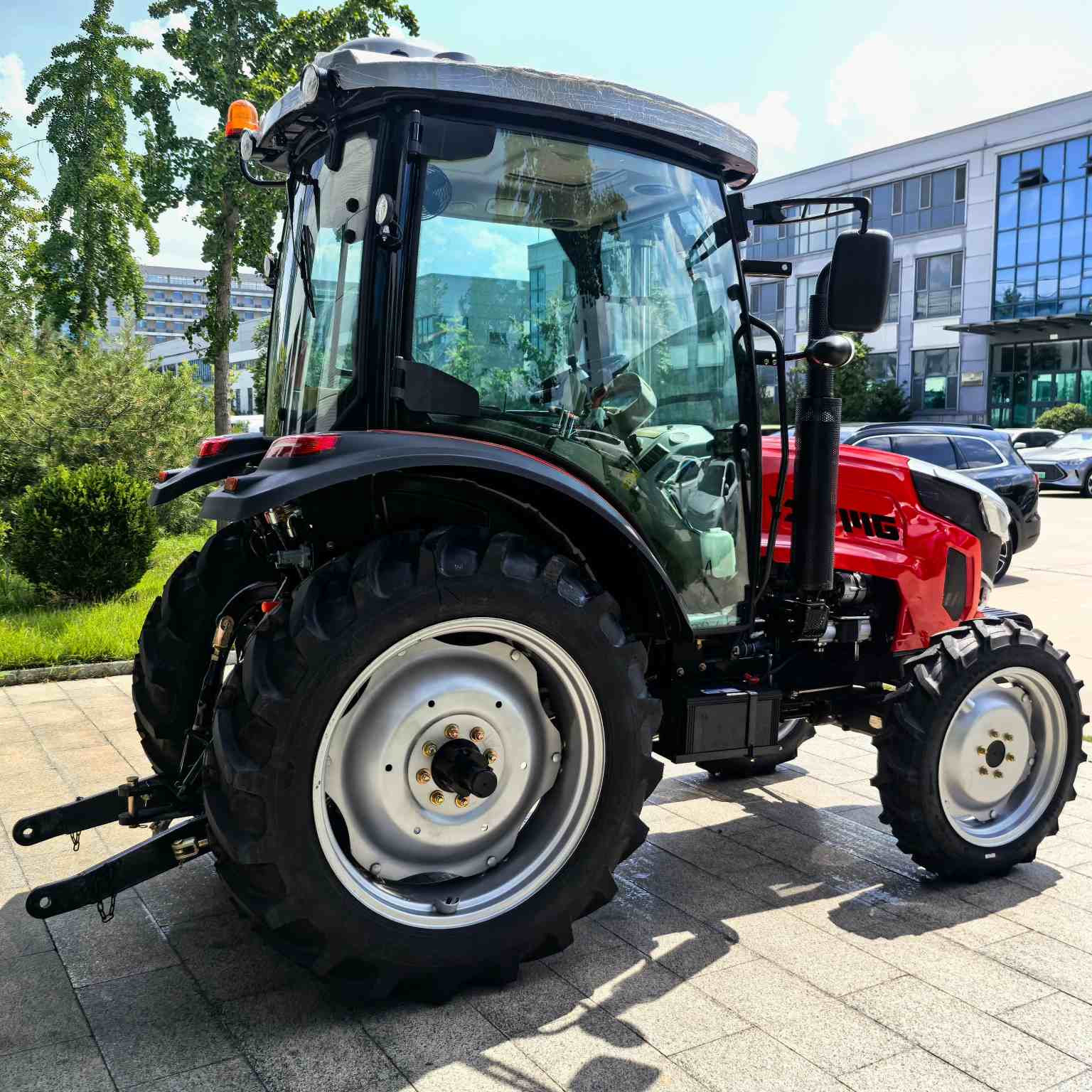

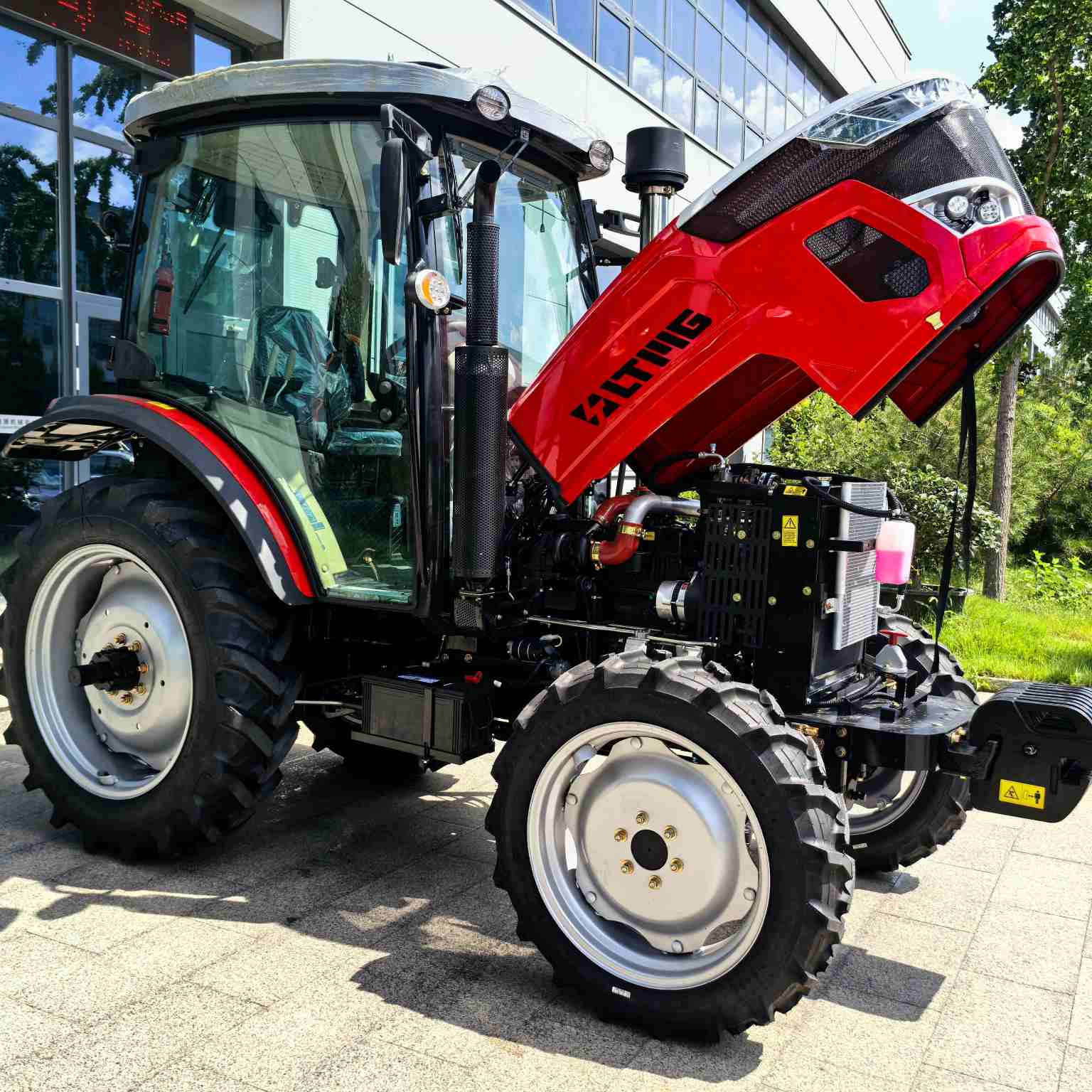

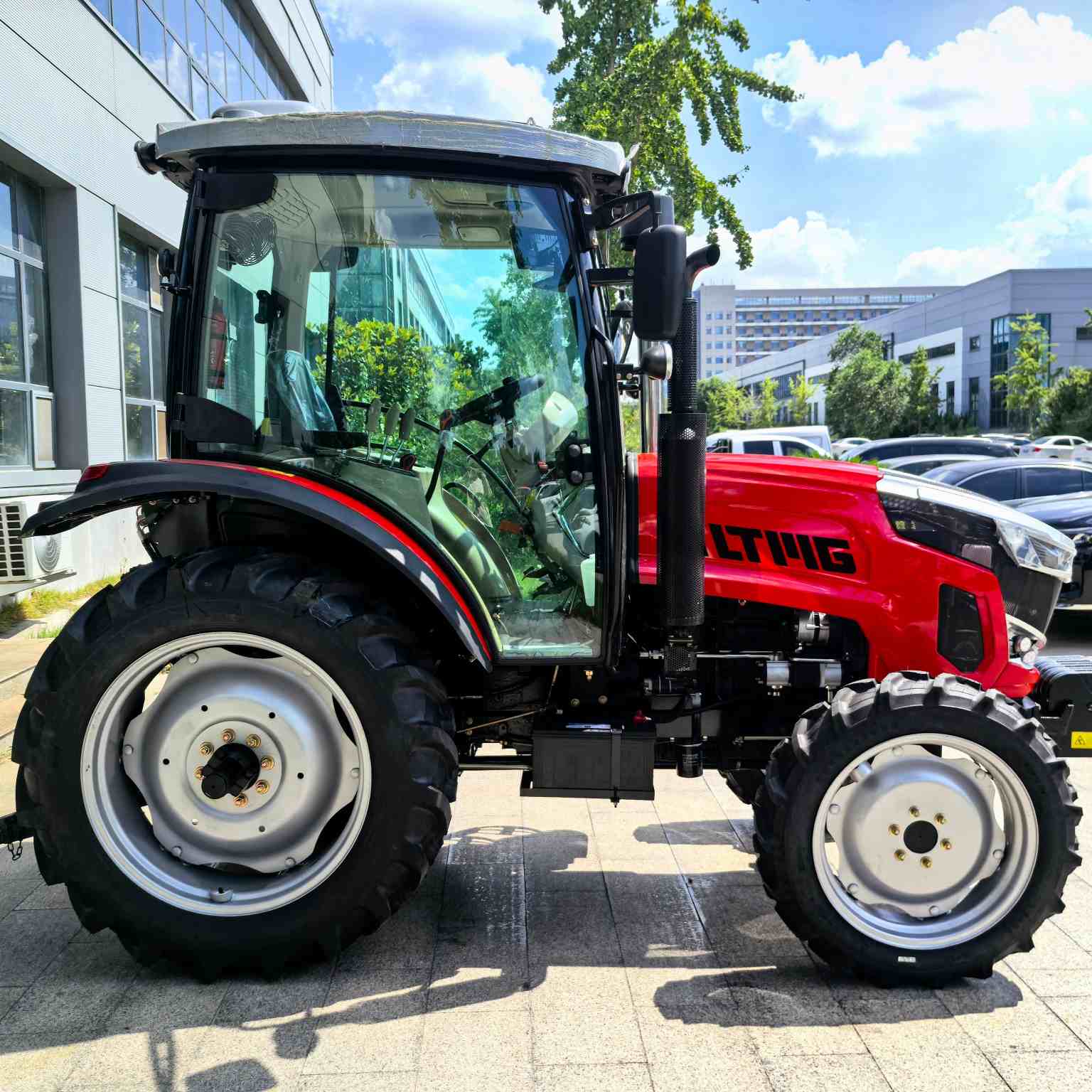

Built to tackle the toughest fields, the LTB904 tractor features a reinforced chassis and a 12F+12R shuttle shifter for seamless control and enduring versatility. Operators will appreciate the superior stability and smooth ride, with customizable options like a roll cage, sunshade, or A/C cab to ensure comfort in any environment.
Model :
LTB904Engine :
Yangdong China Emission Stage IIPower :
90HPODM/OEM :
Support
LTB904 Wheel Tractor Technical Parameters
|
Model |
LTB904 |
|
Tractor Power |
90hp |
|
Chassis Type |
TB |
|
Drive method |
4WD |
|
Overall dimension（L*W*H）mm |
4050×1830×2660 |
|
Wheel tread (mm) |
1300-1400 |
|
Wheel base (mm) |
2110 |
|
Min Ground clearance (mm) |
390 |
|
Min service weight (kgs) |
3020 |
|
Diese engine |
Yangdong China Emission Stage II |
|
Type |
inline, direct injection, water-cooled |
|
Intake method |
turbocharged |
|
Engine power |
66.15kW/2400rpm |
|
Fuel |
diesel |
|
Fuel tank capacity (L) |
70L |
|
Suspension type |
three-point linkage, CAT II |
|
Hydraulic output |
Two groups of hydraulic; Options: 3 groups |
|
Max traction power |
≥22.1kN |
|
Max lifting power |
≥16kN |
|
Rear PTO speed |
540/1000rpm |
|
PTO splines |
6 |
|
Steering |
hydraulic steering |
|
Transmission |
gearshift 12F+12R |
|
Clutch |
Dry type, double-acting, synchronizer shifting |
|
Brake |
oil-immersed |
|
Tire size |
Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
|
Theoretical speed |
Forward: 2.46-32.73km/h; Reverse: 2.15-28.69km/h |
|
Options |
ROP, canopy, cabin with air conditioner, air compressor |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.

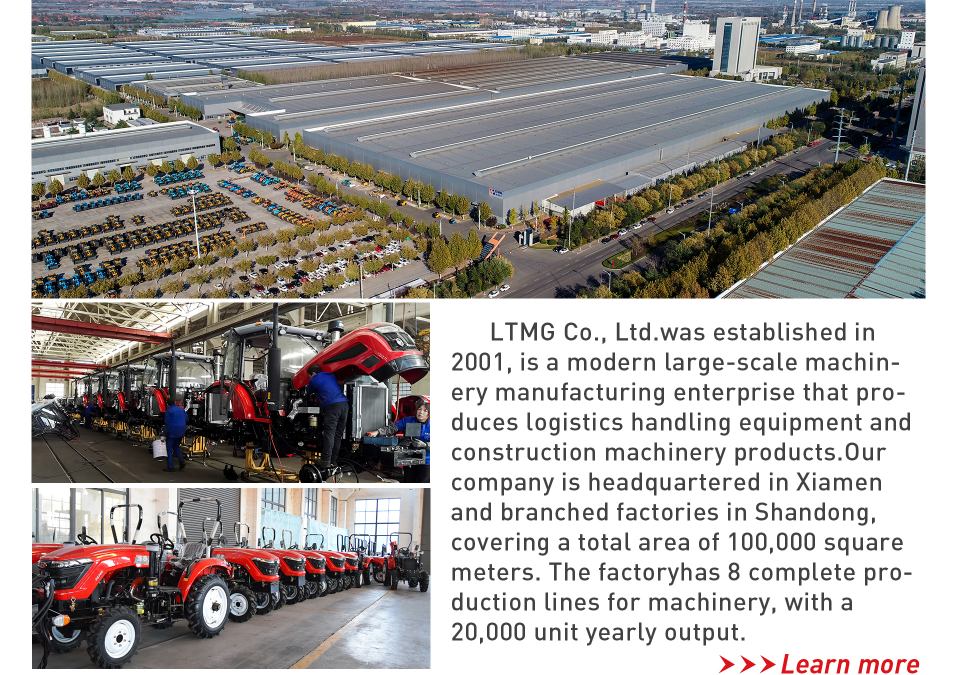

Dependable Manufacturing & Transport

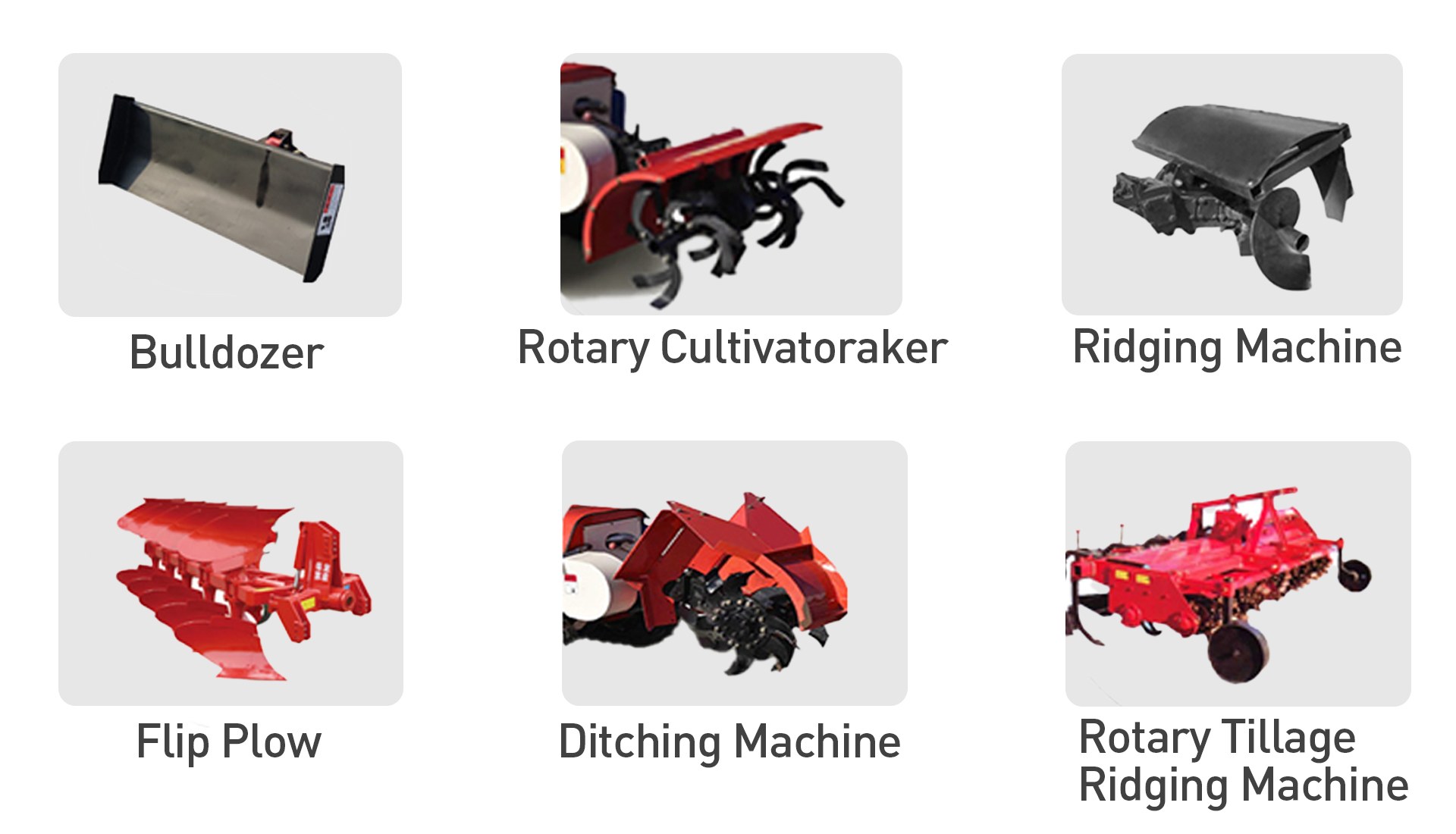

Tractor with Versatile Attachments
FAQ
Q: What are the fuel types and consumption rates?
A: Our tractors primarily use diesel engines, designed for high efficiency and fuel economy, suitable for long working hours.
Q: Do you provide tractors with air-conditioned or enclosed cabs?
A: Yes, optional features include air-conditioned or enclosed cabs, roll cages, and sunshades for enhanced operator comfort.
Q: Are the tractors suitable for different terrains, such as hilly or paddy fields?
A: Yes, our tractors are designed for versatile use, including flat fields, paddy fields, orchards, hilly areas, and rugged terrain.
Q: Are the tractors suitable for different terrains, such as hilly or paddy fields?
A: Yes, our tractors are designed for versatile use, including flat fields, paddy fields, orchards, hilly areas, and rugged terrain.
