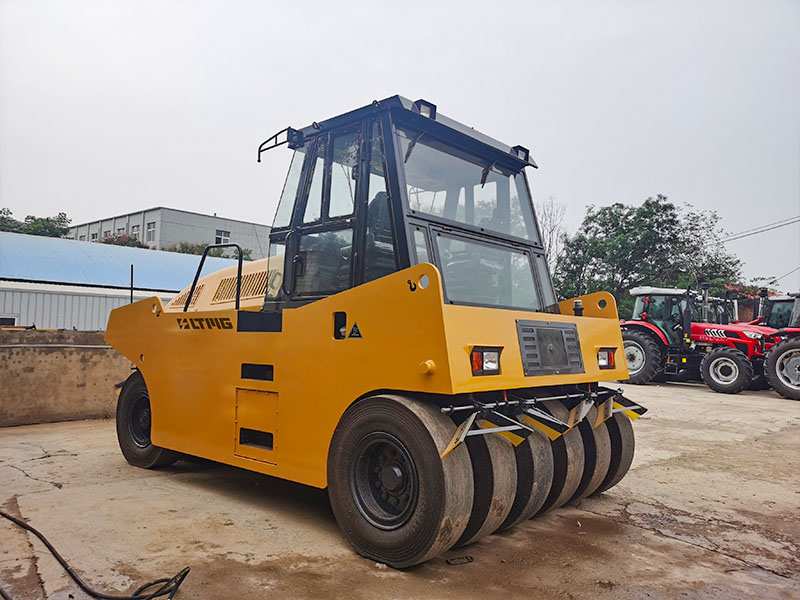

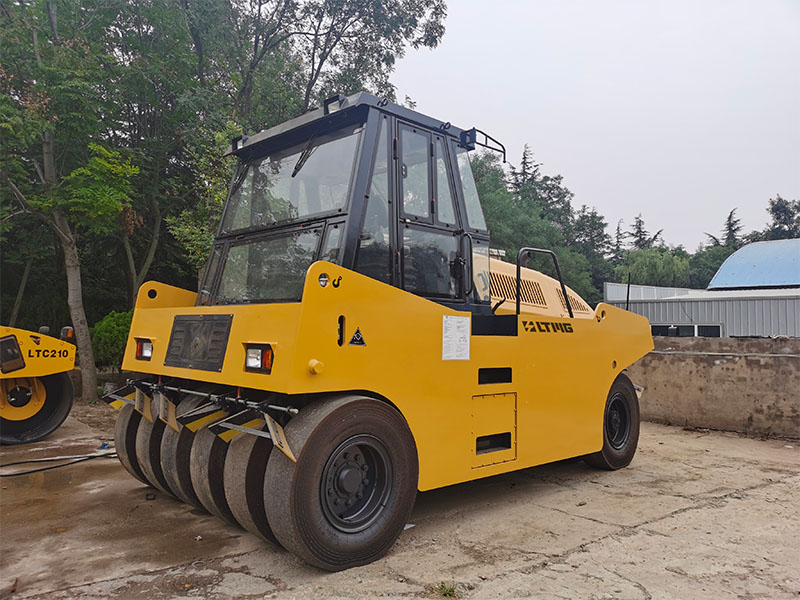

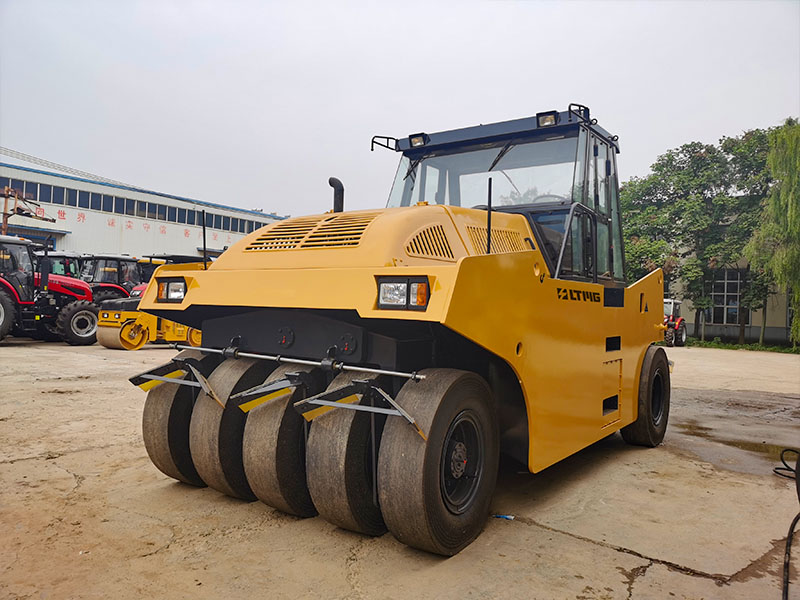

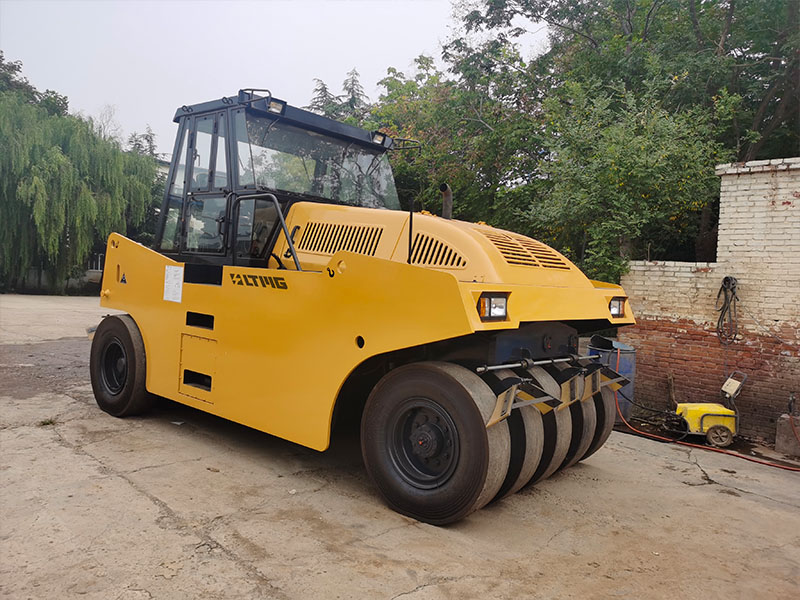

30 Ton Static Compactor's drive hydraulics are Sauer Danfoss or REXROTH, and the engine is a Cummins 6BTA5.9 diesel for stable and reliable performance. Equipped with treaded tires with adjustable inflation pressure.
Model :
LTC20/30Operating Weight :
20000/30000KGPower :
125KWCompaction Width :
2790MMODM/OEM :
SUPPORT
1. Equipped with Cummins 6BTA5.9 diesel engine, high reliability, good fuel economy and low noise.
2.30 Ton Static Pneumatic tired Roller adopts hydrostatic drive and stepless speed change, which makes the roller with automatic adaptability and improves the transmission stability during compaction.
2. Double circuit braking technology, good braking effect, fast response speed, short braking distance, high reliability.
3. The whole machine adopts box-type integral frame with scientific and reasonable body design, which is convenient for the maintenance and curing of each part.
30 Ton Static Pneumatic tired Roller Parameter
|
Model |
|
LTP2030H |
|
Operating mass(unballast/ballast) |
kg |
20000/30000 |
|
Max.travel speed |
Km/h |
10 |
|
Tyre quantity(front +back ) |
/ |
5+6 |
|
Min. Turning radius |
mm |
8000 |
|
The presses width |
mm |
2790 |
|
Grade ability |
% |
30 |
|
wheelbase |
mm |
3800 |
|
Overall dimension |
mm |
4950*2750*3240 |
|
Diesel power |
kw |
125 |
|
Diesel model |
|
Cummins 4BTA5.9 |
