With 220 horsepower as the core, it can easily meet the needs of efficient operations. With an efficient and stable hydraulic system and advanced steering technology, the operation is both flexible and precise, and the steering is convenient and easy to use. The ergonomic cab provides a comfortable experience and offers a wide field of vision, while the high-strength frame ensures the durability and stability required for all-terrain operations. The multi-functional device is suitable for bulldozing, leveling, excavation, and other working conditions, making it an ideal choice for efficient operations.
Model :
TL220Operating Weight :
15500KGPower :
220HPODM/OEM :
Suooprt

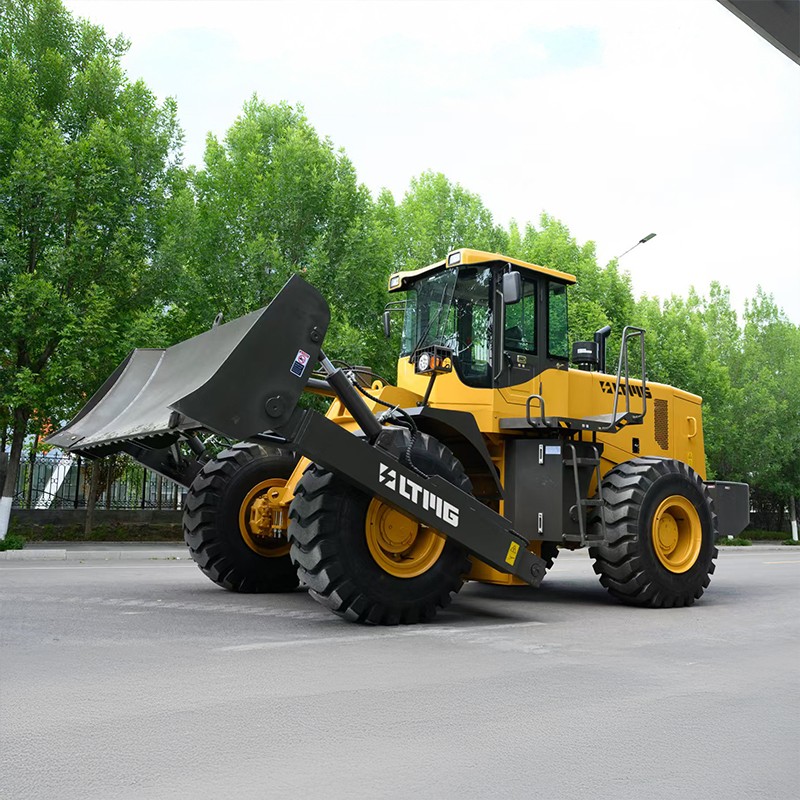

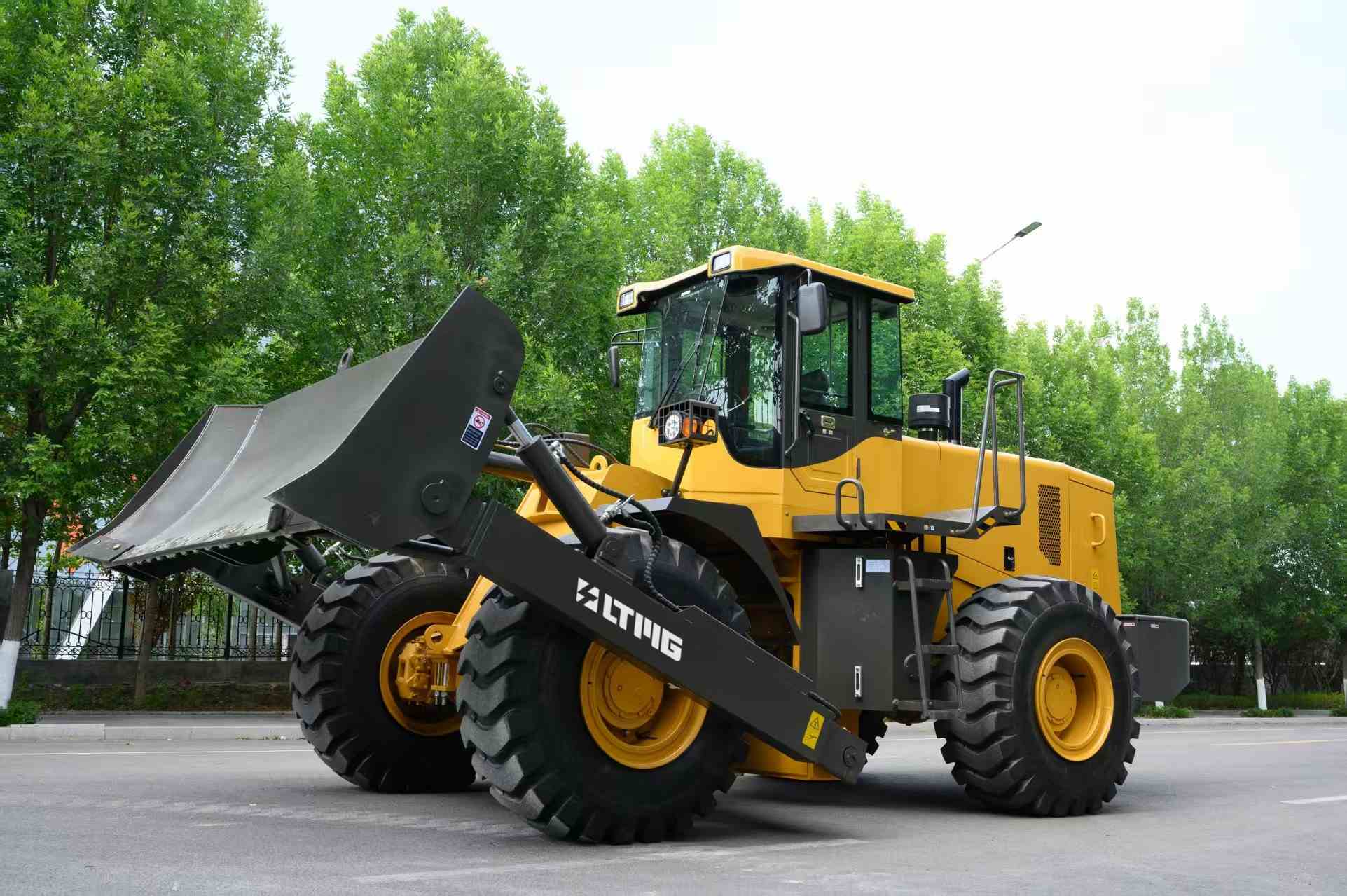

220 HP Heavy Duty Wheel Bulldozer
220 HP Heavy Duty Wheel Bulldozer Specification
|
Parameter Name |
Value |
|
Overall Dimension (mm) |
7100*3600*3450 |
|
Wheelbase (mm) |
3200 |
|
Wheel track (mm) |
2240 |
|
Height of shovel blade (mm) |
1000 |
|
Weight of complete machine (t) |
15.5 |
|
Maximum lift height of the dozer blade |
1060 |
|
Maximum down depth of dozer blade (mm) |
400 |
|
Blade width |
3600mm |
|
Gradability (°) |
25 |
|
Model of the engine |
STEYR WD10G220E22 |
|
Pattern |
Turbocharger, vertical, water-cooled, 4-stroke, direct injection |
|
Rated power |
162kW |
|
Specified rotational speed |
2100r/min |
|
Max. torque |
860N.m |
|
Min. fuel consuming rate |
126g/kWh.h |
|
Total displacement |
9.726L |
|
Fuel |
0# or 10# diesel oil |
|
Model of torque device |
HANGZHOU ADVANCE |
|
Pattern |
3-element, single-stage triple element |
|
Transmission type |
Full-powershift, countershaft type |
|
Number of gear positions |
2 forward, 1 reverse |
|
Max. travel speed |
40km/h |
|
Axle |
Feicheng/Hualu |
|
Main reducer type |
Arc taper gear, model reduction of first grade |
|
Pattern of wheelside moderation |
Single-stage planetary |
|
Tire size |
23.5-25 |
|
Pattern |
Full hydraulic steering system |
|
Min. turning radius (outside of bucket) |
7268mm |
|
Max. turning angle |
35° ±1 |
|
Implement the pump work model |
CBGJ2080/1010 |
|
Displacement |
250L/min |
|
System working pressure |
20.3MPa |
|
Distribution device model |
DF32 |
|
Pilot valve model |
DJ5 |
|
Brake system |
Air-assisted oil disc on four wheels |
|
Parking brake |
Air cutting control inner expand hoof |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
