LTMG 100 HP road grader is mainly used for large-scale ground leveling, trenching, scraping, bulldozing, and loosening of highways, airports, and farmland. It is an essential construction machinery for mine construction and other building construction, water conservancy construction, and farmland improvement.
Model :
LG100Power :
100HPWeight :
7000KGBlade Width :
3084MMODM/OEM :
SUPPORT
100 HP road grader main feature
1. 100 hp road grader adpots articulated frame the turning radius is small, and the steering of the front wheels is flexible.
2.The electro-hydraulic controlled powershift transmission has 6 forward gears and 3 reverse gears.
3.The supporting hydraulic parts are adopted, and the work is reliable.
4.The rear axle is a three-section drive axle with a self-locking differential.
100 HP road grader parameter
| Basic Parameters | Engine Model | 4BT3.9-C75(102hp) | |
| Rated power/speed | 75kW/2400rpm | ||
| Overall dimension（standard） | 6880×2375×3150mm | ||
| Total weight（standard） | 7000kg | ||
| Performance Parameters | Forward velocity | 5、8、11、17、24、38Km/h | |
| Reverse speed | 5、11、24km/h | ||
| Tractive effortf=0.8 | 41.6kN | ||
| Max. Gradeability | 30% | ||
| Tire Inflation Pressure | 350kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working Parameters | Max. Steering Angle for Front Wheel | ±49° | |
| Max. Decline Angle for Front Wheel | ±17° | ||
| Max. Swing Angle for Front Wheel | ±15° | ||
| Max. Classis Steering Angle | ±27° | ||
| Min. Turning Radius | 5.9m | ||
| Blade | Max. Raising Height | 300mm | |
| Max. Blade Cutting Depth | 350mm | ||
| Max. Sloping Angle for Blade | 45° | ||
| Cutting Angle | 28° — 70° | ||
| Swing Angle | 120° | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

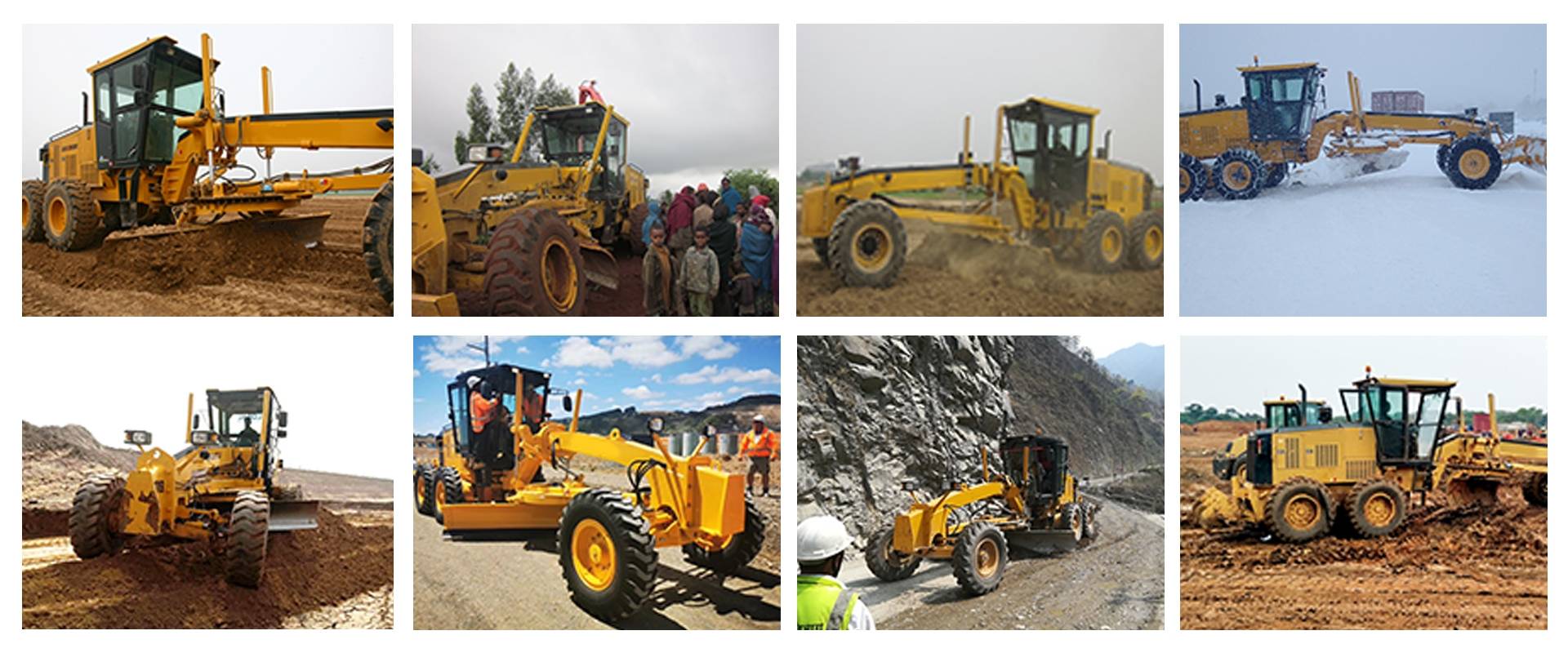

LTMG road grader application
