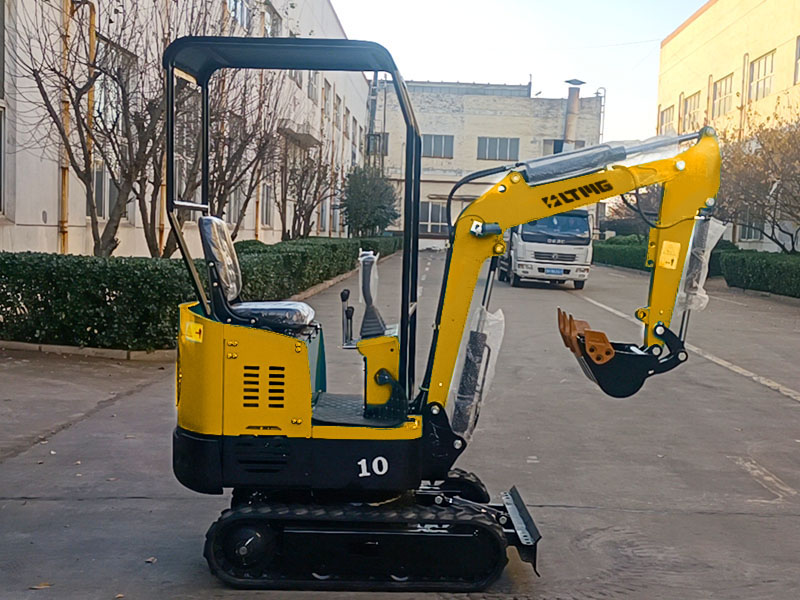

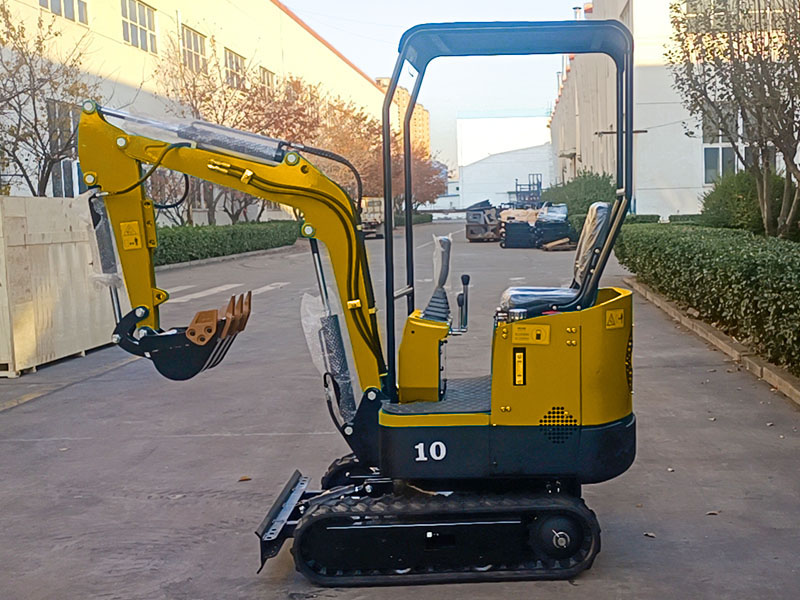

1 ton electric excavator with emission-free electric engines are perfect for efficiently and securely completing any indoor excavation tasks, Their compact size makes them ideal for such projects.
Model :
LTB10Operating Weight :
950Bucket Capacity :
0.025m³ODM/OEM :
SUPPORT
1.Cost-effective as it has lower operating costs, is more efficient, and requires minimal maintenance compared to combustion engine-powered excavators.
2.Equipped with a 72v/135ah ternary lithium battery, it boasts a battery life of up to 15 hours. Charging the battery takes only 8 hours, and with fast charging, it can be fully charged in just 4 hours.
3.It is versatile and can perform various tasks easily due to its compact and lightweight design.
4.The electric motor produces less noise, making it an ideal choice for projects in noise-sensitive areas.
5.It is easy to operate and requires minimal training, and comes with a variety of attachments that can enhance the efficiency of the machine for tasks like digging, demolition, and landscaping.
1 Ton Mini Excavator Parameters
| Performance Parameters | Unit | LTB10 |
| Engine Model | kg | 950 |
| Bucket Capacity | m³ | 0.025 |
| Power Mode | Lithium battery | |
| Lithium Battery Capacity | V/Ah | 72V/48V/135Ah |
| Battery Weight | kg | 100 |
| Operating Hours | H | ＞15H |
| Whether to Support Fast Charge | sopport | |
| Full Charge Time | H | 8H/4H/1H |
| Motor Power | KW | 4 |
| Driving Speed | km/h | 0-6 |
| Power Consumption per Hour | About 1 kWh per hour | |
| Decibels Within 1 Meter | dBA | ＜60 |
| Operating Range | ||
| Max. Digging Radius | mm | 2400 |
| Max. Digging Depth | mm | 1650 |
| Max. Digging Height | mm | 2490 |
| Max. Dumping Height | mm | 1750 |
| Min. Gyration Radius | mm | 1400 |
| Max.Lifting Height of Dozer Blade | mm | 325 |
| Max. Lifting Depth of Dozer Blade | mm | 175 |
| Overall Dimensions | ||
| Overall Length | mm | 2550 |
| Overall Height | mm | 1330 |
| Wheel Base | mm | 770 |
| Track Length | mm | 1090 |
| Platform Ground Clearance | mm | 380 |
| Width of Track | mm | 180 |
| Width of Chassis | mm | 946 |
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
1 Ton Mini Electric Excavator FAQ
Q:How about the service life of 1 ton electric excavator?
A:The working time of the electric excavator can reach up to 15 hours, and it supports 4 hours of fast charging
Q:How long can I get free repair service?
A:1 year or 1200 hour working time, machine failure we provide free repair and parts service
Q:How long is the lead time?
A:It takes 7-10 days for normal goods and 15-30 days for customization.
Q:What is LTMG payment term of the 1 ton electric excavator?
A:T/T, L/C, O/A
Q:As a electirc excavator factory, what are the different advantages of LTMG?
A: LTMG has stricter control over the production process of the factory, and has expanded various deformation models of electric excavator. Compared with peer factories, LTMG has more complete product categories and more options.
