5-ton electric loader, equipped with three motors and a continuously variable transmission. This powerful machine is designed to tackle complex working conditions with ease, making it suitable for a wide range of applications. With its energy-efficient design, it not only reduces operating costs but also contributes to a cleaner and greener environment.
Model :
LT950EVLoad Capacity :
5tonsOperating Weight :
18500KGBucket Capacity :
3-4.5m³ODM/OEM :
Support
LT950EV Electric Drive Wheel Loader Parameters
| Model | LT950EV | |
| Rated load | 5500kg | |
| Bucket capacity | 3-4.5m³ | |
| Operating weight | 18500kg | |
| Rated power | 290kw | |
| Dumping height | 3600mm | |
| Dumping reach | 1240mm | |
| Wheel Base | 3350mm | |
| Track Base | 2250mm | |
| Maximum traction | 170kN | |
| Maximum Rising Power | 174kN | |
| Three Items and Time | 9.7s | |
| Lifting Time | 5.8s | |
| Descending Time | 3.5s | |
| Maximum climbing angle | 28° | |
| Steering angle | 40° | |
| Forward gear | 18/36Km/h | |
| Back gear | 18/36Km/h | |
| Overall dimensions（L*W*H） | 8660mmX2960mmX3520mm | |
| Drive Axle | Brand | Dry Bridge |
| Working Hydraulic System | Type | Double Pump Confluence |
| Operation Method | Pilot Control | |
| Steering Hydraulic System | Type | Flow Amplification |
| Braking System | Service Brake | Gas cap oil, clamp disc type |
| Hand Brake | Pneumatic control, clamp type | |
| Air Conditioning System | Type | Electric, heating, and cooling |
| Control System | System voltage | DC24V |
| Control System | Specification | 23.5-25 |
| Battery Life | General working conditions | 6~10h |
| Heavy load condition | 5~6h | |
| Charging Time | 240kW charging pile | 60min |
| Charging Pile Specifications | Optional Specifications | 240-360kW |
| Oil Filling | Antifreeze | 45L |
| Transaxle oil | 2X17L | |
| Hydraulic oil | 200 L | |
| Battery Motor | Unit | |
| Power Battery | Type | Lithium iron phosphate |
| Rated Capacity | 456Ah | |
| Store energy | 282kWh | |
| Voltage | 618V | |
| Protection class | IP67 | |
| Cooling method | liquid cooling | |
| Drive motor | Rated power | 2x100kw |
| Protection class | IP67 | |
| Cooling method | water cooling | |
| Ambient temperature | ’-40~55°C | |
| Altitude | 4500m | |
| Hydraulic motor | Rated power | 90kW |
| Protection class | IP67 | |
| Cooling Method | liquid cooling | |
| Ambient temperature | ‘-40~60°C | |
| Altitude | 4500m | |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Details of Electric Drive Wheel Front End Loader

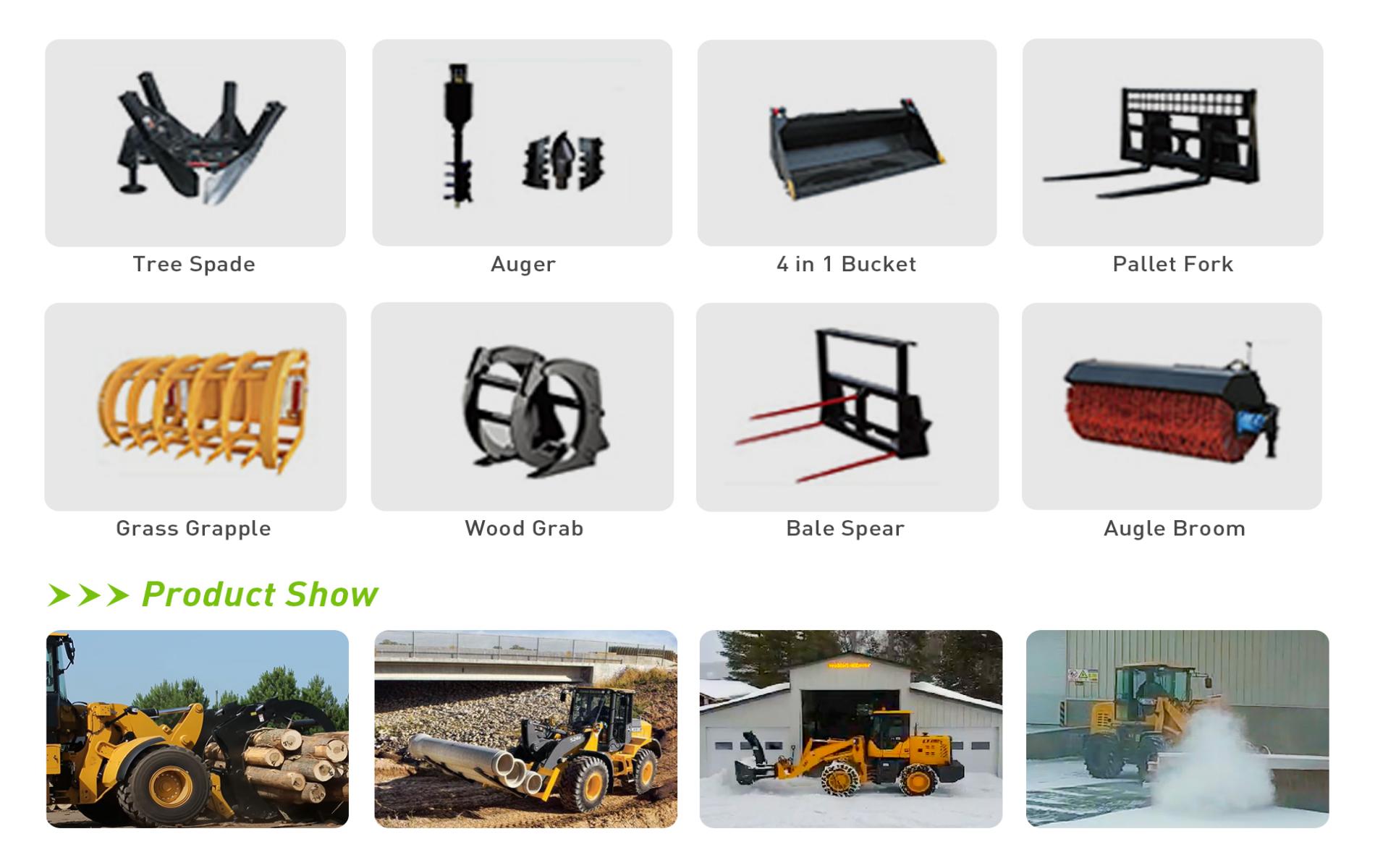

Multiple Work Environments
FAQ
Q: Are electric loaders more energy efficient than diesel loaders?
A: Yes. Electric loaders offer higher energy conversion efficiency and can recover energy through regenerative braking, reducing overall power consumption.
Q: Why are electric loaders more expensive?
A: While initial costs are higher, electric loaders save money long-term through lower electricity and maintenance costs, and greater durability.
Q: What attachments are compatible with electric loaders?
A: Electric loaders support various attachments like buckets, forks, pallet clamps, and augers. Custom attachments are also available based on job requirements.
Q: What battery does the LT950EV use?
A: It uses a 618V/456Ah lithium battery with high efficiency. Full charging takes 1.5–2 hours and offers better performance than traditional batteries.
Q: Do you provide OEM/ODM services?
A: Yes, we offer flexible OEM and ODM services tailored to meet different customer needs and project specifications.
