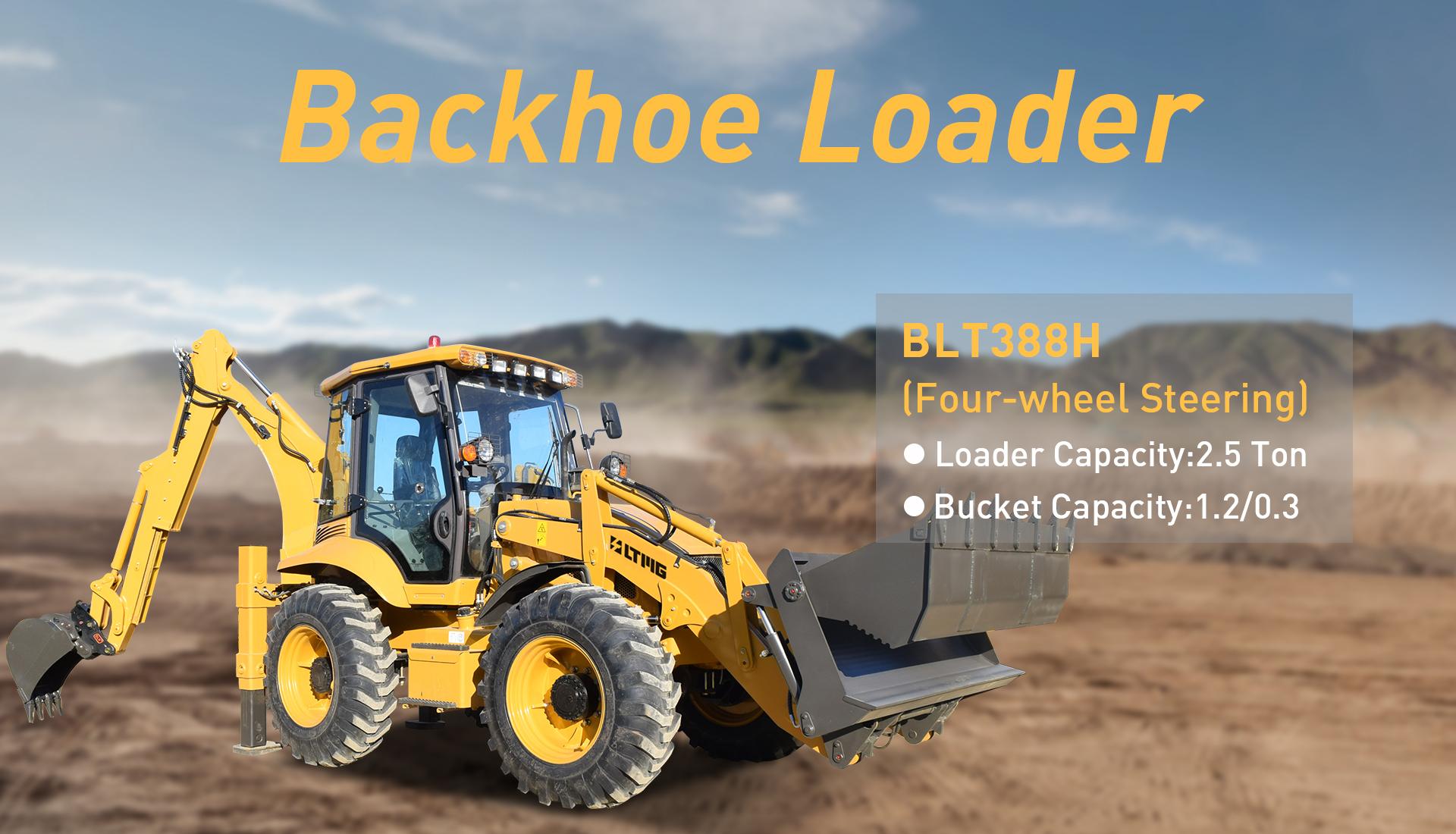

2.5 Ton Backhoe Loader with ROPS cabin

2.5 ton Backhoe Loader with H Leg 4 wheel steering, crab walk, equipped with ROPS&FOPS cabin is a versatile, efficient, and durable machine that can handle a wide range of construction and agricultural tasks.

Model :
BLT388H
Load Capacity :
2500kg
Operating Weight :
10050kg
Bucket Capacity :
1.2/0.3m³
ODM/OEM :
SUPPORT

Inquiry now

Share to :

Product Details

Maximum Uptime & Durability: Robust F4/R4 Synchromesh transmission and a 100% maintenance-free axle deliver superior productivity and long-lasting performance.
Enhanced Stability, Faster Cycles: Optimized weight distribution provides excellent driving stability, enabling faster travel and quicker turnaround times.
Boosted Digging Efficiency: Comes standard with a side-shift arm, wide visibility, and an expansive digging range to help you work faster and more precisely.
Fuel-Efficient Hydraulic Power: Our proprietary hydraulic system delivers maximum power with minimum fuel consumption, cutting your operating costs.
Smart Component Protection: Innovative cylinder pull-up design prevents costly damage from job-site knocks, keeping your backhoe loader working.

backhoe digger picture

2.5 Ton BLT388H Backhoe Loader Technical Parameters

Model	BLT388H
Total length bucket at ground	6450士80mm
Total width	2650士20mm
Bucket width	2620mm
Total height cab in the top	3120+10mm
Total height digging boom top	3940±20mm
Wheel base	2335+10 mm
Wheel tread	2139 10mm
Hydraulic torque	Model---315
convertor	Coolingway--Pressurized oil circle
Gearbox	Model---28 Type： Mechanically Operated/Hydraulic Synchronized
Driving axles	Model---WZL100
Gear shift	Forward 4 Backward 4
Tyres model	16.9-28
Rated digging bucket capacity	0.3m3
Max.Digging radius	3820±20 mm
Max.Digging depth	5345±20mm
Max.Loading height	3740±20mm
Max.Digging force	5100kgf
Max.Digging height	5470 ±20mm
Lifting force at Max.Digging radius	1220kg
Max. Digging depth with arm extended (telescopic arm)	4970±20 mm
Max. Digging height with arm extended (telescopic arm)	6680±20mm
Working pump displacement	63ml/r
Working pump pressure	20Mpa
Diverter model	BZZ5-250
Rod diameter (mm)	68-70
Working pressure (MPa)	11-14
Impact frequency	500-900
Flow scope( Umin)	25-45
kinetic energy (KN)	49
Engine model	YC4A105Z-T20
Cooling type	Water cooling
Rated power	75 (kW)
Displacement	4.8(L)
Rated speed	2200(r/min)
Max.Torque	400(N.M)
Manufacturer	YUCHAl
Hydraulic oil tank	125
Fuel tank	125

With technological innovation, our product configuration and parameters will continue to change without notice.

If there is any doubt, the specific confirmation of our international trade sales shall prevail.

Video of BLT388H Backhoe Loader

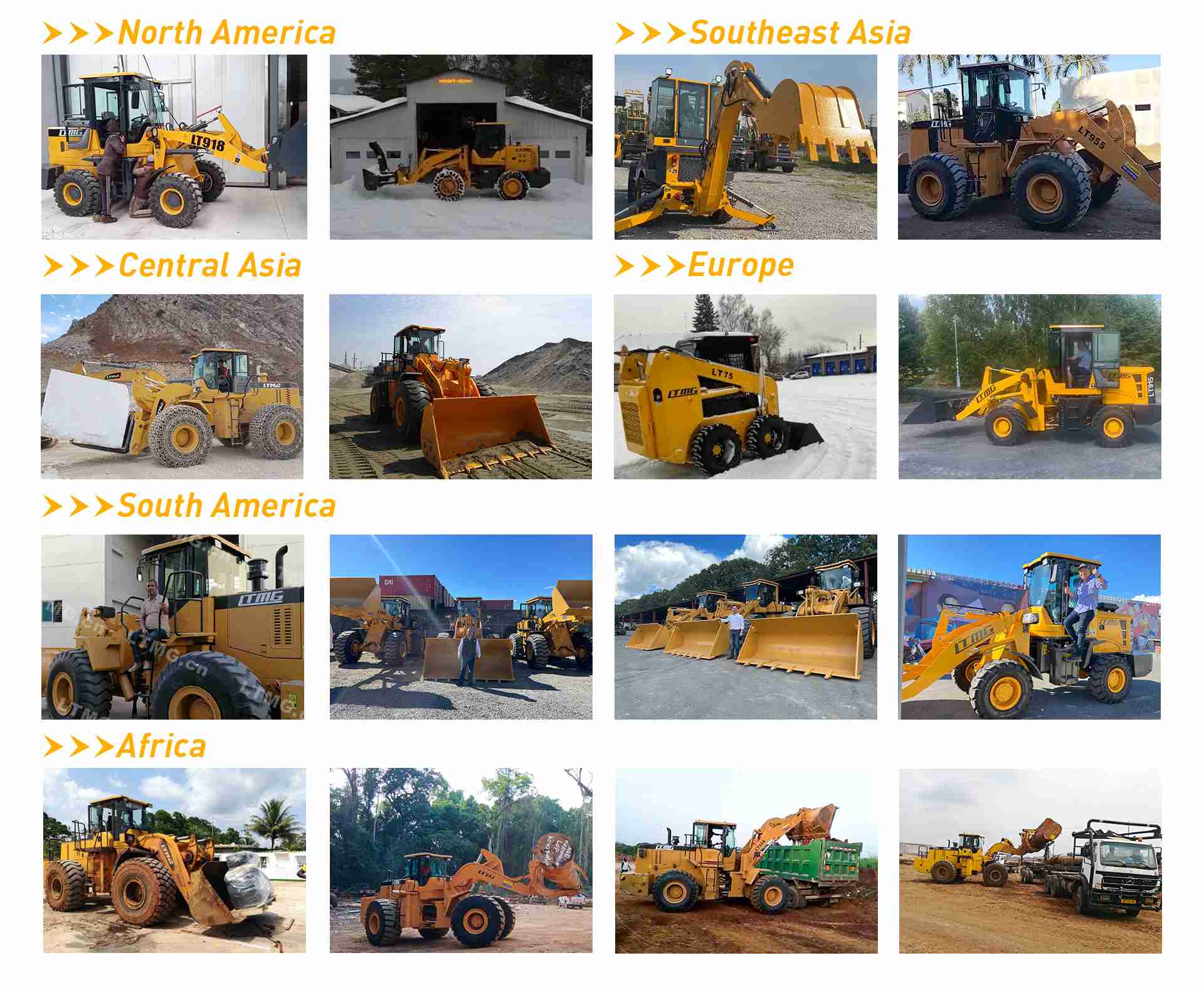

Customer Feedback on Backhoe Loader

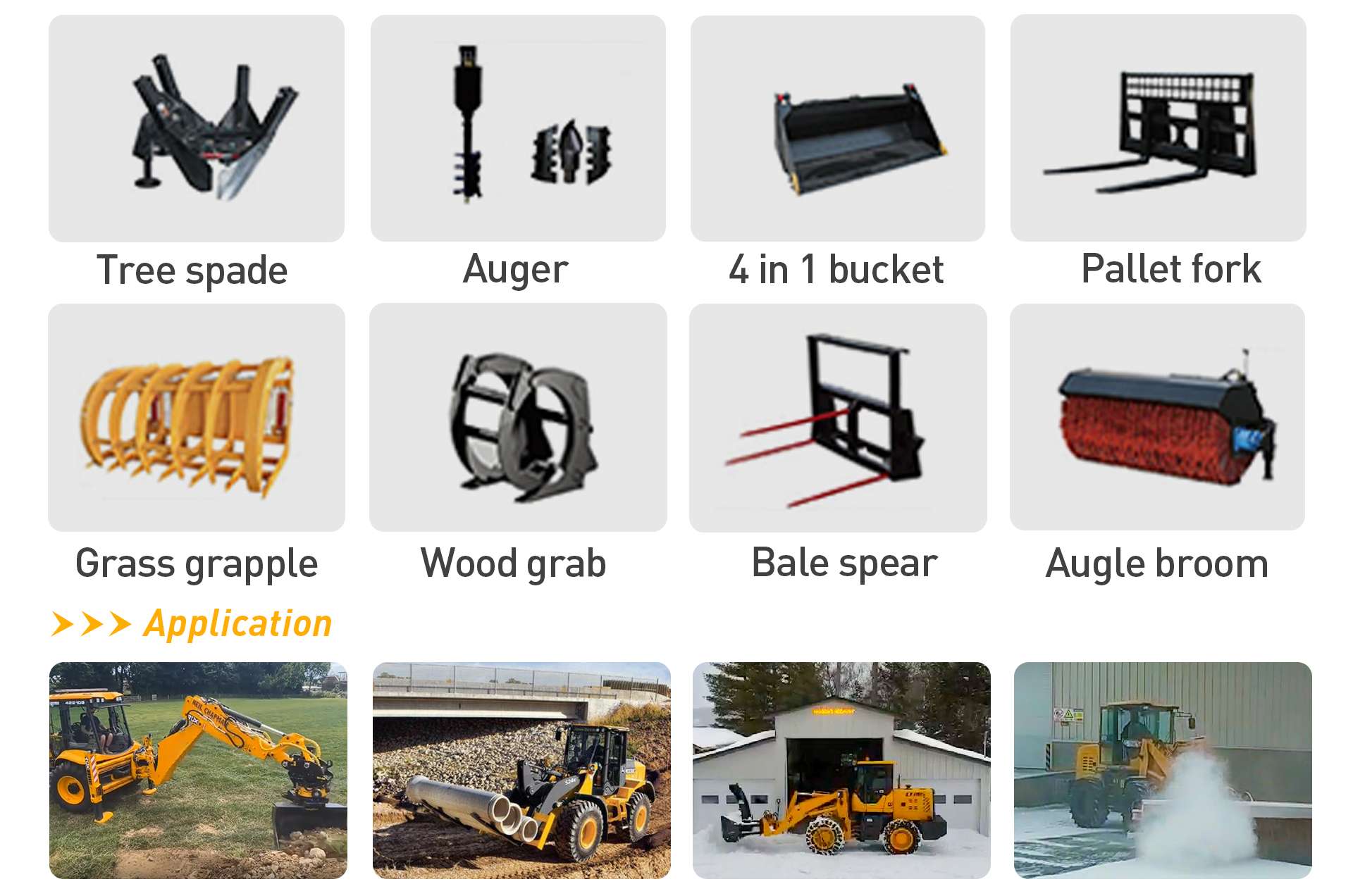

Backhoe loader applications

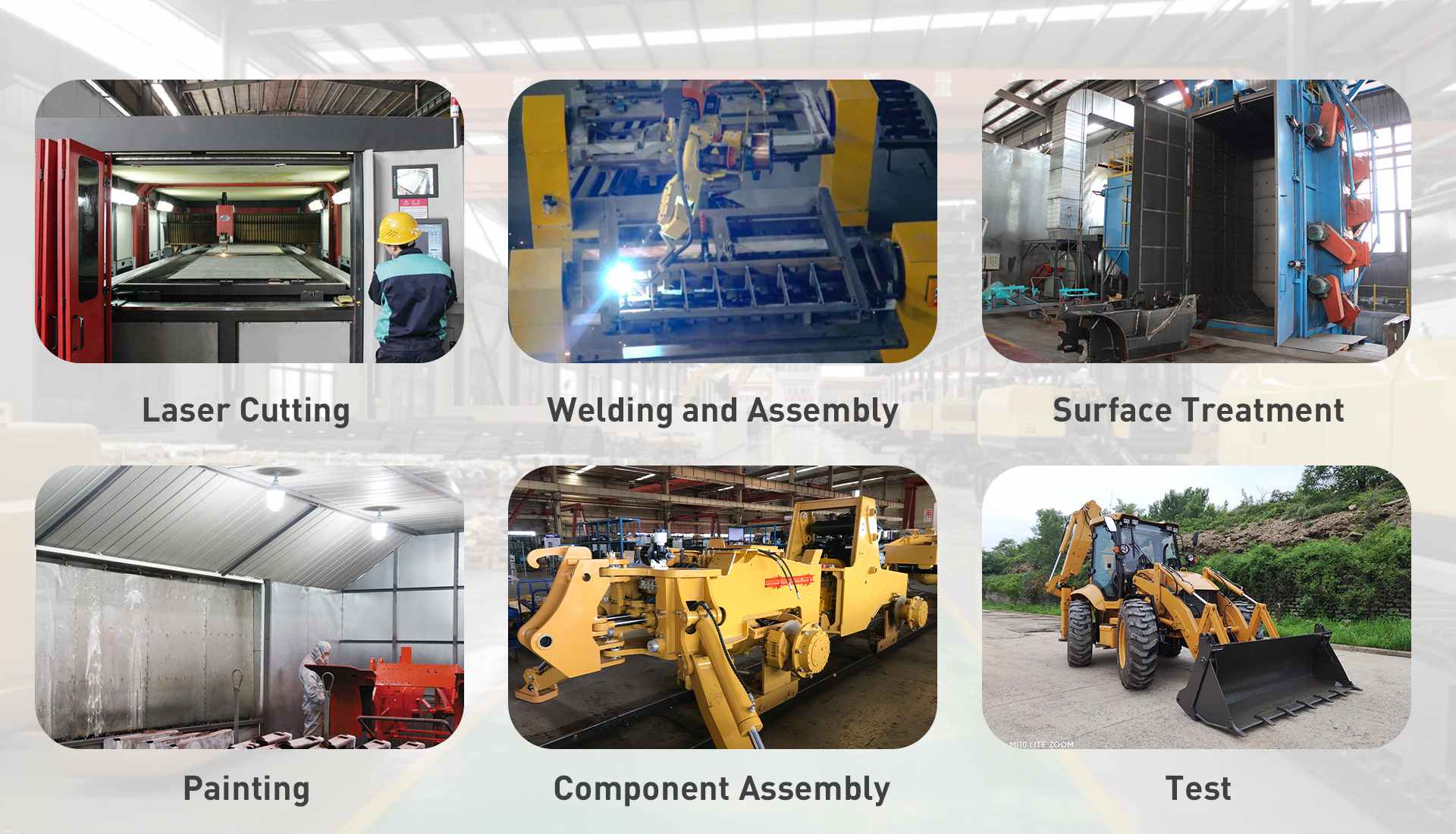

Reliable Manufacturing & Secure Delivery

FAQ

Q: What is the payment term for the wheel loader machine?

A: T/T, L/C

Q: Are you a manufacturer, trading company, or a third party?

A: We are a manufacturer, and we have built up our company since 2001, and we have been in the construction machinery and material handling equipment industry for 22 years.

Q: Is your price competitive?

A: Only good quality machines we supply. We will surely offer you the best factory price, based on our superior product and service.
