The 2-ton telescopic arm wheel loader offers the advantage of increased lift height and reach, allowing for more efficient loading and unloading in tight spaces. Additionally, its compact size and maneuverability make it suitable for use in a range of environments.
Model :
LT920TLoad Capacity :
2000KGOperating Weight :
5500KGBucket Capacity :
1m³ODM/OEM :
SUPPORT
2 Ton Telescopic Wheel Loader Main Features
2 Ton Telescopic Wheel Loader Technical Specifications
|
1.0 Engine |
|
|
Brand/Model: |
YUNNEI YN33GBZ |
|
Type |
In-line arrangement, water-cooled, four-cylinder, turbocharged diesel engine |
|
Rated Power |
65KW |
|
Optional Model |
CUMMINS 4BT3.9-C100 EURO5 55KW CHANGCHAI EPA4/EURO5 KOHLER EPA4 CUMMINS |
|
2.0 Overall Dimensions |
|
|
Overall Length |
6500mm |
|
Overall Width |
2000mm |
|
Overall Height |
2860mm |
|
Max. Discharge height |
4400mm |
|
Min. Discharge height |
3400mm |
|
Transmission SystemGearbox + Hydraulic converter + Drive shaft + Hub reduction axle |
|
|
Bucket |
|
|
Capacity |
1m³ |
|
Width |
2000mm |
|
Type |
Heavy-duty bolt-on teeth |
|
Max. Load |
2000kg, including bucket or attachment |
|
5.0 Operating Specifications |
|
|
Steering System: |
Articulated hydraulic steering |
|
Driving System |
Four Wheel Drive |
|
Hydraulic quick release |
Yes |
|
Mechanical pilot joystick |
Yes |
|
Steady rise |
Yes |
|
Brake System |
|
|
Service Brake |
Four-wheel disc brake |
|
Parking Brake |
Disc brake |
|
Tyre |
|
|
Model |
16/70-20 Herringbone Tyre |
|
Size |
Width: 380mm Diameter: 1075mm |
|
Wheel base: 2550mm |
|
|
Track: 1600mm |
|
|
System pressure |
20Mpa |
|
Weight |
5500KG |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
The Video Of LT920T Telecopic Wheel Loader

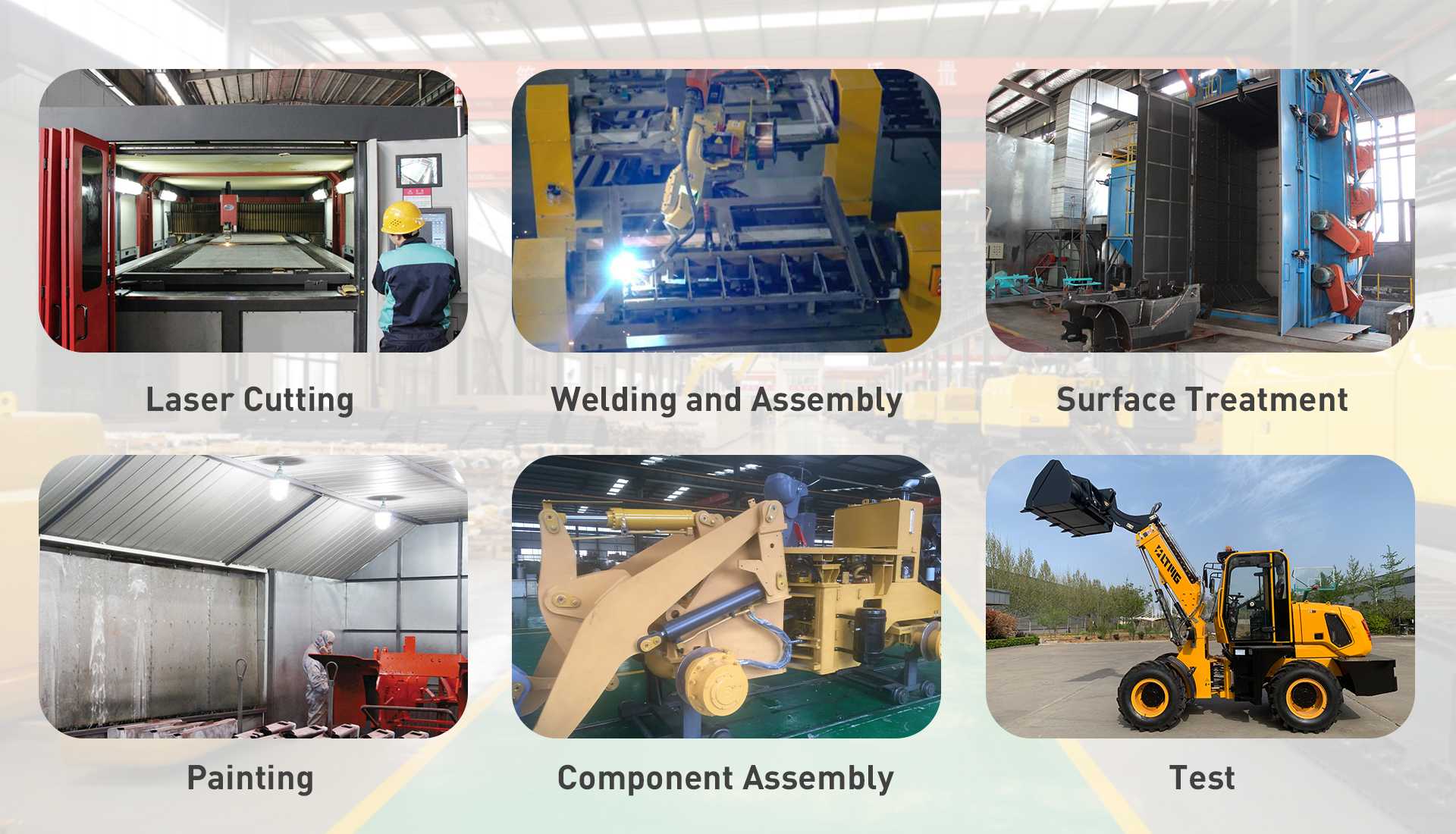

Quality You Can Rely On
FAQ About 2 Ton Telescopic Wheel Loader
1. What optional engines do you have for this telescopic loader?
76KW YUNNEI YN38GBZ ;EURO3 CUMMINS;EPA3 YANMAR;EURO5 CHANGCHAI/YUCHAI and EPA4 CUMMINS/HATZ
2. What Certificate do you have?
LTMG workshop meets with the ISO9001:2008 Quality System. All of our products have with CE certificate. Some of our products meet the EPA requirements.
3. How long is the warranty of your telescopic loader?
Normally, 1 year or 2000 working hours, whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally, 30% T/T in advance as a deposit, balance paid before shipment.100% L/C at sight issued by world world-famous bank with good faith is also available.
6. Delivery time
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
